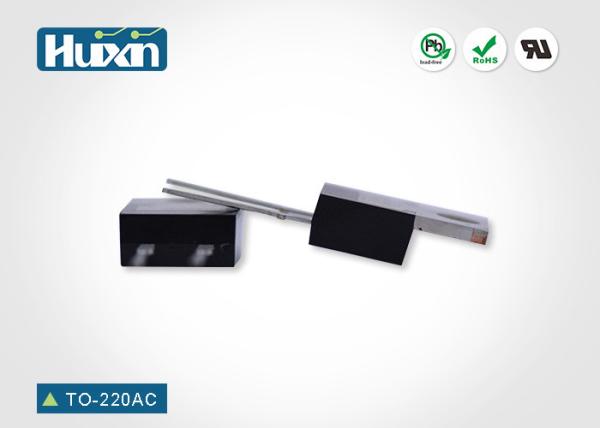

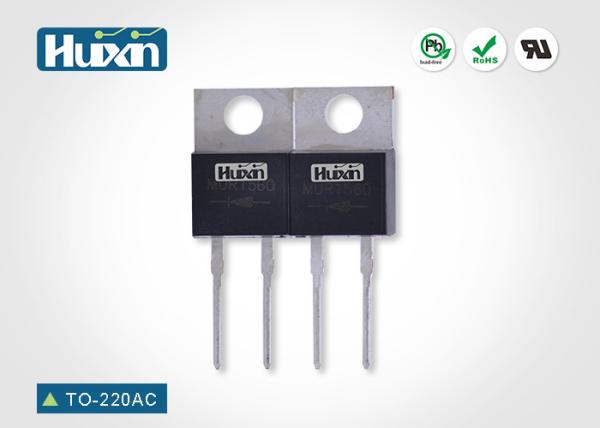

TO-220AC Super Fast Glass Passivated Rectifier 600V Low Reverse Leakage
TO-220AC Super Fast Glass Passivated Rectifier 600V Low Reverse Leakage
TO-220AC Super Fast Glass Passivated Rectifier 600V Low Reverse Leakage
TO-220AC Super Fast Glass Passivated Rectifier 600V Low Reverse Leakage
TO-220AC Super Fast Glass Passivated Rectifier 600V Low Reverse Leakage
TO-220AC Super Fast Glass Passivated Rectifier 600V Low Reverse Leakage
Specifications
Brand Name :
Huixin
Model Number :
MUR560 TO-220AC
Certification :
ISO14001 ISO9001 ISO/TS16949 UL
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
T/T, Paypal, Cash
Supply Ability :
1 billion pieces/ Month
Delivery Time :
2-4Weeks
Packaging Details :
1000pcs/reel/box
Type :
Super Fast Recovery 600V Diode
Package :
TO-220AC
Package Type :
Through Hole -2 Pin
MPQ :
1000PCS
Sample Time :
5-7 Days
Max. Forward Current :
5A
Max. Reverse Voltage :
600V
Application :
DC/DC converter, AC/DC power supply, PFC
Reverse Voltage :
200 -600 Volts
Forward Current :
5.0Amperes
Maximum Reverse Recovery Time :
35ns
VF :
1.7 Volts
Description

TO-220AC Glass Passivated 600V Super Fast Rectifier

TO-220AC Super Fast Glass Passivated Rectifier 600V Low Reverse Leakage

MUR520-MUR560 TO-220AC Datasheet.pdf

Features:

​

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • Construction utilizes void-free molded plastic technique
  • Low reverse leakage
  • High forward surge current capability
  • High temperature soldering guaranteed

Mechanical Data:

  • Case : Molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Polarity symbol marking on body
  • Mounting Position : Any

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter SYMBOLS

MUR520

 MUR540 MUR560 UNITS
Maximum Repetitive Peak Reverse Voltage VRRM

200

 400 600 Volts
Maximum RMS Voltage VRMS

140

 280 420 Volts
Maximum DC Blocking Voltage VDC

200

 400 600 Volts
Maximum Average Forward Rectifier Current at TL=100°C

IF(AV)

 5.0 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load

IFSM

 75 Amps
Maximum Instantaneous Forward Voltage at 10A(Note 1)

VF

 0.98 1.3 1.7 Volts
Maximum DC Reverse Current at rated DC blocking voltage(Note 1) TA=25°C

IR

 5 μA
TA=125°C 500
Maximum Reverse Recovery Time(Note 2)

Trr

 35 ns


Note: 1. Pulse test: 300 μs pulse width,1% duty cycle

2. Reverse recovery test conditions IF=0.5A,IR=1.0A, Irr=0.25A
