S3J 600 Voltage General Purpose Rectifier Diode For Electronic Products
S3J 600 Voltage General Purpose Rectifier Diode For Electronic Products
Specifications
Brand Name :
Huixin
Model Number :
S3J DO - 214AA (SMB)
Certification :
ISO14001 ISO9001 ISO/TS16949 UL
Place of Origin :
China
MOQ :
3000 PCS
Price :
Negotiable
Payment Terms :
T/T, Paypal, Cash
Supply Ability :
1 billion pieces/ Month
Delivery Time :
2-4Weeks
Packaging Details :
3000pcs/reel/box
Type :
Purpose Rectifier Diodes
Package :
SMB
Package Type :
Surface Mount Rectifier Diode
Sample Time :
5-7 Days
Max. Forward Current :
3A
Max. Reverse Voltage :
600V
Material :
Silicon
Lead Time :
2Weeks
Description

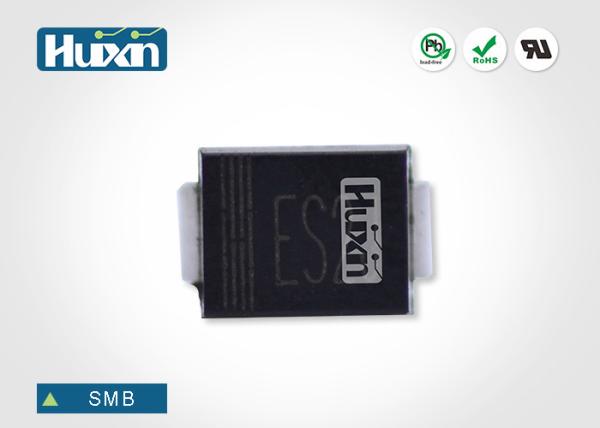

S3J 600 Voltage Purpose Rectifier Diodes For Electronic Products

S3A~S3M SMB Datasheet.pdf

Features:

​

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • Idea for printed circuit board
  • For surface mounted applications
  • Glass passivated Junction chip
  • Low reverse leakage
  • High forward surge current capability
  • High temperature soldering guaranteed

Mechanical Data:

  • Case : JEDEC DO-214AA Molded plastic body over passivated chip
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Color band denotes cathode end
  • Mounting Position : Any
  • Weight : 0.003 ounce, 0.093 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter

SYMBOLS

 S3A S3B S3D S3G S3J S3K S3M UNITS
Maximum Repetitive Peak Reverse Voltage

VRRM

 50 100 200 400 600 800 1000 Volts
Maximum RMS Voltage

VRMS

 35 70 140 280 420 560 700 Volts
Maximum DC Blocking Voltage

VDC

 50 100 200 400 600 800 1000 Volts
Maximum Average Forward Rectifier Current at TL=75°C IF(AV)

3

 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load IFSM

100

 Amps
Maximum Instantaneous Forward Voltage at 3A VF

1.15

 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C IR

10

 μA
TA=125°C

100


Note: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
