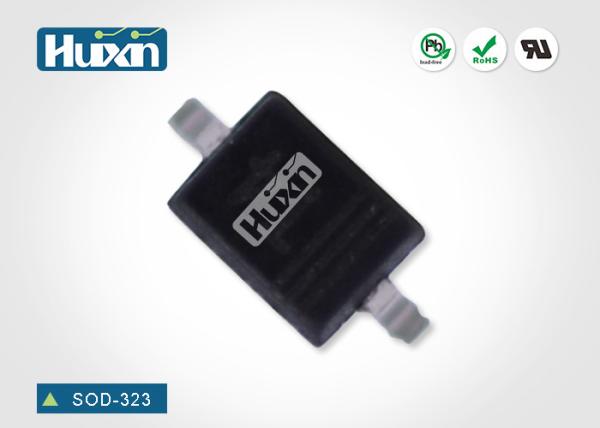

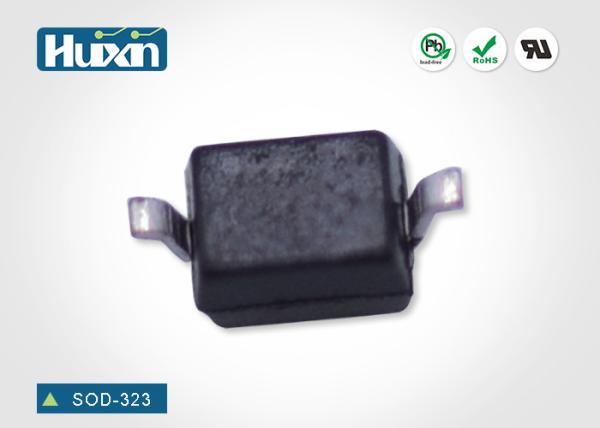

SMD Surface Mount High Voltage Switching Diode Silicon Epitaxial Planar
SMD Surface Mount High Voltage Switching Diode Silicon Epitaxial Planar
SMD Surface Mount High Voltage Switching Diode Silicon Epitaxial Planar
SMD Surface Mount High Voltage Switching Diode Silicon Epitaxial Planar
SMD Surface Mount High Voltage Switching Diode Silicon Epitaxial Planar
SMD Surface Mount High Voltage Switching Diode Silicon Epitaxial Planar
Specifications
Brand Name :
Huixin
Model Number :
BAV19WS SOD-323
Certification :
ISO14001 ISO9001 IATF16949 UL
Place of Origin :
China
MOQ :
3000
Payment Terms :
T/T, Paypal, Cash
Delivery Time :
2-4Weeks
Packaging Details :
3000pcs/ Reel in general
Price :
Negotiable
Supply Ability :
1 billion pieces/ Month
Type :
Switching Diode BAV19WS
Material :
Silicon
Package :
SOD-323 Type Diode
Package Type :
SMD Switching Diode
MPQ :
3000pcs
Sample Time :
5-7Days
Lead Time :
3-4Weeks
Applications :
For General Purpose Switching Applications
Description

Silicon Epitaxial Planar Diodes High Voltage Switching Diode

SMD Surface Mount High Voltage Switching Diode Silicon Epitaxial Planar

BAV19WS/ BAV20WS/ BAV21WS Fast Switching Diode

Specification Features:

  • Fast switching speed
  • Surface mount package ideally suited for automatic insertion
  • For General Purpose Switching Applications

Absolute Maximum Ratings and Characteristics at ( Ta=25℃unless otherwise specified )

Parameter Symbol Value

Units
Repetitive Peak Reverse Voltage VRRM 120

V
Reverse Voltage VR 100

V
Forward Continuous Currenet IFM 400

mA
Non-repetitive Peak Forward Surge Current at t=1us IFSM 2.5 A
Power Dissipation PD 200

mW
