SB3100 DO-27 VF 0.85V 3 Amp Schottky Diode Household Appliance Use
SB3100 DO-27 VF 0.85V 3 Amp Schottky Diode Household Appliance Use
Specifications
Brand Name :
Huixin
Model Number :
SB3100 DO-27
Certification :
ISO14001 ISO9001 ISO/TS16949 UL
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
T/T, Paypal, Cash
Supply Ability :
1 billion pieces/ Month
Delivery Time :
2-4Weeks
Packaging Details :
1250pcs/reel/box
Features :
3 Amp Schottky Rectifier Diode
Package :

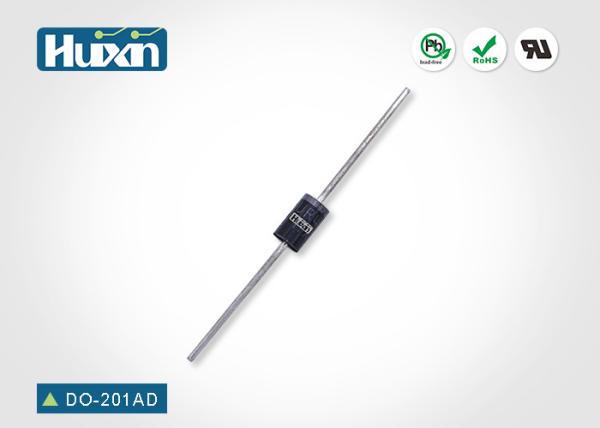

DO -201AD / DO-27
Package Type :
DIP Diode
Sample Time :
5-7 Days
Max. Forward Current :
3A
Max. Reverse Voltage :
100V
VF :
0.85V
IFSM :
80A
Applications :
Household Appliance Use
Description

SB3100 DO-27 VF 0.85V Schottky Barrier Rectifiers For Household Appliances

SB320~SB3200 DO-27 Datasheet.pdf

Features:

​

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • Guardring for overvoltage protection
  • Low reverse leakage
  • High forward surge current capability
  • High temperature soldering guaranteed
  • 250 C/10 seconds at terminals

Mechanical Data:

  • Case : Molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Color band denotes cathode end , Polarity symbol marking on body
  • Mounting Position : Any
  • Weight : 0.0345 ounce, 0.98 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter SYMBOLS SB320

SB340

 SB360 SB380 SB3100 SB3150 SB3200 UNITS
Maximum Repetitive Peak Reverse Voltage VRRM 20

40

 60 80 100 150 200 Volts
Maximum RMS Voltage VRMS 14

28

 42 56 70 105 140 Volts
Maximum DC Blocking Voltage VDC 20

40

 60 80 100 150 200 Volts
Maximum Average Forward Rectifier Current at TL=100°C IF(AV)

3

 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load IFSM 80 Amps
Maximum Instantaneous Forward Voltage at 3.0A VF 0.55

0.7

 0.85 0.95 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C IR

0.5

 0.05 mA
TA=125°C

50

 10

More informaions, pls contact us to get datasheets.
