SS36 SMB Schottky Barrier Rectifier Diode 60 Voltage 3 Ampere Schottky Diode SMD
SS36 SMB Schottky Barrier Rectifier Diode 60 Voltage 3 Ampere Schottky Diode SMD
Specifications
Brand Name :
Huixin
Model Number :
SS36 SMB
Certification :
ISO14001 ISO9001 ISO/TS16949 UL
Place of Origin :
China
MOQ :
3000 PCS
Price :
Negotiable
Payment Terms :
T/T, Paypal, Cash
Supply Ability :
1 billion pieces/ Month
Delivery Time :
2-4Weeks
Packaging Details :
3000pcs/reel/box
Type :
3 Ampere SMD Schottky Diode
Package :
SMB
Package Type :
Surface Mount Diode
Sample Time :
5-7 Days
Max. Forward Current :
3A
Max. Reverse Voltage :
60V
Material :
Silicon
Mounting position :
Any
IFSM :
100A
VF :
0.7V
Description

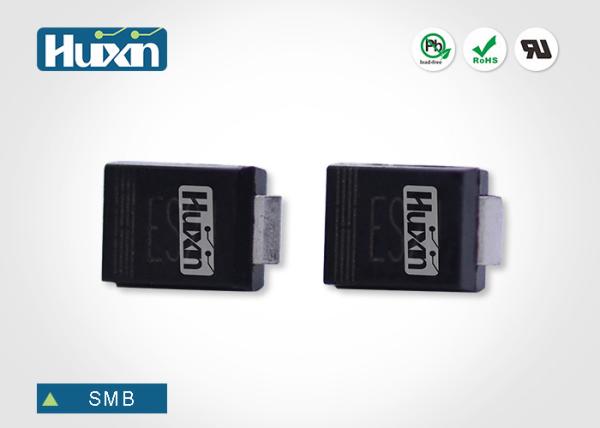

SS36 SMB 60 Voltage 3 Ampere SMD Schottky Diode

SS36 SMB Schottky Barrier Rectifier Diode 60 Voltage 3 Ampere Schottky Diode SMD

SS32~SS320 SMB Datasheet.pdf

Features:

​

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • For surface mounted applications
  • Low reverse leakage
  • Built-in strain relief,ideal for automated placement
  • High forward surge current capability
  • High temperature soldering guaranteed
  • 250 C/10 seconds at terminals

Mechanical Data:

  • Case : JEDEC DO-214AA (SMB) Molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Color band denotes cathode end
  • Mounting Position : Any
  • Weight : 0.0035 ounce, 0.098 grams

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter SYMBOLS SS32 SS34

SS36

 SS38 SS310 SS315 SS320 UNITS
Maximum Repetitive Peak Reverse Voltage VRRM 20 40

60

 80 100 150 200 Volts
Maximum RMS Voltage VRMS 14 28

42

 56 70 105 140 Volts
Maximum DC Blocking Voltage VDC 20 40

60

 80 100 150 200 Volts
Maximum Average Forward Rectifier Current at TL=100°C IF(AV)

3

 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load IFSM 100 Amps
Maximum Instantaneous Forward Voltage at 3.0A VF 0.55

0.7

 0.85 0.95 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C IR

0.5

 0.05 mA
TA=125°C

50

 10
