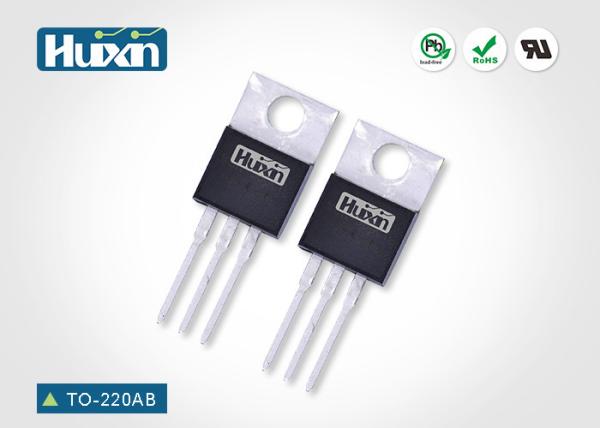

TO-220 Power Schottky Rectifier 3 PINS Diode For Aerospace Products
TO-220 Power Schottky Rectifier 3 PINS Diode For Aerospace Products
Specifications
Brand Name :
Huixin
Model Number :
MBR20200CT TO-220AB
Certification :
ISO14001 ISO9001 ISO/TS16949 UL
Place of Origin :
China
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
T/T, Paypal, Cash
Supply Ability :
1 billion pieces/ Month
Delivery Time :
2-4Weeks
Packaging Details :
1000pcs/reel/box
Type :
High Power Schottky Diode
Package :
TO-220AB
Package Type :
3-PINS Diode
Sample Time :
5-7 Days
Max. Forward Current :
20A
Max. Reverse Voltage :
200V
Material :
Silicon
Mounting position :
Any
Description

TO-220 Power Schottky Rectifier For Aerospace Products

Features:

​

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
  • Guardring for overvoltage protection
  • Low reverse leakage
  • High forward surge current capability
  • High temperature soldering guaranteed
  • 250 C/10 seconds at terminals

Mechanical Data:

  • Case : Molded plastic body
  • Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
  • Polarity : Color band denotes cathode end , Polarity symbol marking on body
  • Mounting Position : Any

Maximum Ratings And Electrical Characteristics:

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Parameter

 SYMBOLS MBR2040CT MBR2045CT MBR2060CT MBR20100CT MBR20150CT MBR20200CT UNITS
Maximum Repetitive Peak Reverse Voltage VRRM 40 45 60 100 150 200 Volts
Maximum RMS Voltage VRMS

28

 31.5 42 70 105 140 Volts
Maximum DC Blocking Voltage VDC

40

 45 60 100 150 200 Volts
Maximum Average Forward Rectifier Current at TL=110°C IF(AV)

20

 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load IFSM 150 Amps
Maximum Instantaneous Forward Voltage at 20A VF

0.55

 0.7 0.85 0.95 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C IR

0.5

 0.05 mA
TA=125°C

50

 10
