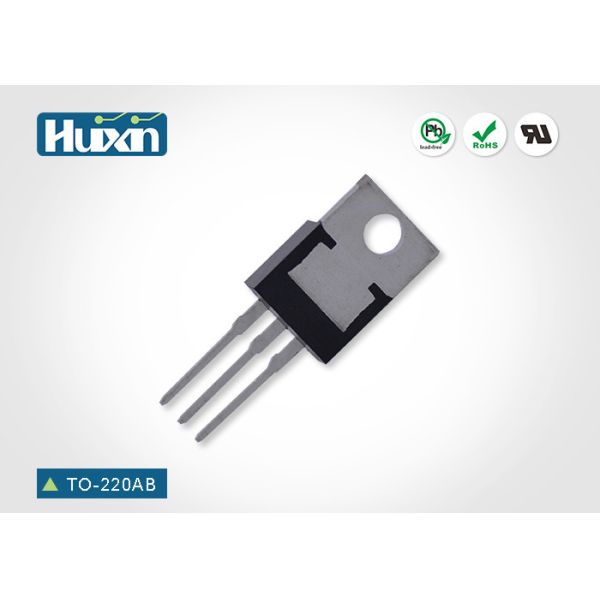

Silicon Low VF Schottky Diode High Current Capability MBR30100LCT TO-220AB
Silicon Low VF Schottky Diode High Current Capability MBR30100LCT TO-220AB
Silicon Low VF Schottky Diode High Current Capability MBR30100LCT TO-220AB
Silicon Low VF Schottky Diode High Current Capability MBR30100LCT TO-220AB
Specifications
Brand Name :
Huixin
Model Number :
MBR30100LCT TO-220AB
Certification :
ISO14001, ISO9001, IATF16949,UL
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Paypal, Cash
Delivery Time :
2-4Weeks
Packaging Details :
50Tube(1000pcs )/ box
Price :
Negotiable
Supply Ability :
1 billion pieces/ Month
Type :
Schottky Barrier Rectifiers
Package :
TO-220AB
Max. Reverse Voltage :
100V
Max. Forward Current :
30A
Material :
Silicon
Application :
Power supply, Electronic Products, ect.
Sample Times :
5-7Days
Lead Time :
2-4Weeks
MPQ :
1000PCS
Package Type :
Through Hole
Description

MBR30100LCT TO-220AB Low VF Schottky Diode

SCHOTTKY BARRIER RECTIFIER
Reverse Voltage - 20 to 200 Volts Forward Current - 30Amperes

FEATURES

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0
  • Metal silicon junction ,majority carrier conduction
  • Guard ring for overvoltage protection
  • Low power loss ,high efficiency
  • High current capability ,Low forward voltage drop
  • Single rectifier construction
  • High surge capability
  • For use in low voltage ,high frequency inverters,free wheeling ,and polarity protection applications
  • High temperature soldering guaranteed:260 C/10 seconds,
  • 0.25"(6.35mm)from case
  • Component in accordance to RoHS 2002/95/EC and
  • WEEE 2002/96/EC

MECHANICAL DATA

  • Case: JEDEC TO-220AB molded plastic body
  • Terminals: Lead solderable per MIL-STD-750,method 2026
  • Polarity: As marked
  • Mounting Position: Any
  • Weight: 0.08ounce, 2.24 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Ratings at 25 C ambient temperature unless otherwise specified ,Single phase ,half wave ,resistive or inductive load. For capacitive load,derate by 20%.)

Parameter SYMBOLS

MBR3020

LCT

MBR3030

LCT

MBR3040

LCT

MBR3045

LCT

MBR3060

LCT

MBR3080

LCT

MBR30100

LCT

MBR30150

LCT

MBR30200

LCT

 UNITS
Maximum Repetitive Peak Reverse Voltage VRRM 20 30 40 45 60 80 100 150 200 Volts
Maximum RMS Voltage VRMS 14 21 28 31.5 42

56

 70 105 140 Volts
Maximum DC Blocking Voltage VDC 20 30 40 45 60 80 100 150 200 Volts
Maximum Average Forward Rectifier Current at TL=110°C IF(AV) 30 Amps
Peak Forward Surge Current ,8.3msSingle Half Sine-Wave Superimposed on rated load IFSM 250 Amps
Maximum Instantaneous Forward Voltage at 30A VF 0.5 0.65 0.8 0.9 Volts
Maximum DC Reverse Current at rated DC blocking voltage TA=25°C IR 0.2 mA
TA=125°C 30 50
