PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g
PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g
PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g
PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g
PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g
PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g
PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g
PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g
Specifications
Brand Name :
INOVI
Model Number :
INOB1091
Place of Origin :
CHINA
MOQ :
1000Pcs
Payment Terms :
T/T (30% payment in advance, the balance is paid at the sight of B/L copy)
Supply Ability :
10000Pcs per Month
Delivery Time :
Within 30~45 days after received payment
Packaging Details :
Inner Box, Master Carton, Pallet (Optional)
Materials :
Brass
Color :
Nickel Plated
Shape :
Straight with Level Hand
Connection Type :
PPR Heat Melting Welding
Pressure Rating(PN) :
PN16
Sealing :
Telfon
HS Code :
8481804090
Standard :
SN/T0725-1997
Description

CW617N Brass Ball PPR Valves INOB1091 Level Hand 1/2"-4"

.

The INOB1091 PPR ball valve is a compact, easy to operate, valves in the MAASU range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids in pipe lines.​ Brass body and steel handle with red color (heating), blue color (cooling).

  • PN16
  • Level Handle
  • Working Pressure PN16
  • Telfon Sealing

Applications

  • Heating
  • Cooling
  • Potable Water
  • Commercial Building
  • Industry

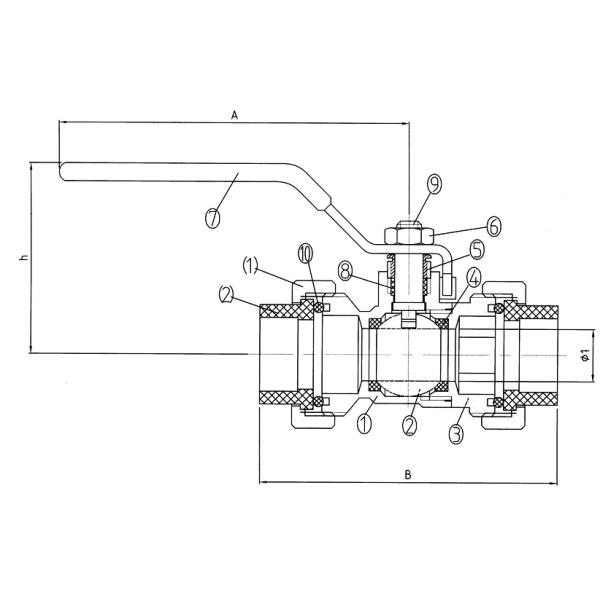

Dimensions

Item No. Size Ø Ø1 A B h Weight (gram) Thickness of PPR Joint (mm)
INOB1091-12 G1/2 1/2"(DN20) 14.5 96 99 48.5 320 4.
INOB1091-34 G3/4 3/4"(DN25) 19 96 108 50.5 466 5.0
INOB1091-1 G1 1"(DN32) 23 110 111.5 55 723 6.5
INOB1091-114 G11/4 11/4"(DN40) 30 139 132 69.5 1220 7.9
INOB1091-112 G11/2 11/2"(DN50) 37 139 142 73.5 1670 9.9
INOB10910-2 G2 2"(DN63) 47 160 167.5 80 3040 12.7
INOB10910-212 G21/2 21/2"(DN75) 57 221 199 109 5000 15.1
INOB10910-3 G3 3"(DN90) 69 221 227 114 7500 18.1
INOB10910-4 G4 4"(DN110) 84 221 250 126 11000 22.1



PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g

Characteristics

Description Material
1 Body Brass (CW617N, CW614, CW602N, ASTM C 37700) or According to Requirements
2 Ball Brass (CW617N, CW614, CW602N, ASTM C 37700) or According to Requirements
3 Body Brass (CW617N, CW614, CW602N, ASTM C 37700) or According to Requirements
4 Seal Ring Telfon
5 Bonnet Brass (CW617N, CW614, CW602N, ASTM C 37700)
6 Nut Brass (CW617N, CW614, CW602N, ASTM C 37700)
7 Handle Steel or Stainless Steel 304 with Plastic Cover or According to Requirements
8 Gasket Telfon
9 Stem Brass (CW617N, CW614, CW602N, ASTM C 37700)
10 O-Ring Rubber
(1) Seal Nut Brass (CW617N, CW614, CW602N, ASTM C 37700)
(2) Joint PPR

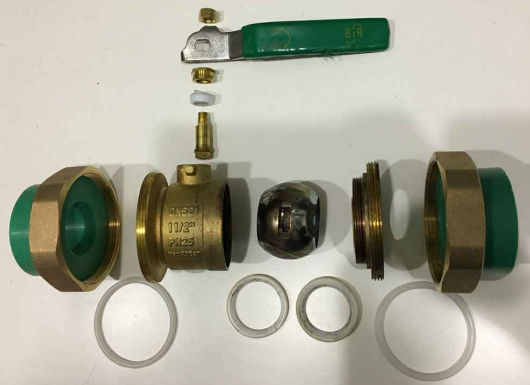

Components View

PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g

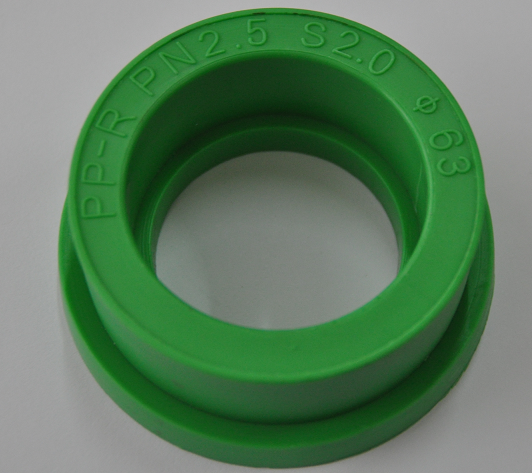

PPR Joint View

PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g

Packing

PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g

PN16 Telfon Sealing Brass Ball Valves Level Hand PPR Ball Valves 1/2 - 4 Inch 320g
