Specifications
Brand Name :
INOVI
Model Number :
INOJY2000
Place of Origin :
CHINA
MOQ :
1000Pcs
Payment Terms :
T/T (30% payment in advance, the balance is paid at the sight of B/L copy)
Supply Ability :
10000Pcs per Month
Delivery Time :
Within 30~45 days after received payment
Packaging Details :
Inner Box, Master Carton, Pallet (Optional)
Materials :
Brass
Color :
Brass
Shape :
Straight with T/Wheel Hand
Connection Type :
G - female thread gas cylindrical (BSPP)
Pressure Rating(PN) :
PN16
Sealing :
NBR (Nitrile)
HS Code :
8481804090
Thread Standard :
ISO228, ISO7/1, DIN2999/DECA fittings
Description

Brass Forged Cut-off Valve INOJY2000 T/Wheel Handle 1/2"-2" ( 2 x Female Thread)

.

The INOJY2000 forged brass cut-off valve is a compact, easy to operate, valves in the MAASU range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids in pipe lines.​ Brass body and brass T handle and steel wheel handle with red color (heating), blue color (cooling).

  • PN16
  • Brass T handle or Steel Wheel Handle
  • Blow-Out and Vandalproof Assembly
  • NBR (Nitrile) Sealing

Applications

  • Heating
  • Cooling
  • Potable Water
  • Commercial Building
  • Industry

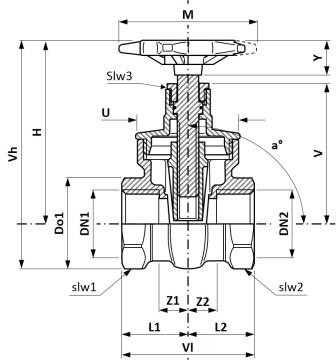

Dimensions

Item No. Size d1 DN1 l1 z1 slw1 d2 DN2 l2 z2 slw2 M H Y V U a
INOJY2001-12 G1/2 31 1/2"(DN15) 23 14 31 31 DN15 23 14 20 55 70 15 29 26 90
INOJY2001-34 G3/4 38 3/4"(DN20) 24 14 38 38 DN20 24 14 20 55 80 16 34 33 90
INOJY2001-1 G1 46 1"(DN25) 29 18 46 46 DN25 29 18 21 64 95 19 41 41 90
INOJY2001-114 G11/4 59 11/4"(DN32) 32 19 59 59 DN32 32 19 26 77 115 19 57 49 90
INOJY2001-112 G11/2 65 11/2"(DN40) 35 21 65 65 DN40 35 21 26 86 125 20 65 55 90
INOJY2001-2 G2 80 2"(DN50) 43 22 80 80 DN50 43 22 31 95 155 25 88 67 90

Forged Brass Gate Valves Wheel Hand 1/2 In - 2 In Female Thread Cut Off Valves

Characteristics

Color Brass
Materials Brass (CW617N, CW614, CW602N, ASTM C 37700) or According to Requirements
Finishing None
Manufacturer MAASU Co., Ltd.
Shape Straight
Connection Type G - Female Gas Conical (BSPP)
Pressure Rating (PN) PN16
Sealing NBR (Nitrile)

Size & Description

Forged Brass Gate Valves Wheel Hand 1/2 In - 2 In Female Thread Cut Off Valves Forged Brass Gate Valves Wheel Hand 1/2 In - 2 In Female Thread Cut Off Valves

Forged Brass Gate Valves Wheel Hand 1/2 In - 2 In Female Thread Cut Off ValvesForged Brass Gate Valves Wheel Hand 1/2 In - 2 In Female Thread Cut Off Valves

Forged Brass Gate Valves Wheel Hand 1/2 In - 2 In Female Thread Cut Off ValvesForged Brass Gate Valves Wheel Hand 1/2 In - 2 In Female Thread Cut Off Valves
