BS5154 Female Ends Brass Gate Valves PN16 Copper Alloy Gate Valve
BS5154 Female Ends Brass Gate Valves PN16 Copper Alloy Gate Valve
BS5154 Female Ends Brass Gate Valves PN16 Copper Alloy Gate Valve
BS5154 Female Ends Brass Gate Valves PN16 Copper Alloy Gate Valve
Specifications
Brand Name :
INOVI
Model Number :
INOVI828
Place of Origin :
CHINA
MOQ :
1000Pcs
Payment Terms :
T/T (30% payment in advance, the balance is paid at the sight of B/L copy)
Supply Ability :
10000Pcs per Month
Delivery Time :
Within 30~45 days after received payment
Packaging Details :
Inner Box, Master Carton, Pallet (Optional)
Materials :
Brass (Copper Alloy)
Color :
Brass
Shape :
Vertical with Wheel Hand
Connection Type :
Female Screwed Ends (BS21)
Working Pressure (PN) :
PN16
Sealing :
Copper Alloy BS1400 DCB1 / DCB3
HS Code :
8481804090
Thread Standard :
BS21
Description

BS5154 Copper Alloy Gate Valve INOVI828 Wheel Handle 1/2"-4" ( 2 x Female Screwed Ends BS21)

.

The BS5154 standard copper alloy (brass) INOVI828 gate valve is a high quality compact, easy to operate, valves in the INOVI range and are designed for long, trouble free service. They provide an ideal means of isolating a range of fluids in pipe lines.​ Brass body and cast iron or aluminium alloy wheelhand with red color (heating), blue color (cooling).

  • Working pressure PN16
  • Testing pressure PN24 on body and PN18 on seat
  • Cast Iron or aluminium wheelhand
  • Blow-Out and Vandalproof Assembly
  • Copper Alloy (BS1400 DCB1/DCB3) disk

Applications

  • Heating
  • Cooling
  • Potable Water
  • Commercial Building
  • Industry

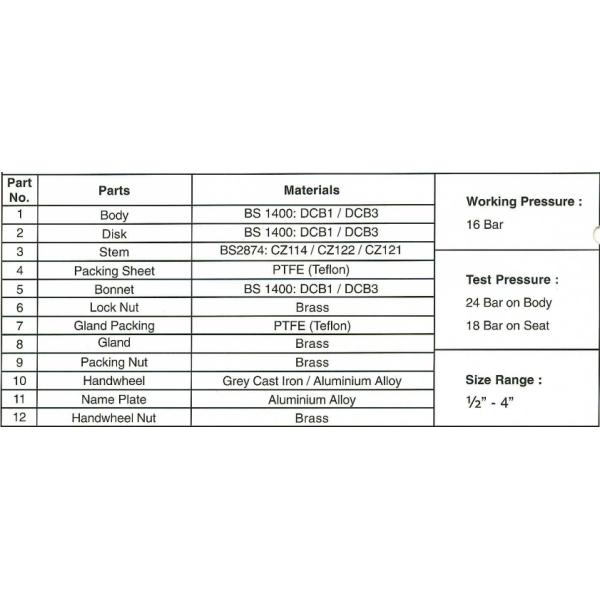

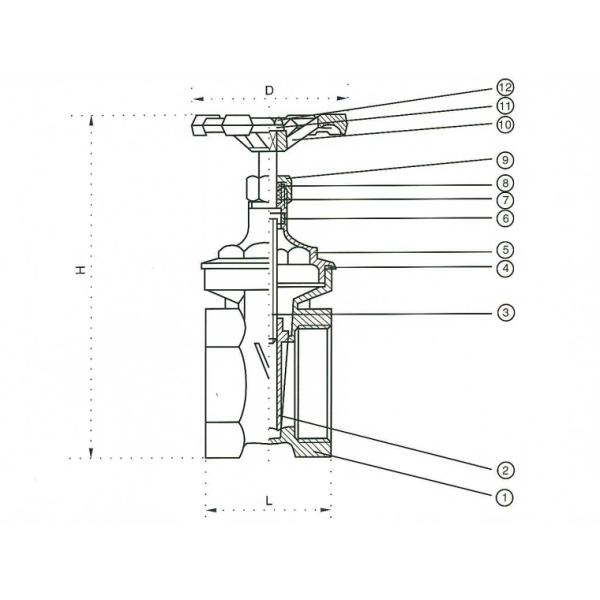

Technical Data

BS5154 Female Ends Brass Gate Valves PN16 Copper Alloy Gate Valve


BS5154 Female Ends Brass Gate Valves PN16 Copper Alloy Gate Valve

Characteristics

Color Brass
Materials Copper Alloy (BS1400 DCB1/DCB3) or According to Requirements
Bonnet Brass (BS1400 DCB1/DCB3)
Manufacturer MAASU Co., Ltd.
Shape Vertical
Connection Type Female Screwed Ends (BS21)
Working Pressure (PN) PN16
Sealing Brass (BS1400 DCB1/DCB3)
