600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank
600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank
600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank
600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank
600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank
600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank
600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank
600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank
Specifications
Brand Name :
SNYNXN
Model Number :
HTD 500
Certification :
CE ISO GMP
Place of Origin :
JIANGSU CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets / year
Delivery Time :
IN 20 DAYS
Packaging Details :
Standard Export Packing in Wooden Case
Type :
Pharmaceutical IBC Container
Processed Material :
Pharmaceutic Powder
Max Working Pressure :
0.3 MPa
Feeding port :
DN500
Core Components :
Motor, Valve, Vessel
Material Thickness :
2.5 mm
Warranty :
2 years for core components
After sales Service :
Online Support, Engineers available to service machinery overseas
Description

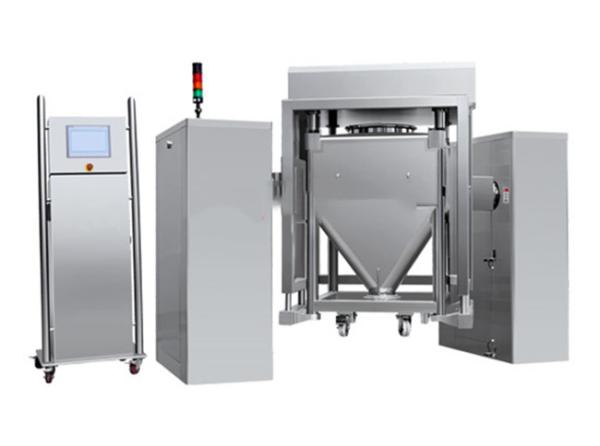

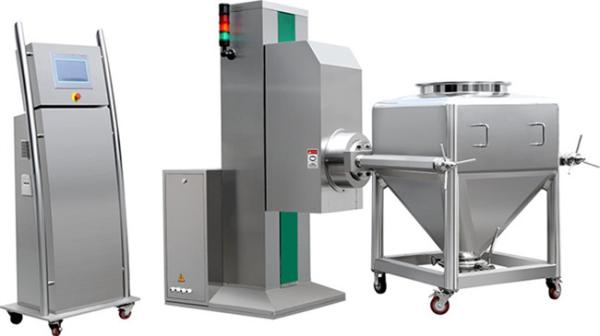

Description of Pharmaceutical Substances Blender IBC Bin Mixer

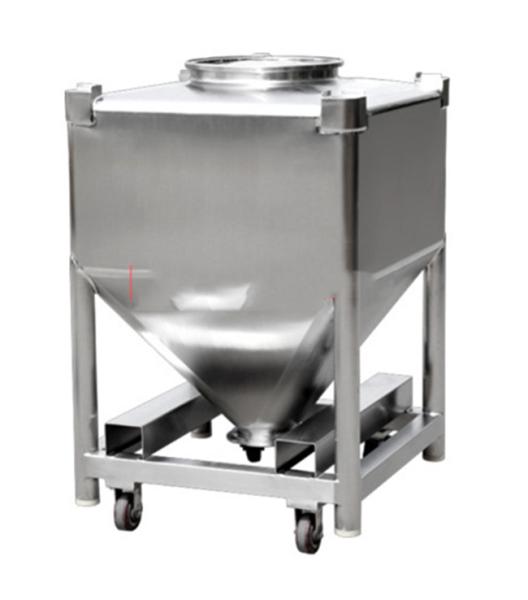

600L Pharma Bin Pharmaceutical IBC container Stainless Steel Powder IBC Bin for Blender

This IBC tank is used for material transfer and storage in the production process of solid preparation. It mainly works with mixer, feeder, granulator, capsule filling machine, tablet pressing machine, etc. It can effectively avoid dust and cross-contamination, and fully meet the requirements of GMP in drug production.
It is also used for powder and granule materials transfer and storage in food and chemical industry.

This bin is made of high quality austenitic stainless steel, and all inner corners and outer surfaces are circular arc transition, and there is no dead angle or residue. The inner surface is polished, the roughness reaches Ra≤0.2μm, the outer surface is brushed, and the roughness reaches Ra≤0.4μm.

The cover is equipped with silicone rubber sealing device to ensure the sealing efficiency. The special butterfly valve with anti-misoperation device is designed to ensure the safety of production. There are special wheels to protect ground of clean area not be damaged, and no traces left.

It is used for storage and transfer powder and granule materials in pharmaceutical, food and chemical industry, and also can be equipped for mixer.
Technical Parameters:
Model HTD-300 HTD-400 HTD-600 HTD-800
Blending speed 3-20rpm 3-20rpm 3-15rpm 3-15rpm
Net load 150 200 300 400
Total power 4.4KW 5.2KW 5.2KW 7KW
Machine weight 900kg 1000kg 1300kg 1600kg
Rotation 2150mm 2250mm 2500mm 2600mm
Ceiling height 2800mm 2800mm 2800mm 2800mm
Rotation width 2000mmm 2100mm 2400mm 2500mm
Overall dimension 2457x1306x2300mm 2555x1445x2400mm 2663x1583x2500mm
2800x1730x2500mm

600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank

600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank

600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank

600L Pharma Bin Blender Pharmaceutical Container Stainless Steel Powder Ibc Chemical Tank

SNYNXN has been manufacturing, engineering and exporting various kinds of industrial dryers, mixers, granulators and impact mills since 2007 for a lot of satisfied customers.

SNYNXN pay attention to detail and real production data is critical in the manufacturing of industrial machinery. An unique design for specific material is always made based on real production experiences or trial data.

SNYNXN has experienced technicians who has been working in this field for more than 20 years as well as professional pilot plant. Free trial and material study are available for our customers.

SNYNXN has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, commissioning and training services.

SNYNXN is always your reliable machinery supplier.

Warranty Period

One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians.
