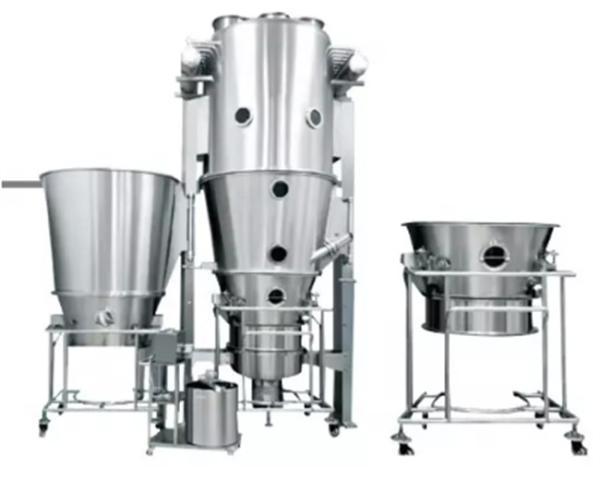

ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
Specifications
Brand Name :
SNYNXN
Model Number :
FLP 90
Certification :
CE ISO GMP
Place of Origin :
JIANGSU CHINA
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
IN 50 DAYS
Packaging Details :
Standard Export Packing in Wooden case
Type :
Fluid bed coating machine
Application :
Pharmaceutical, food, chemical and other industries
Container Diameter :
700 - 1500 MM
Capacity :
4-250 kg/batch, customized
Working temperature :
RMT- 120 C
Control system :
Automatic PLC+Touch Screen
Key Selling Points :
Easy to Operate, Low Cost, Long Service Life
Power of Electric heater :
depends on client's requirement
Construction Material :
304/316, according to customer's requirements
Warranty :
1 Year, 2 years of core components
Description
Description of Multifunctional Medicine Fluid Bed Drying and Coating Machine
Medicine Fluid Bed Granulator Coater Coating Machine Granules And Pellet Coating Machine For Omeprazole Capsule

The machine is mainly used for the operations of mixing, granulating,drying and coating of granule,powder material in pharmaceutical industry , foodstuff industry,chemical industry etc. Such as granule of tablet, granule for quick resolving drinking, condiment.

Main Features

Through powder granulation, improve fluidity, reduce dust flying.
The solubility was improved by powder granulation.
Mixing- granulation -drying is completed in one machine.
Use anti static filter cloth to ensure the safety of the equipment.
Set up the pressure discharge hole, in case of explosion, personnel will not be injured.
There is no dead angle in the equipment, the loading and unloading is light and fast, and the washing is convenient, which
conforms to the GMP specification.
High degree of automation, equipped with program control, simulation screen display technology for users to choose.

Working Principle

Powder material into the hopper container, due to the effect of hot air flow, the powder suspension shows a fluidized circulation flow and achieve uniform mixing,at the time, spray a mist binder to wet the powder in the container to make the powder condensed into loose small particles, when granulating, due to the high-efficiency drying of hot air flow, the water is continuously evaporated and the powder is solidified continuously, process repeated, forming ideal and uniform spherical particles with multiple micropores, the three processes of mixing, granulation and drying are completed in the container at one time.The water content and disintegration time of solid preparation were taken as the investigation indexes, and the results were tested by T test.
Results: when the solid preparation was dried, the boiling drying method was significantly different from the traditional drying method.

Technical Data

Item Model (FLP) Specifications
Name Unit 10 15 20 30 45 60 90 120
Diameter mm 700 800 900 1000 1100 1200 1400 1500
Productive Capacity Kg/batch 2.5-10 3-15 5-20 7.5-30 10-45 15-60 20-90 30-120
Power of Fan kw 5.5 7.5 7.5 7.5 11 11 15 18.5
Steam Pressure Mpa 0.4-0.6
Consumption Kg/h 35 42 47 60 140 160 180 240
Compressed Air Pressure Mpa 0.6
Consumption M3/min 0.6 0.6 0.6 0.9 0.9 1.1 1.3 1.5
Noise DB No more than 75db of fan

Drug granulation and coating.
Granulation: tablet granule, granule for granule, capsule granule.
Coating: pellet, pill protective layer, color slow release, film, enteric coating.
Food granulation and coating.
Fried sugar, coffee, cocoa powder, cream powder juice, amino acid, seasoning, puffed food. Granulation of pesticides, pigments and dyes. Powder, granule, block material drying.
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
Our Ceritifications:
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine
SNYNXN is a high-tech enterprise mainly engaged in the research, development, production and sales of Pharmaceutical Machines. The main products are Fluid Bed series, drying and granulating machine etc., which are mainly used in the fields of pharmaceutical, food, health care products and feed.
SNYNXN owns certificates of GMP, CE, SGS, ISO9001, AAA etc. With good quality and professional aftersales service, we enjoy high reputation among our customers over 120 countries and regions around the world.
