Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Specifications
Brand Name :
SNYNXN
Model Number :
FLP 120
Certification :
CE ISO GMP
Place of Origin :
JIANGSU CHINA
MOQ :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
IN 60 DAYS
Packaging Details :
Standard Export Packing in Wooden case
MachineType :
Stainless Steel Fluid Bed Granulating Coating Machine
Application Scope :
Pharmaceutical,Chemical,Food
Container Diameter :
700 - 1500 MM
Capacity :
2.5-120 KGS/BATCH
Number of Nozzles :
1-3
Compressed Air :
0.4 - 0.6 Mpa
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, P
Key selling Points :
Multi-functional, fluid bed granulator and coating
Construction Material :
SS304 or SS316 is optional
After sales Service :
Online Support, Engineers available to service machinery overseas
Description
Description of FLP series Multi-Functional Fluid Bed Granulating and Coating Machine

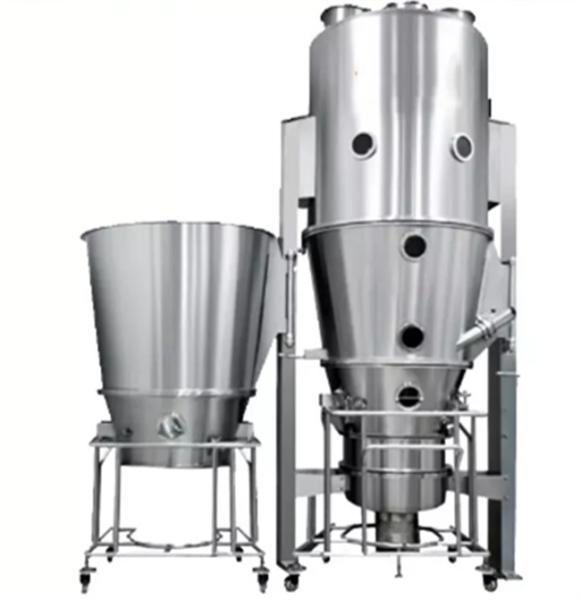

Stainless Steel Vertical Type FLP Series Multifunctional Fluid Bed Dryer/Granulator/Coating Machine

The machine is a multifunctional fluid bed granulator integrating various functions such as top spray, bottom spray and side spray. It has various functions such as mixing, drying, granulating, coating and pelletizing. It is widely used in such industries as pharmaceutical, food, chemical industry, etc.


Work principle

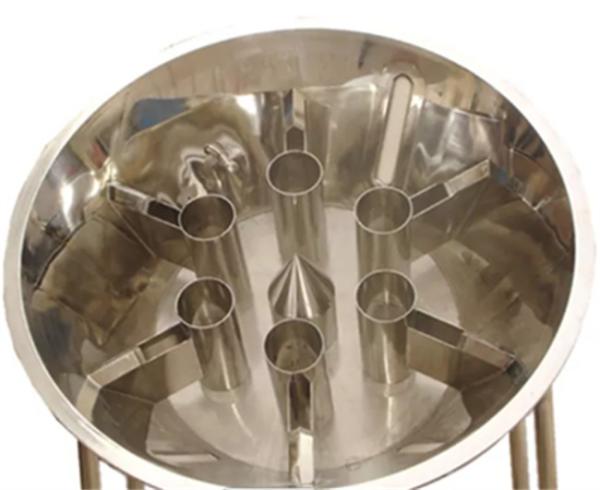

The machine is composed of air inlet system, fluid bed system, top spray system, bottom spray system, side spray system and exhaust and dust filter system. The top spray provides the granulating function, the bottom spray provides the pellet coating function and the side spray provides the pelletizing function. The above functions are realized in one multifunctional fluid bed granulator. Users can select the optional functions according to actual process requirements.


Features


1.The machine adopts modular design. Three functions or any one or two of the functions can be configured according to customer requirements.

2.The machine is provided with complete function systems including top spray, bottom spray and side spray to conveniently realize such the functions of drying, granulating, coating and pelletizing.

3.The machine adopts PLC automatic control. All operations are completed automatically according to the process parameters set by users. All process parameters can be printed and the original records are true and reliable. It fully meets GMP requirements for pharmaceutical production.

Technical Data:

Specification
Item		 5 15 30 60 120 200 300-1000

Feed capacity		 / kg/batch 4-6 10-20 25-40 40-80 80-150 150-250

Raw material container volume		 L 15 50 100 220 360 650

Fan power		 Kw 4 5.5 7.5 15 18.5 22

Compressed air
Pressure		 MPa 0.6

Consumption		 M3/min 0.4 0.6 0.9 1.3 1.8 2.4

Steam
Pressure		 MPa 0.4 -0.6

Consumption		 Kg/h 9 64 85 181 250 330

Host size		 H1(mm) 2600 2850 3150 3250 3500 3800

Custermorised

Design

H2(mm) 340 490 590 790 890
H3(mm) 2630 2930 3020 3280 3580
B1(mm) 1010 1160 1460 1660 2060 2260
B2(mm) 1560 1860 2460 2860 3660 4060
φ1(mm) 550 700 1000 1200 1600 1800
φ2(mm) 180 250 250 280 280 315
L(mm) 850 1550 1700 1800 2000 2100
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Stainless Steel Vertical Type Multifunctional Fluid Bed Dryer Granule Coating Machine
Our Advantages:

1.Specialized in designing, developing and manufacturing.

2.Above 130 National patents,national and provincial technology innovation awards

3.Provincial Pharma Equipment Engineering Technology Research Center

4.National High-Tech,National Pharma Equipment Industry Association,Provincial new special expertise Enterprises

5.Manufacture the solid preparation production line equipment for above 500 domestic and oversea enterprises

6.Modern production workshop and production line of high-end manufacturing equipment

7.Professional and efficient after-sales service management

8.Competitive price and prompt delivery

9.Meet ISO9001 and CE

10.OEM/ODM available
