Specifications
Brand Name :
SNYNXN
Model Number :
FG 120
Certification :
CE ISO GMP, ISO 9001 Certification
Place of Origin :
JIANGSU, CHINA
MOQ :
1 set
Price :
USD10000-100000/SET
Payment Terms :
L/C, T/T,
Supply Ability :
500 SETS/YEAR
Delivery Time :
50 - 90 DAYS
Packaging Details :
Film Wrapping, Wooden Case.
Product name :
Fluid Bed Granules Drying Processor
Application Industry :
Drying in Medicine Processing, Chemicals Processing, Food Processing,
Material Processed :
Plastics, Chemicals, Food, Medicine, Feed
Capacity :
1.5 - 1100 kg/batch, depend on model
Material Type :
all type of powders and granules
Fan Power(w) :
2.2-75 KW depend on model
Key selling point :
safe, clean, high productivity, long time use.
Showroom Location :
Spain, Serbia, Viet Nam, Russia, Thailand, Mexico,
Main Material :
304/316L Stainless Steel
After-sales service provided :
Video technical support, Online support, Spare parts, Field ma
Description

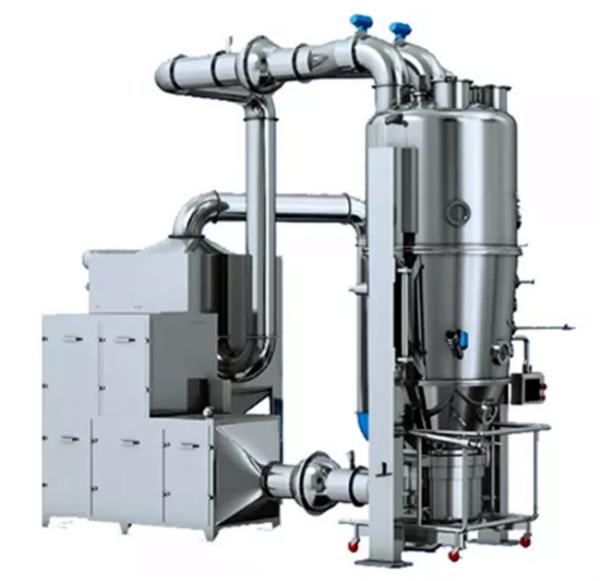

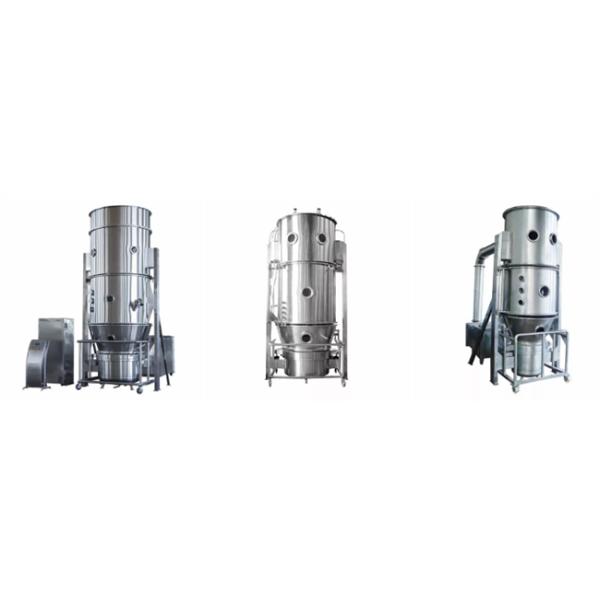

Description: FG Vertical Fluidized Bed Dryer, Industrial Fluid Bed Drying Equipment

Factory Supply FG type Pharmaceutical Equipment FBD Dryer Chemical Foodstuff Coffee Drying Machine


The purified and heated air is introduced from the bottom by the draft fan and passed through the screen plate. The fluidization is formed through stirring and negative pressure in the working room. The moisture will be rapidly evaporated and exhausted so the material can be dried very fast.


FEATURES

  1. The structure of fluidization bed is round so it is smooth inside without cleaning dead corners.
  2. There is a stirring device inside of the hopper which can avoid agglomeration of wet material.
  3. The granule is discharged by tipping over the hopper. The discharged system can be designed as per customer requirements.
  4. The dryer is operated at the negative pressure and seal conditions. The air is filtered before enters to the dryer. Therefore, it is simple in operation and convenient in cleaning.
  5. The drying speed is fast and the temperature is uniform. The drying time is normally 20~30 minutes for each batch.


APPLICATION

  1. Damp granules and powder materials in pharmaceutical, foodstuff, feed, chemical, and agrochemical industries.
  2. Granules made by extruder, oscillating granulator, and high speed mixing granulator.
  3. Special large granule and small blocks that having adhesive property.
  4. The material that changes volume during drying process; such as konja
FG Type Pharmaceutical Fluid Bed Equipment Chemical Foodstuff Coffee Drying MachineFG Type Pharmaceutical Fluid Bed Equipment Chemical Foodstuff Coffee Drying Machine

Technical Parameter

item
unit
Model
3
5
15
30
60
Raw material tank
volume
L
12
22
45
100
220
diameter
mm
300
400
550
700
1000
Output capacity
min
kg
1.5
4
10
15
30
max
kg
4
6
18
36
72
fan
air quantity
m3/h
1000
1200
1400
1800
3000
Air pressure
mmH2O
375
375
480
480
480
power
kw
3
4
5.5
7.5
11
steam consumption
kg/h
15
23
42
70
141
compressured air consupmtion
m3/min
0.6
0.6
0.6
0.9
0.9
weight
kg
250
300
700
900
1100
steam pressure
Mpa
0.3~0.6
temperature
℃
room temperature -120℃,adjustable
Working time
min
according to material feature45~90
Receiving rate
%
≥99
noize
dB(A)
fan and main frame installed separately, noise≤75dB(A)
item
unit
Model
120
150
200
300
500
Raw material tank
volume
L
420
530
670
1000
1500
diameter
mm
1200
1300
1400
1600
1800
Output capacity
min
kg
80
90
100
150
250
max
kg
140
200
240
360
600
fan
air quantity
m3/h
4500
5200
6000
7000
8000
Air pressure
mmH2O
550
550
750
750
950
power
kw
18.5
18.5
22
30
45
steam consumption
kg/h
211
251
282
366
451
compressured air consupmtion
m3/min
0.9
0.9
1.1
1.5
1.5
weight
kg
1300
1500
1650
1800
2000
steam pressure
Mpa
0.3~0.6
temperature
℃
room temperature -120℃,adjustable
Working time
min
according to material feature45~90
Receiving rate
%
≥99
noize
dB(A)
fan and main frame installed separately, noise≤75dB(A)

FG Type Pharmaceutical Fluid Bed Equipment Chemical Foodstuff Coffee Drying Machine

FG Type Pharmaceutical Fluid Bed Equipment Chemical Foodstuff Coffee Drying Machine

FG Type Pharmaceutical Fluid Bed Equipment Chemical Foodstuff Coffee Drying Machine

Company File:
SNYNXN is a high-tech enterprise mainly engaged in the research, development, production and sales of Pharmaceutical Machines. The main products are Fluid Bed series, drying and granulating machine etc., which are mainly used in the fields of pharmaceutical, food, health care products and feed.
SNYNXN owns certificates of GMP, CE, SGS, ISO9001, AAA etc. With good quality and professional aftersales service, we enjoy high reputation among our customers over 120 countries and regions around the world.
