Specifications
Brand Name :
SNYNXN
Model Number :
TN-100
Certification :
CE ISO GMP
Place of Origin :
JIANGSU CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, Western Union
Supply Ability :
100 sets / year
Delivery Time :
Within 50 Days After Order
Packaging Details :
Standard Export Packing in Wooden case
Type :
Round Stainless Steel Concentration Tank
Function :
concentration
Heating source :
Steam
Capacity :
100L-20T
Process :
Continuous
Core Component :
Motor, Pressure vessel
Keywords :
Vacuum concentrator
Key Selling Point :
Long Service Life
Warranty :
1 Year, 2 years of core components
After sales service :
Field maintenance and repair service
Description
Products Description 100L 200L 300L mininature herbal medicine ultrasonic extraction and concentration machine equipment
The multifunctional herbs ultrasonic Extraction and Concentration Equipment is suitable for herbs, health care products, bio-pharmaceuticals, cosmetics, food and other industries, normal temperature and pressure extraction, ultrasonic extraction, ultrasonic recycling extraction and ultrasonic countercurrent extraction and other processes. This device can be ultrasonic dynamic continuous countercurrent recycling extraction, suitable for pharmaceutical, biological products business, enterprises, laboratories and pharmaceutical factory R & D department of many varieties, production use.
Product Paramenters
Model
TN-50
TN-100
TN-200
TN-300
Volume L
50
100
200
300
Evaporation capacity kg/h
20
50
80
100
Motor power kw
0.55
0.75
0.75
1.1
steam consumption kg/h
25
60
90
120
System vacuum Mpa
-0.06 to -0.08
Jacket pressure Mpa
0.09~0.03
0.09~0.03
0.09~0.03
0.09~0.03
Compressed air Mpa
0.5~0.6
0.5~0.6
0.5~0.6
0.5~0.6
Steam temperature ℃
100~125
Features:
1. Combined with extracting and concentrating, so as to make it easy to operate. It's polished in both internal and external side, which is in accordance with GMP requirements.

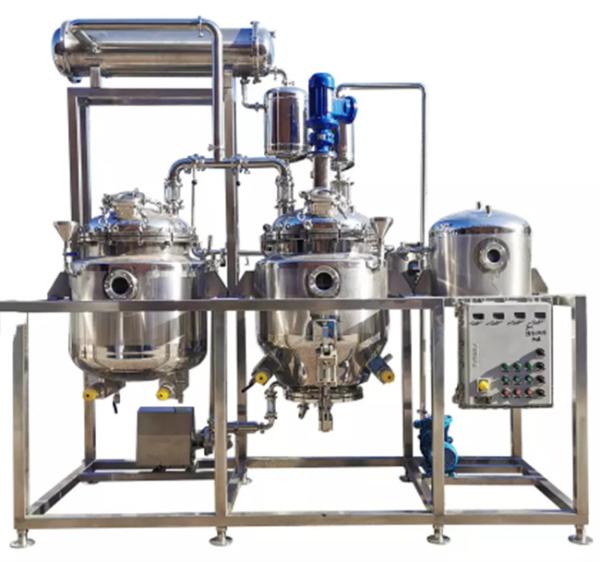

2. It's mainly made up of extracting tank, condenser, cooler, oil-water separator, filter, concentrator and liquid-recycling tank etc.
3. This ultrasonic Extraction and Concentration Equipment is manufactured with our technicians’ many years research and development, which can complete several kinds of experiments. and there're many ways to operate it. Its pipeline is specially installed.
4. It is manufactured on the seal condition in the whole process. Complete the extracting and concentrating in one time with less solvent consumption and less extracting and concentration time.
5. The optional stirrer device can be installed accordingly, as request by clients, we can provide manual, semi-auto and fully-auto types. There are electric heating and steam heating you can choose.
100L 200L 300L Medicine Industrial Extraction Equipment Ultrasonic Extraction And Concentration
100L 200L 300L Medicine Industrial Extraction Equipment Ultrasonic Extraction And Concentration 100L 200L 300L Medicine Industrial Extraction Equipment Ultrasonic Extraction And Concentration
100L 200L 300L Medicine Industrial Extraction Equipment Ultrasonic Extraction And Concentration
100L 200L 300L Medicine Industrial Extraction Equipment Ultrasonic Extraction And Concentration
100L 200L 300L Medicine Industrial Extraction Equipment Ultrasonic Extraction And Concentration
FAQ
1. Q : How can customer visiting our factory?
A : We are in Jiangyin city, Jiangsu China. which is very near to Shanghai. From Shanghai China to our city, it will take 1 hour by train, 2hours by car. And our factory is closer to Shanghai Hongqiao airport only 1.5 hour by car.
2. Q : How can customer know the processes of order?
A : We will take photo or video during manufacturing every two weeks to make customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.
3. Q : Do you supply installation equipment in oversea?
A : Yes, if need, we can also send our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 150USD/day.
4. Q : How to control quality?
A : All material we use has material certification. Before any piece of equipment leaves SNYNXN. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
5. Q : What is the shipment schedule?
A : We will send you photographs of your order being loaded into the shipping container at the factory.
The shipping container will generally leave port 3-4 days after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container.
Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time.
6. Q : Which material are the equipment made of?
A : Stainless steel 304/ stainless steel 316/ Ti.
