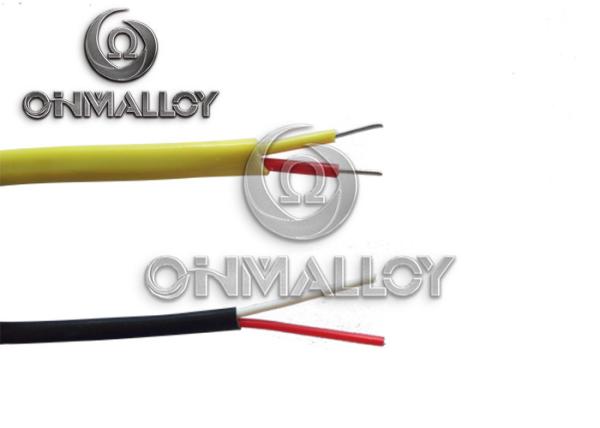

Iron / Constantan Material J Type Thermocouple Cable AWG20 PVC Insulation
Iron / Constantan Material J Type Thermocouple Cable AWG20 PVC Insulation
Specifications
Brand Name :
OHMALLOY
Model Number :
K-HP-HP-33
Certification :
ISO9001-2008
Place of Origin :
China(Shanghai)
MOQ :
100 meters
Price :
negotiable
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
500000meters per month
Delivery Time :
10 -15 days
Packaging Details :
100m/spool, 305m/spool, 1000ft/spool, 1000m/spool
Material :
Iron, Constantan
Insulation :
PVC.
Diameter :
10AWG,12AWG,14AWG,16AWG, 18 AWG, 20 AWG, 24 AWG
Color :
ASTM code,ANSI code, IEC code, GB/T standard
Description

Type J Extension Cable Iron / Constantan Material PVC Insulation

Specifications


1.Style:Extension Wire
2.Thermocouple wire

Thermocouple wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Thermocouple variety and index


Thermocouple Variety and Index

Variety
Type
Measurement Range(°C)

Fe-CuNi
J
-40-750

3 . Dimensions and Tolerance of PVC Insulated Thermocouple Wire

Dimensions / Tolerance mm ) : 4.0+-0.25


Color code & initial calibration tolerances for thermocouple wire:

Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor		 Jacket Temperature Range Standard
Limits		 Special
Limits
Iron(+) vs.
Constantan(-)		 J White/Red Brown 0°C to +285°C
285°C to +750°C		 ±2.2°C
± .75%		 ±1.1°C
± .4%
CHROMEL(+) vs.
ALUMEL(-)		 K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C		 ± 2%
±2.2°C
±2.2°C
± .75%		 ±1.1°C
± .4%
Copper(+) vs.
Constantan(-)		 T Blue/Red Brown -200°C to -65°C
-65°C to +130°C
130°C to +350°C		 ± 1.5%
±1°C
± .75%		 ± .8%
± .5°C
± .4%
CHROMEL(+) vs.
Constantan(-)		 E Purple/Red Brown -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C		 ± 1%
±1.7°C
±1.7°C
± .5%		 ±1°C
±1°C
± .4%
± .4%


Color Code & Initial Calibration Tolerance for Extension Wire:

Extension type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor		 Jacket Temperature Range Standard
Limits		 Special
Limits
Iron (+) vs. Constantan(-) JX White/Red Black 0°C to +200°C ±2.2°C ±1.1°C
CHROMEL (+) vs. ALUMEL (-) KX Yellow/Red Yellow 0°C to +200°C ±2.2°C ±1.1°C
Copper(+) vs. Constantan(-) TX Blue/Red Blue -60°C to +100°C ±1.1°C ± .5°C
CHROMEL(+) vs. Constantan(-) EX Purple/Red Purple 0°C to +200°C ±1.7°C ±1.1°C


PVC-PVC Physical Properties:

Characteristics Insulation Jacket
Abrasion Resistance Good Good
Cut Through Resistance Good Good
Moisture Resistance Excellent Excellent
Solder Iron Resistance Poor Poor
Service Temperature

105ºC continuous

150ºC single

105ºC continuous

150ºC single
Flame Test Self-extinguishing Self-extinguishing
