0.25mm KN Thermocouple Bare Wire NiAl Alloy Wire Bright Surface Extension Wire
0.25mm KN Thermocouple Bare Wire NiAl Alloy Wire Bright Surface Extension Wire
Specifications
Brand Name :
OHMALLOY
Model Number :
K-HL-1222
Certification :
ISO9001-2008
Place of Origin :
China(Shanghai)
MOQ :
10KG
Price :
negotiable
Payment Terms :
, T/T, L/C
Supply Ability :
500000kg per month
Delivery Time :
7-10 days
Packaging Details :
20kg/coil, or DIN 200 or DIN 250
Material :
NiCr-NiSi/NiAl
Status :
Bright
Diameter :
0.25mm
Spool :
DIN 200, DIN250
Application :
Thermocouple
Electrical resistivity :
0.29μΩ/m
Description

0.25mm KN Thermocouple wire bare NiAl alloy wire bright surface

Thermocouple type and grade for thermocouple wire

Thermocouple Type Grade Temperature Range(°C) Allowable Deviation
type K and type N I –40–1100 ±1.5°C or±0.4%t
II –40–1300 ±2.5°C or ±0.75%t
III –200–40 ±2.5°C or ±1.5%t
type E I –40–1100 ±1.5°C or ±0.4%t
II –40–1300 ±2.5°C or ±0.75%t
III –200–40 ±2.5°C or±1.5%t
type J I –40–750 ±1.5°C or ±0.4%t
II –40–750 ±2.5°C or ±0.75%t
type T I –40–350 ±0.5°C or± 0.4%t
II –40–350 ±1.0°C or± 0.75%t
III –200–40 ±1.0°C or± 1.5%t
NiCr-AuFe0.07 I –270–0 ±0.5°C
II ±1.0°C
  • Type: K, E, J, T, N, etc
  • Style: bright or oxidized
  • Application: forming two hot electrodes of thermocouple or compensating cable
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Thermocouple wire
  • Product Size: 0.05mm to 10.0mm
  • Delivery time: 7-20days which is according to quantity
  • Eco-friendly: Yes
  • MOQ: 1kgs
  • Trade term: FOB, EXW, CIF, CFR
  • Payment term: T/T, , L/C
  • Certificate: ISO,CQC ROHS
  • Making sample time: all type in stock
  • Advantage: high quality with high measuring accuracy, fast thermal response, high mechanical strength, long service lifetime, wide temp measuring range of -200-1300centigrade

Classification for thermocouple wire

  • Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
  • Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Thermocouple variety and index for thermocouple wire

Thermocouple Variety and Index
Variety Type Measurement Range(°C)
NiCr-NiSi K –200–1300
NiCr-CuNi E –200–900
Fe-CuNi J –40–750
Cu-CuNi T –200–350
NiCrSi-NiSi N –200–1300
NiCr-AuFe0.07 NiCr-AuFe0.07 –270–0


Company profile


Ohmalloy Material Co.,Ltd is a high-tech enterprise which specialized in making all kinds of alloy such as high resistance alloy, low-resistance copper nickel alloy, FeCrAl alloy and thermocouple Alloy.
Ohmalloy Material Co.,Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer.
Our product is widely used in heating equipment, big steel mill, mineral,electrical equipment, food machinery,auto industry,aerospace industry.Our product not only is popular in domestic market, but also been exported to all over the world.
Our company aims to be the best-quality alloy producer in the world.We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people's living level,make a more green earth in the future.

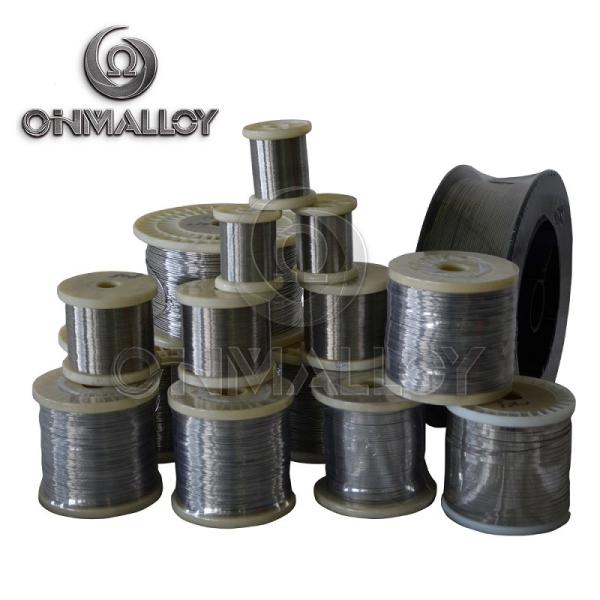

Products&Package:

0.25mm KN Thermocouple Bare Wire NiAl Alloy Wire Bright Surface Extension Wire
