J Type Thermocouple Cable Dia 3.2mm * 2 Solid Thermocouple Extension Wire
J Type Thermocouple Cable Dia 3.2mm * 2 Solid Thermocouple Extension Wire
Specifications
Brand Name :
OHMALLOY
Model Number :
JK -S-1115
Certification :
ISO9001-2008
Place of Origin :
China(Shanghai)
MOQ :
100meters
Price :
negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
500000meters/month
Delivery Time :
10-15 days
Packaging Details :
100m/spool, 500m/roll
Conductor :
+Iron, -Constantan
Conductor dia :
3.2mmx2
Insulation material :
PVC/FEP/PFA/ Fiberglass/Vitreous silica
Jacket material :
PTFE/Fiberglass/PVC
Color :
Conforms to ANSI, IEC, JIS
Package :
1000ft/roll
Standard :
ANSI96.1 or IEC 584-2
Description

JPX/JNX Type J Thermocouple Extension Wire Dia 3.2mm*2 Solid


Specification:

Conductors: Solid or stranded thermocouple wire per
Insulation: Braided fiberglass,PVC, PTFE, Silicon
Construction: Parallel conductors
Jacket: PTFE/Fiberglass/PVC
Limits of Error: Conforms to ASTM E230, IEC 584 and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS

Type: K, E, J, T, N, etc.

Style: solid or stranded, parallel or twisted

Conductor material:

Variety Type
NiCr-NiSi K
NiCr-CuNi E
Fe-CuNi J
Cu-CuNi T
NiCrSi-NiSi N
NiCr-AuFe0.07 NiCr-AuFe0.07

Insulating and sheath material:

insulation PTFE PFA TEF FEP PVC FG silicone kapton Quartz fiber
Max temp(°c) 260 260 200 200 108 400 200 400 800

Normal available condutor size

Solid type 0.2mm 0.3mm 0.5mm 0.8mm 1.0mm 1.13mm 1.29mm 1.37mm
Stranded type 0.2mm*7 0.3mm*7 0.43mm*7 0.52mm*7 0.67mm*7

Note: We also can make the speical size as per client’s requirement. SWG/AWG also is available

Color Standard

J Type Thermocouple Cable Dia 3.2mm * 2 Solid Thermocouple Extension Wire

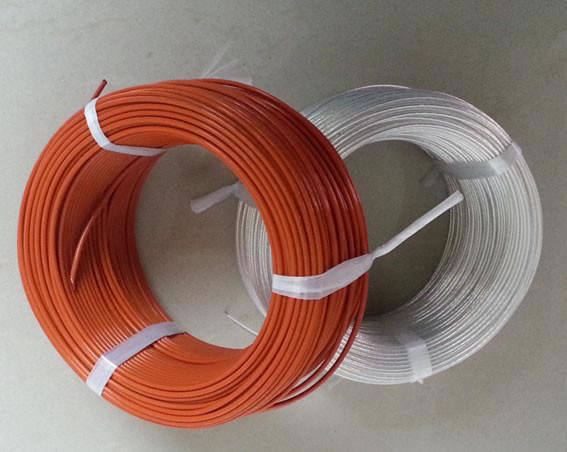

Product&Package

J Type Thermocouple Cable Dia 3.2mm * 2 Solid Thermocouple Extension Wire

J Type Thermocouple Cable Dia 3.2mm * 2 Solid Thermocouple Extension Wire
