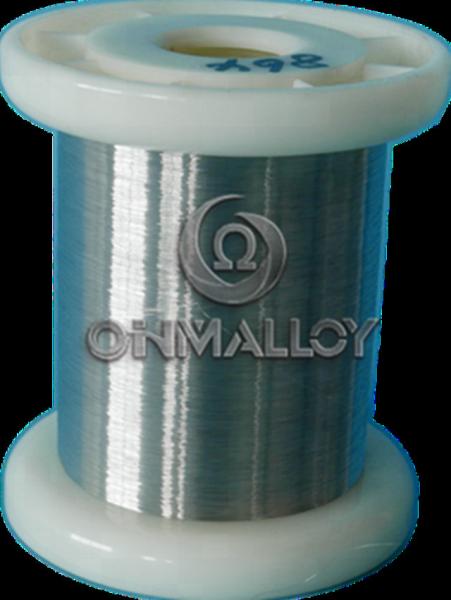

0cr25al5 Heat Resistant Wire Swg 26 28 30 For Industrial Infrared Dryers
0cr25al5 Heat Resistant Wire Swg 26 28 30 For Industrial Infrared Dryers
0cr25al5 Heat Resistant Wire Swg 26 28 30 For Industrial Infrared Dryers
0cr25al5 Heat Resistant Wire Swg 26 28 30 For Industrial Infrared Dryers
0cr25al5 Heat Resistant Wire Swg 26 28 30 For Industrial Infrared Dryers
0cr25al5 Heat Resistant Wire Swg 26 28 30 For Industrial Infrared Dryers
0cr25al5 Heat Resistant Wire Swg 26 28 30 For Industrial Infrared Dryers
0cr25al5 Heat Resistant Wire Swg 26 28 30 For Industrial Infrared Dryers
Specifications
Brand Name :
Ohmalloy
Model Number :
OhmAlloy142B
Certification :
SGS, IOS
Place of Origin :
China
MOQ :
10KG
Price :
USD 3-18 per kilogram
Payment Terms :
L/C, T/T,
Supply Ability :
80000 kilograms per week
Delivery Time :
shipped in 7 days after payment
Packaging Details :
Plastic packing inside, wooden box outside , choose the suitable packing, Also it can be customized by the clients' demand.
Chemical Composition :
25%Cr 5%Al balance Fe
Dimension :
8-250mm*0.1-3mm
Material :
Alloy
Shape :
strip
Application :
Industry and household appliances
resistivity(μΩ.m) :
1.42
Tensile Strength (≥ MPa) :
700
Elongation (≥ %) :
20
yield strength (≥ MPa) :
500
density (g/cm3) :
7.1
working temperature(℃) :
1250
OEM :
available
annealing treatment :
hydrogen annealing
surface treatment :
bright Oxidation
certificate :
SGS, IOS
Description

OhmAlloy142B
(Common Name: 0Cr25Al5,Aluchrom-O)

OhmAlloy142B is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.

Typical applications for OhmAlloy142B are used in electric ceramic cooktop,industrial furnace,heaters.

Normal composition%

CPSMnSiCrNiAlFeOther
Max
0.060.0250.0250.70Max 0.6023.0~26.0Max 0.604.5~6.5Bal.-

Typical Mechanical properties(1.0mm)

Yield strengthTensile StrengthElongation
MpaMpa%
50070023

Typical Physical properties

Density (g/cm3)7.10
Electrical resistivity at 20℃(Ωmm2/m)1.42
Conductivity coefficient at 20℃ (WmK)13

Coefficient of thermal expansion
TemperatureCoefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃15

Specific heat capacity
Temperature20℃
J/gK0.46

Melting point (℃)1500
Max continuous operating temperature in air (℃)1250
Magnetic propertiesnon-magnetic


Temperature Factor of Electrical Resistivity

20℃100℃200℃300℃400℃500℃700℃800℃900℃1000℃1100℃1200℃1300℃
11.0021.0051.0081.0131.0211.0381.0401.0421.0441.0461.047


Style of supply

Alloys NameTypeDimension
OhmAlloy142BWWireD=0.03mm~8mm
OhmAlloy142BRRibbonW=0.4~40T=0.03~2.9mm
OhmAlloy142BSStripW=8~250mmT=0.1~3.0
OhmAlloy142BFFoilW=6~120mmT=0.003~0.1
OhmAlloy142BBBarDia=8~100mmL=50~1000
