Specifications
Brand Name :
Ohmalloy
Model Number :
Ni200
Certification :
ISO CE SGS
Place of Origin :
China
MOQ :
5kg
Payment Terms :
L/C, T/T,
Supply Ability :
10000kg/week
Delivery Time :
7-10 days
Packaging Details :
coil
Density: :
8.89
Melting Range: :
1435-1446℃
Chemical composition :
Ni 99.6%
Common Name: :
N6, N4, Pure Nickel, Nickel 200
Shape :
strip
Color :
silver-white
Size :
0.3mm*30mm
Description

0.3mm*30mm Ni200 strip N6 N5 N4 Pure Nickel Strip For Battery ISO Approval

Common Name: N6, N4, Pure Nickel, Nickel 200

OHMALLOY200 are made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp

1. Chemical composition(%)

Grade C Si Mn P S Ni+Co Cu Fe
Nickel 200 <0.15 <0.35 <0.35 <0.01 >99.0 <0.25 <0.40

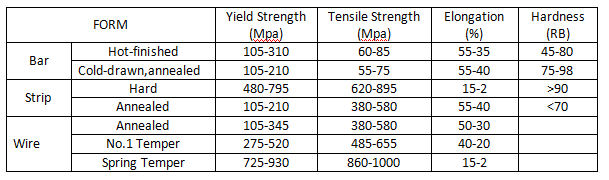

2. Mechnical properties

0.3mm*30mm Ni200 Pure Nickel Strip For Battery Silver White

3.Specification

Strip:Thickness: 0.02mm to 3.0mm ,Width: 1.0mm to 250mm

Wire:Diameter: 0.025mm to 3.0mm

Sheet/Coil:Thickness:0.002-0.125mm

Width in coil:6.00mm max

In plate and straight lengths:12.00mm max

4.Usage

It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

5.Features

Stable performance;Anti-oxidation;Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface condition without spots.

0.3mm*30mm Ni200 Pure Nickel Strip For Battery Silver White
