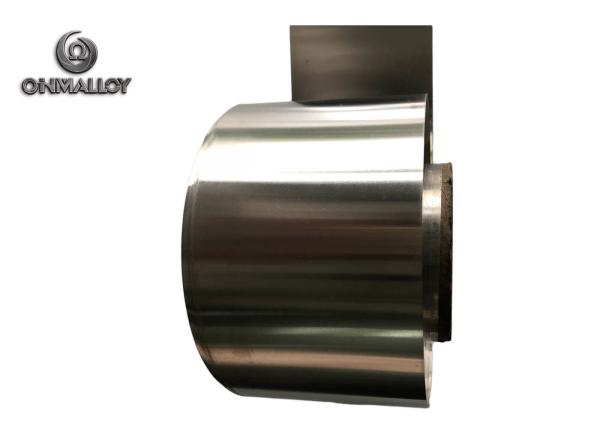

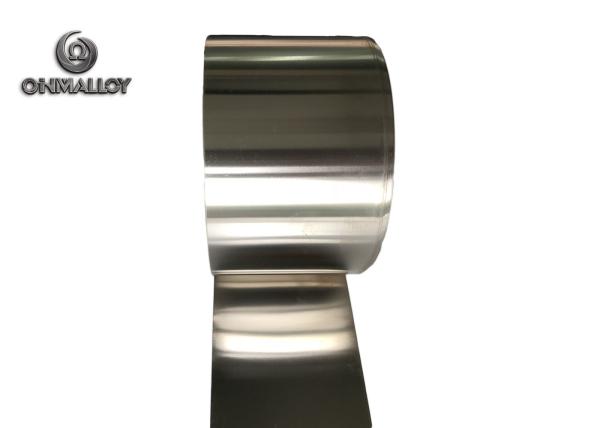

NPX NNX Type N Connector Strip Temperature Measurement Stamping Strip
NPX NNX Type N Connector Strip Temperature Measurement Stamping Strip
NPX NNX Type N Connector Strip Temperature Measurement Stamping Strip
NPX NNX Type N Connector Strip Temperature Measurement Stamping Strip
Specifications
Brand Name :
OHMALLOY/OEM
Model Number :
SP-N-S
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
20 KG
Payment Terms :
L/C, T/T, ,Paypal
Supply Ability :
3000 KG per month
Delivery Time :
3-15working days after payment confirmed
Packaging Details :
Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Product Name :
NiCrSi NiSiMg Type N Strip For Thermocouple Connector Pin Plug Fast Response
Conductor Material :
+NiCrSi -NiSiMg
Strip Size :
Thickness: 0.1-3mm Width:5-200mm
Working Temperature :
0-1000℃
State :
Hard/ 1/4 Hard/ 1/2Hard/ Soft
Package :
Coil Style
Description

NPX NNX Type N connector strip stamping strip Temperature Measurement


TYPE N (NiCrSi Vs.NiCrMg) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.

1. Chemical Composition

Material Chemical composition (%)
Ni Cr Si Mg Al
NP(NiCrSi) bal 13.7-14.7 1.2-1.6 <0.01
NN(NiCrMg) bal <0.02 4.2-4.6 0.5~1.5

2. Physical properties and Mechnical properties

Material

Density(g/cm3)

Melting point℃)

Tensile Strength(Mpa)

Volume resistivity(μΩ.cm)

Elongation rate (%)
NP(NiCrSi) 8.5 1410 >620 100.0 (20℃) >30
NN(NiCrMg) 8.6 1340 >550 33.0(20℃) >35

3. EMF Value range at different temperature

Material EMF value Vs Pt(μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃
NP(NiCrSi) 1755~1813 3910~3976 6313~6383 8880~8959 11552~11654 14307~14433
NN(NiCrMg) 975~1005 1954~1986 2975~3011 4035~4075 5120~5170 6212~6274

EMF value Vs Pt(μV)
700℃ 800℃ 900℃ 1000℃ 1100℃
17129~17275 20010~20178 22951~23139 25943~26149 28972~29194
7288~7362 8318~8402 9281~9373 10159~10261 10948~11060

Thermocouple Extension Cable-Know How


The Compensation Wire Nominal Chemical Composition

Alloy Name Code Nominal Chemical Composition(%)
Cu Ni Cr Si Fe Mg
Copper SPC 100 - - - - -
RPC
KPC
TPC
CuNi0.6 SNC 99.4 0.6 - - - -
RNC
NiCr10 KPX - 90 10 - - -
EPX
NiCr14Si NPX - 84 14.5 1.5 - -
NiSi3 KNX - 97 - 3 - -
NiSi4Mg NNX - 94.5 - 4.5 - 1.0
CuNi40 KNCB 60 40 - - - -
CuNi22 KNCA 78 22 - - - -
CuNi18 NNC 82 18 - - - -
CuNi45 ENX 55 45 - - - -
JNX
TNX
Iron NPC 　 　 　 　 100 　
JPX
KPCA

The Compensation Wire EMF Value Reference

Extension Cable Code Alloy Wire Name Temperature Range(℃) Application Classification Tolerence(μV) Thermocouple Measurement Terminal Temperature(℃)
Precision Grade Normal Grade
SC or RC Cu-CuNi0.6 0-100 G ±30(±2.5℃) ±60(±5.0℃) 1000
0-200 H - ±60(±5.0℃)
KCA Fe-CuNi22 0-100 G ±44(±1.1℃) ±88(±2.2℃) 900
0-200 H
KCB Cu-CuNi40 0-100 G
KX NiCr10-NiSi3 -25-100 G
-25-200 H
NC Fe-CuNi218 0-100 G ±43(±1.1℃) ±86(±2.2℃) 900
0-200 H
NX NiCr14Si-NiSi4Mg -25-100 G
-25-200 H
EX NiCr10-CuNi45 -25-100 G ±81(±1.0℃) ±138(±1.7℃) 500
-25-200 H
JX Fe-CuNi45 -25-100 G ±62(±1.5℃) ±123(±2.5℃) 500
-25-200 H
TX Cu-CuNi45 -25-100 G ±30(±0.5℃) ±60(±1.0℃) 300
-25-200 H ±48(±0.8℃) ±90(±1.5℃)
