Electro Deposition Pure Nickel Strip 0.05mm 0.03mm
Electro Deposition Pure Nickel Strip 0.05mm 0.03mm
Electro Deposition Pure Nickel Strip 0.05mm 0.03mm
Electro Deposition Pure Nickel Strip 0.05mm 0.03mm
Specifications
Brand Name :
OHMALLOY
Model Number :
N6(99,6%)
Certification :
ISO,Rohs
Place of Origin :
China(Shanghai)
MOQ :
20
Price :
negotiable
Packaging Details :

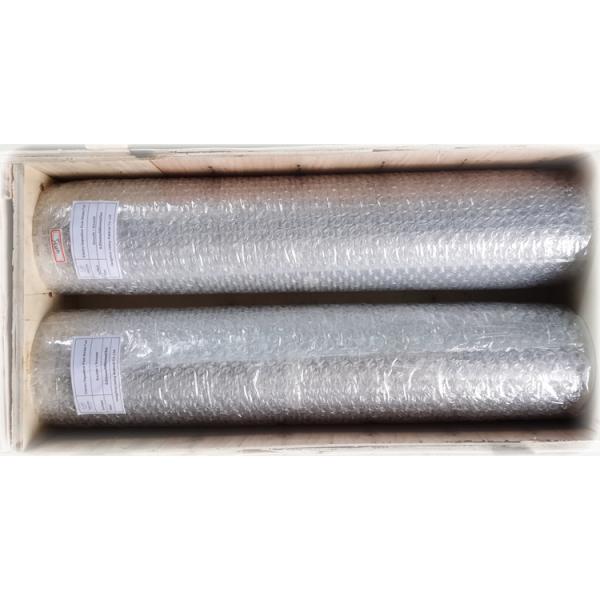

in roll and woodencase outside
Thickness :
0.05mm 0.03mm
Width :
3mm~1200mm
Ni(Min) :
99.6&
Surface :
Bright,Soft
Alloy Or Not :
Not
Shape :
Strip
Description

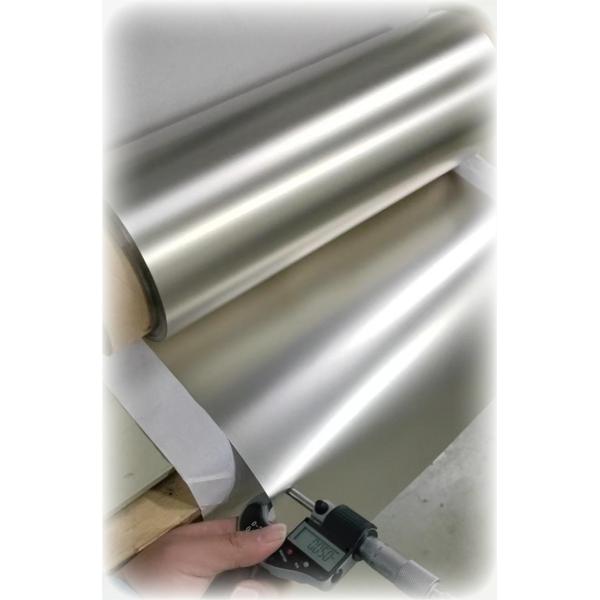

0.05mm 0.03mm Electro Deposition Pure Nickel Strip

Nickel, a metallic element that is approximately silver white, hard, ductile, and ferromagnetic, is highly polished and corrosion-resistant. Has good ductility and moderate hardness. Nickel is a silver white metal with magnetism and good plasticity. A metal element with good corrosion resistance, nickel is approximately silver white, hard and ductile, and has ferromagnetism. It can be highly polished and resistant to corrosion.

Nickel density: 8.9g/cm3

Composition: Nickel (purity ≥ 99.95%)

Thickness: 5-50um (error ± 5%)

Width: 0-1330mm

Length: unlimited

Tensile strength: 1030Rm/MPa

Elongation after fracture: 1.0 A50mm/%

Resistivity: 0.076 Ω · mm2/m

The pure nickel foil produced by the electrodeposition production process has the advantage of high purity, with a purity of over 99.98%. It can be further processed (rolled) to maintain the purity of the material while improving its density and surface finish.

Hard temper: nickel foil around HV 450;

Single sided roughened nickel foil is processed on the basis of soft nickel foil and sub hard nickel foil to produce a roughened layer (thickness 10-15) on one side μ m. Roughness Ra1.5 μ Above m).

Electro Deposition Pure Nickel Strip 0.05mm 0.03mmElectro Deposition Pure Nickel Strip 0.05mm 0.03mm
