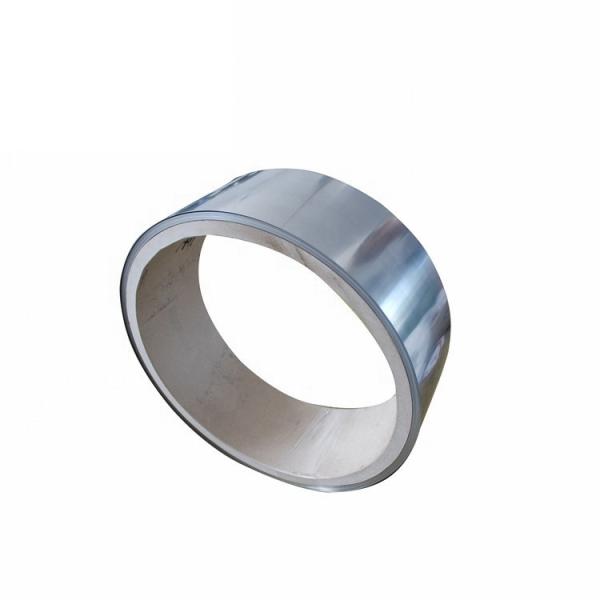

Annealed FeCrAl Alloy Strip FeCrAl13/4 For Heating Element 950 Degree Working Temperature
Annealed FeCrAl Alloy Strip FeCrAl13/4 For Heating Element 950 Degree Working Temperature
Annealed FeCrAl Alloy Strip FeCrAl13/4 For Heating Element 950 Degree Working Temperature
Annealed FeCrAl Alloy Strip FeCrAl13/4 For Heating Element 950 Degree Working Temperature
Specifications
Brand Name :
OHMALLOY
Model Number :
134S06X60BS
Certification :
ISO,SGS
Place of Origin :
China(Shanghai)
MOQ :
5kg
Price :
negotiable
Payment Terms :
T/T, , L/C
Supply Ability :
80000Kg/Week
Packaging Details :
Plastic packing inside, wooden box outside , choose the suitable packing, Alos it can be customized by the clients' demand.
Resistivity :
1.25μΩ.m
Shape :
Wire
Surface :
Oxidized
Application :
Heat Treatment Furnaces
Density :
7.4
Tensile Strength :
630Mpa
Working Temperature :
950
Description

950 degree working temperature 1Cr13Al4 annealed strip FeCrAl13/4 alloy for heating element​

OhmAlloy125
(Common Name:1Cr13Al4,Alkrothal 14,Alloy 750,Ohmalloy 40,Alferon 902,Alchrome 750,Resistohm 125,Aluchrom W,750 Alloy,Stablohm 750.)

OhmAlloy125 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by Stable performance,

Anti-oxidation,Corrosion resistance,High temperature stability,Excellent coil-forming ability,Uniform and beautiful surface condition without spots.It is suitable for use at temperatures up to 950°C.

Typical applications for OhmAlloy125 are used in electric locomotive, diesel locomotive,metro vehicle and high speed moving car etc brake system brake resistor,electric ceramic cooktop,industrial furnace.

Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.12 0.025 0.025 0.70 Max 1.0 12.0~15.0 Max 0.60 4.0~6.0 Bal. -

Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
455 630 22

Typical Physical properties

Density (g/cm3) 7.40
Electrical resistivity at 20℃(Ωmm2/m) 1.25
Conductivity coefficient at 20℃ (WmK) 15

Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 15.4

Specific heat capacity
Temperature 20℃
J/gK 0.49

Melting point (℃) 1450
Max continuous operating temperature in air (℃) 950
Magnetic properties non-magnetic

Cr13Al4 FeCrAl alloy electrical electrothermal furnace wire is characterized by excellent oxidation resistance and very good form stability resulting in

long element life. They are typically used in electrical heating elements in industrial furnaces and home

appliances. FeCrAl alloys have higher service temperature then NiCr alloys,but lower stability and flexibility.

2.Characteristics:
1) The highest working temperature up to 950 degree.
2) Longer working life,and better technical properties
3) Higher surface load.
4) Higher resistivity.
5) Lower density.
6) Free from oxide debris
3. Applications

1Cr13Al4 FeCrAl alloy electrical electrothermal furnace wire is widely used in heat treatment equipment, auto parts, iron and steel manufacturing,

aluminum industry, metallurgical equipment, petrochemical equipment, glass machinery, ceramic machinery,

food machinery, pharmaceutical machinery, power engineering industry, and residential appliances.

Temperature Factor of Electrical Resistivity

20℃ 100℃ 200℃ 300℃ 400℃ 500℃ 600℃ 700℃ 800℃ 900℃ 1000℃ 1100℃ 1200℃ 1300℃
1 1.005 1.014 1.028 1.044 1.064 1.090 1.120 1.132 1.142 1.150 - - -

Style of supply

Alloys Name Type Dimension
OhmAlloy125W Wire D=0.03mm~8mm
OhmAlloy125R Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy125S Strip W=8~250mm T=0.1~3.0
OhmAlloy125F Foil W=6~120mm T=0.003~0.1
OhmAlloy125B Bar Dia=8~100mm L=50~1000
