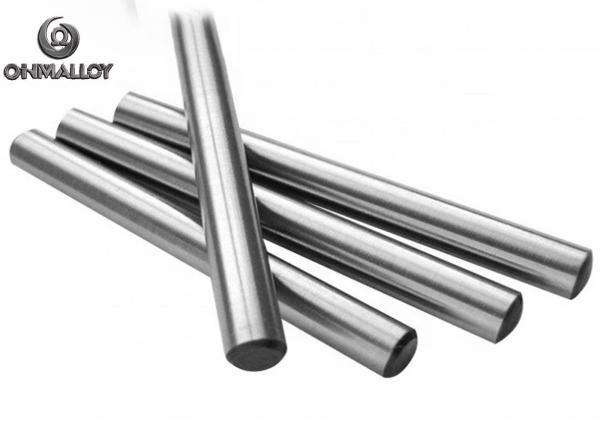

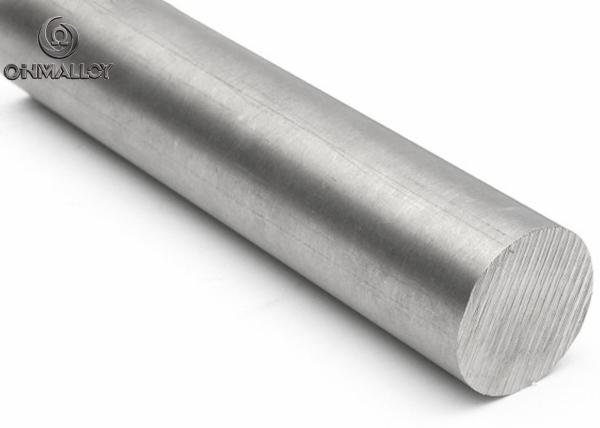

0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
Specifications
Brand Name :
OHMALLOY/OEM
Model Number :
SP-255R
Certification :
ISO9001：2015
Place of Origin :
China
MOQ :
50KG
Payment Terms :
L/C, T/T, , MoneyGram
Supply Ability :
30000 KG per Month
Delivery Time :
5-15 working days after payment confirmed
Packaging Details :
plywood pallet or plywood case
Name :
0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃
Supply State :
Wire/Rod/Plate/Strip
Application :
Induction Rod
Surface :
Bright/Oxidized/Pickled
Working Temperature :
Max Up to 1000℃
Warranty :
3 Years
Description

0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃

Ohmalloy142B(0Cr25Al5)

(Common Name: 0Cr25Al5,Aluchrom-O)

OhmAlloy142B is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.

Typical applications for OhmAlloy142B are used in electric ceramic cooktop,industrial furnace,heaters.

Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.025 0.70 Max 0.60 23.0~26.0 Max 0.60 4.5~6.5 Bal. -

Typical Physical properties

Density (g/cm3) 7.10
Electrical resistivity at 20℃(Ωmm2/m) 1.42
Conductivity coefficient at 20℃ (WmK) 13

Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 15

0Cr25Al5 Rod Similar to A Induction Rod High Temperature Up to 1000℃

Specific heat capacity
Temperature 20℃
J/gK 0.46

Melting point (℃) 1500
Max continuous operating temperature in air (℃) 1250
Magnetic properties non-magnetic
