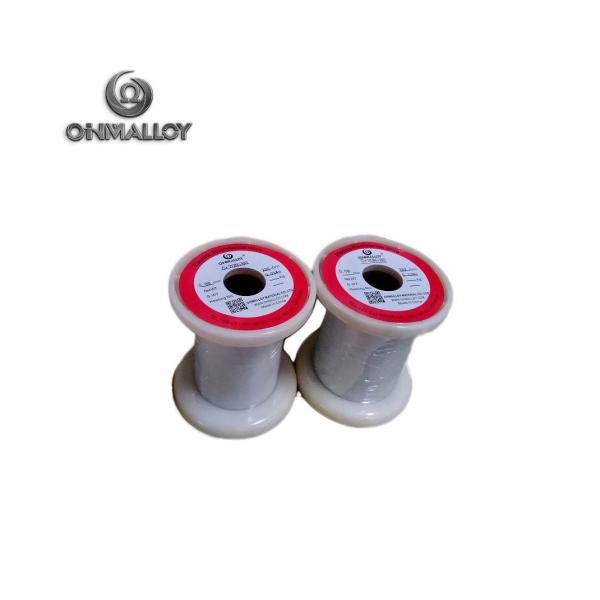

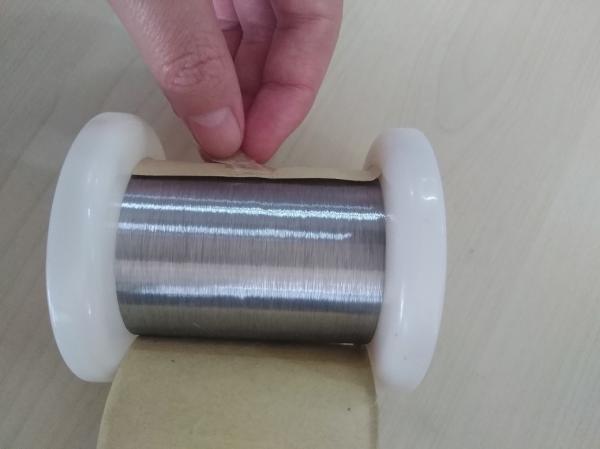

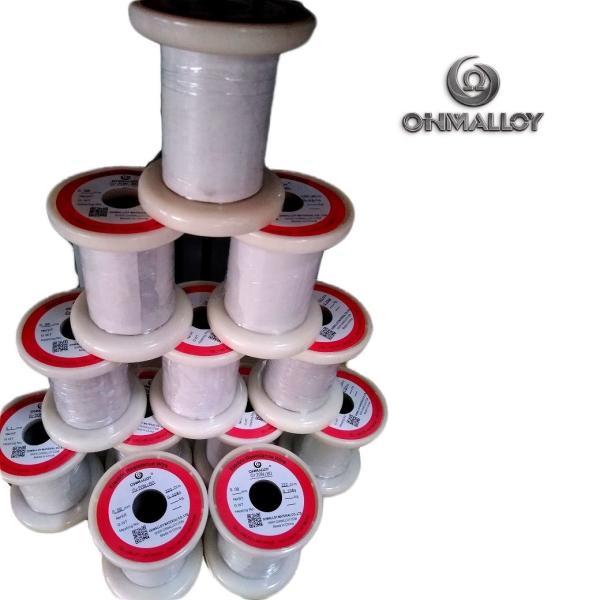

AWG38 Alloy A 0.08mm Nicr 80/20 Super Heating Speed Wire for Electric Ignition Systems
AWG38 Alloy A 0.08mm Nicr 80/20 Super Heating Speed Wire for Electric Ignition Systems
AWG38 Alloy A 0.08mm Nicr 80/20 Super Heating Speed Wire for Electric Ignition Systems
AWG38 Alloy A 0.08mm Nicr 80/20 Super Heating Speed Wire for Electric Ignition Systems
AWG38 Alloy A 0.08mm Nicr 80/20 Super Heating Speed Wire for Electric Ignition Systems
AWG38 Alloy A 0.08mm Nicr 80/20 Super Heating Speed Wire for Electric Ignition Systems
Specifications
Brand Name :
ohmalloy
Model Number :
ohmalloy109
Certification :
SGS, ISO
Place of Origin :
China
MOQ :
5KG
Price :
USD33.50/KG
Payment Terms :
L/C, T/T, , L/C, T/T,
Supply Ability :
2000 kilograms per week
Delivery Time :
shipped in 10 days after payment
Packaging Details :
Coil or customized by the clients' demand.
Chemecial Composition :
Ni80% Cr20%
Dimension :
0.3*8mm
Material :
Ni80Cr20
Shape :
Ribbon
applicaiton :
Heating System
Resistivity(μΩ.m) :
1.09
Ultimate Strength (≥ MPa): :
750
Elongation (≥ %) :
20
Working Temperature: :
1200℃
OEM: :
Available
Sample: :
Free Sample
Surface Treatment :
Bright and soft
Annealing Treatment: :
Hydrogen annealing
Density: :
8.4
Description

AWG38 Alloy A 0.08mm Nicr 80/20 Super Heating Speed Wire for Electric Ignition Systems
OhmAlloy109
(Common Name: Ni80Cr20,Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80.)

OhmAlloy109 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for OhmAlloy109 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.

Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -

Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
420 810 30

Typical Physical properties

Density (g/cm3) 8.4
Electrical resistivity at 20℃(Ωmm2/m) 1.09
Conductivity coefficient at 20℃ (WmK) 15

Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 18

Specific heat capacity
Temperature 20℃
J/gK 0.46

Melting point (℃) 1400
Max continuous operating temperature in air (℃) 1200
Magnetic properties non-magnetic

Temperature Factors Of Electrical Resistivity
20℃ 100℃ 200℃ 300℃ 400℃ 600℃
1 1.006 1.012 1.018 1.025 1.018
700℃ 800℃ 900℃ 1000℃ 1100℃ 1300℃
1.01 1.008 1.01 1.014 1.021 -


Style of supply

Alloys Name Type Dimension
OhmAlloy109W Wire D=0.03mm~8mm
OhmAlloy109R Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy109S Strip W=8~250mm T=0.1~3.0
OhmAlloy109F Foil W=6~120mm T=0.003~0.1
OhmAlloy109B Bar Dia=8~100mm L=50~1000

AWG38 Alloy A 0.08mm Nicr 80/20 Super Heating Speed Wire for Electric Ignition Systems
