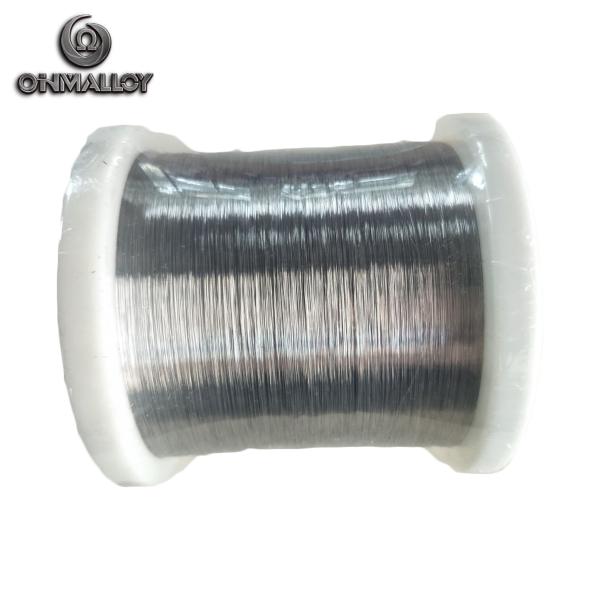

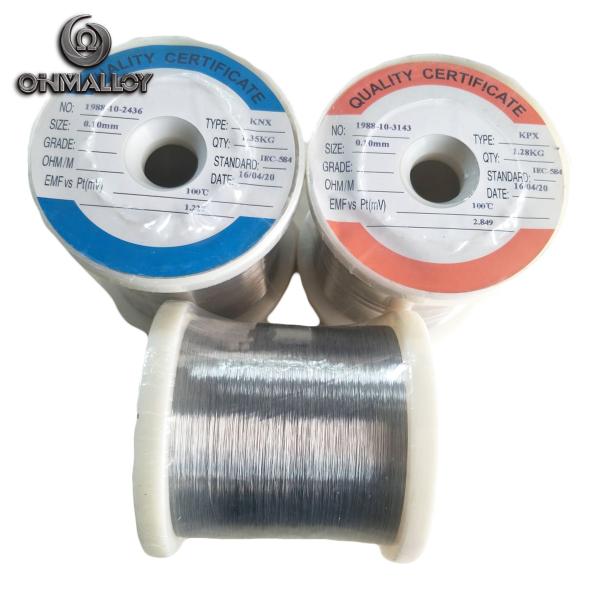

Annealed Chromel Alumel NiCr10 Bare Thermocouple Wire
Annealed Chromel Alumel NiCr10 Bare Thermocouple Wire
Annealed Chromel Alumel NiCr10 Bare Thermocouple Wire
Annealed Chromel Alumel NiCr10 Bare Thermocouple Wire
Annealed Chromel Alumel NiCr10 Bare Thermocouple Wire
Annealed Chromel Alumel NiCr10 Bare Thermocouple Wire
Annealed Chromel Alumel NiCr10 Bare Thermocouple Wire
Annealed Chromel Alumel NiCr10 Bare Thermocouple Wire
Specifications
Brand Name :
OHMALLOY/OEM
Model Number :
SP-K-B-0.81
Certification :
ISO9001:2018
Place of Origin :
China
MOQ :
5KG
Payment Terms :
L/C, T/T, , MoneyGram,Paypal
Supply Ability :
20 tons per month
Delivery Time :
5-18 working days after payment confirmed
Packaging Details :
Spool+paper caron + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Name :
Chromel Alumel K Type Temperature Sensor Wire
Material :
+ Chromel(Ni90Ci10) -Alumel(Ni95Si1.5Al3)
Size :
0.02-12mm
Surface :
Annealed Bright
Accuracy :
Class 1(High)
Package :
Spool+Paper Carton/Coil+Plywood Case
Description

Chromel Alumel NiCr10 Bare Wire For K Type Temperature Sensor Wire High Accuracy 0.81mm

TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.

1. Chemical Composition

Material Chemical composition (%)
Ni Cr Si Mn Al
KP(Chromel) 90 10
KN(Alumel) 95 1-2 0.5-1.5 1-1.5

2. Physical properties and Mechnical properties

Material

Density

(g/cm3)

Melting point℃)

Tensile Strength

(Mpa)

Volume resistivity(μΩ.cm)

Elongation rate (%)

Diameter tolerance(mm)
KP(Chromel) 8.5 1427 >490 70.6(20℃) >10 +/- 0.02
KN(Alumel) 8.6 1399 >390 29.4(20℃) >15 +/- 0.02

Annealed Chromel Alumel NiCr10 Bare Thermocouple Wire

Annealed Chromel Alumel NiCr10 Bare Thermocouple Wire
