FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire
FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire
FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire
FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire
FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire
FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire
FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire
FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire
Specifications
Brand Name :
OHMALLOY/OEM
Model Number :
SP-OHMPM145
Certification :
ISO9001:2018
Place of Origin :
Hangzhou
MOQ :
50KG
Payment Terms :
L/C, T/T, , MoneyGram,Paypal
Supply Ability :
30000KG/Month
Delivery Time :
5-28 working days after payment confirmed
Packaging Details :
Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Name :
FeCrAl OHMPM145 Wire 1400℃ Ceramics Kiln Heating Wire
Type :
Prior to APM
Max Working Temperature :
1450℃
Supply State :
Wire/Ribbon/Strip
Resistivity :
1.45 μ.Ω.m
Warranty :
5 Years
Description

FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire

OHMPM145 alloy is a new product developed after HRE alloy which has been widely used in high temperature electrothermal alloy materials to replace the material APM in recent years. Compared with HRE, its purity and oxidation resistance is further improved and optimized. With special rare earth elements and unique metallurgical manufacturing process, OHMPM145 has been recognized by customers in the field of high temperature heat-resistant fibers around the world. It has been successfully applied in ceramic sintering, diffusion furnace, high power density and high temperature industrial kiln.

Chemical Composition(%)

Grade C Si Cr Al Fe RE
OHMPM145 ≤0.04 ≤0.4 20-23 5.8 Bal. A little

Physical Properties

Density

(g/cm3)

High Temperature Strength at 1000℃

(MPa)

Fast Life at 1350℃ (hour)

According to GB/T13300-91

Emissivity in fully oxidized state
7.1 20 ＞80 0.7

Max. Operating Temperature (℃)

Tensile Strength (Annealed) (N/mm2)

Elongation

(%)

Resistivity at 20℃( μ.Ω.m)

Application
1425 600-800 ＞14 1.45 works as heating wire in Ceramics Kiln/ Heat Treatment Furnace/ Electric Diffusion Furnace under high temperature

Supply State

1. Round Wire(0.15mm-9.0mm)

Φ<1mm,Bright Surface, Spool Package

FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire

1mm<Φ<5mm,Golden Surface, Coil Package

FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire

Φ>5mm,Blue Surface, Coil Package

FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire

2.Flat Wire (Thickness:0.1-0.4mm, Width:0.5-4.5mm), bright surface, spool package

FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire

3.Strip(Thickness: 0.5-2.5mm, Width: 5.0-48mm),polished bright surface, coil package

FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire

Average Linear Expansion Coefficient:

Temperature(℃) 20-250 20-500 20-750 20-1000 20-1200 20-1400
Thermal expansion coefficient×10-6/k 11 12 14 15 / /

Resistance Temperature Coefficient:

Temperature(℃) 700 900 1100 1200 1300
Ct 1.02 1.03 1.04 1.04 1.04

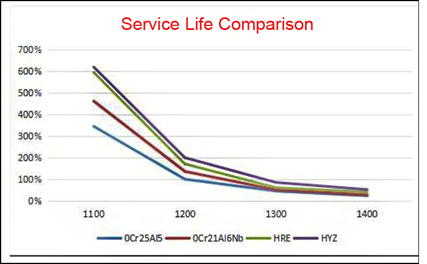

Service Life Comparison

FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire

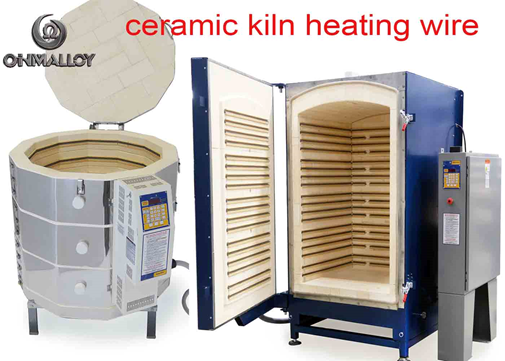

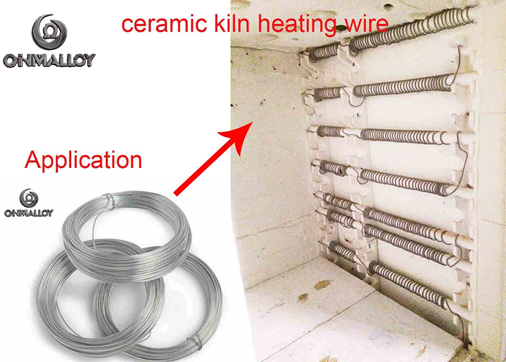

OHMPM145 Application

FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire

FeCrAl OHMPM145 Wire Used in Ceramics Kiln Electric Furnace 1400℃ Heating Element Wire
