Multi Strands Thermocouple Cable Type J PVC Insulated Cable Accuracy Class I
Multi Strands Thermocouple Cable Type J PVC Insulated Cable Accuracy Class I
Specifications
Brand Name :
Ohmalloy/OEM
Model Number :
SP-J-HP-HP-0.5R
Certification :
SGS/RoHs
Place of Origin :
China
MOQ :
50 meters
Price :
USD 0.52-1.85 / Meter
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
100000 meters / month
Delivery Time :
2-5 working days
Packaging Details :
Coil/Spool+paper carton+ wooden pallet
Name :
Thermocouple Wire Type J -10→105°C Multi Strands PVC Insulated Cable Accuracy Class I
Conductor :
+ Iron -Constantan
Insulated Material :
PVC(or customized)
Max working Temperature :
105 degree celsius
Accuracy :
Class I (T±4%)
Length :
100meter/200meter/500meter(customized)
Description

PEF/Fiberglass Insulation Prices Type J Thermocouple Cable Multi Strands 24AWG

TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538°C, and therefore heavier gauge wire is recommended for longer life at these temperatures.

1. Chemical Composition

Material Chemical composition (%)
Ni Cu Si Iron Al
JP(Iron) 100
JN(Constantan) 45 55

2. Physical Properties and Mechnical Properties

Material

Density(g/cm3)

Melting point(℃)

Tensile Strength(Mpa)

Volume resistivity(μΩ.cm)

Elongation rate (%)
JP(Iron) 7.8 1402 >240 12.0(20℃) >20
JN(Constantan) 8.8 1220 >390 49.0(20℃) >25

3. EMF Value Range at Different Temperature

Material EMF value (μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃
JP-JN 5187~5351 10696~10862 16244~16410 21760~21936 27281~27505 32962~33242
EMF value Vs Pt(μV)
700℃ 750℃ 760℃ 800℃ 900℃ 1000℃
38958~39306 42089~42473 42725~43113

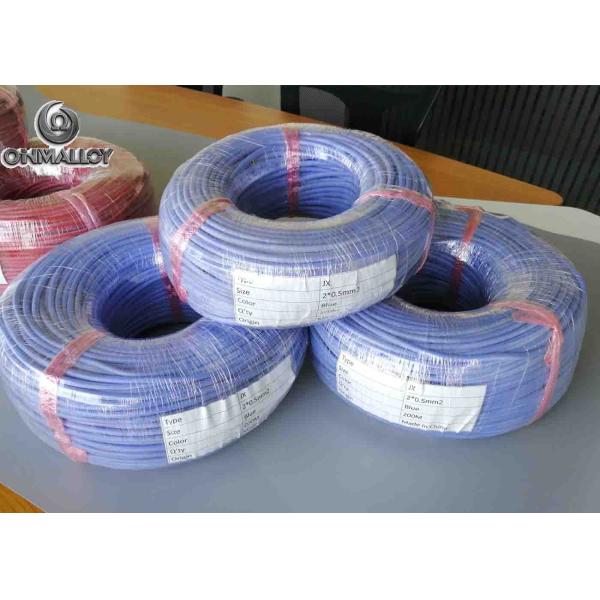

Multi Strands Thermocouple Cable Type J PVC Insulated Cable Accuracy Class I

ReF. The Short Name for Materials

Type Insulation material CODE Inner Shielding CODE JACKET CODE
K FEP FP 　 　 FEP FP
T PFA FA Al foil AL PFA FA
E PVC 70℃ LP copper wire CU PVC 70℃ LP
J PVC 105℃ HP Tinned copper TC PVC 105℃ HP
N Fiberglass 400℃ BL Nickel plated copper NC Fiberglass 400℃ BL
SC Fiberglass600℃ BM Silver plated copper AC Fiberglass600℃ BM
　 Fiberglass700℃ BH 　 　 Fiberglass700℃ BH
　 MICA FIBER 650℃ MA 　 　 　 　
KCA Vitreous Silica 800℃ VS SS 304 wire SS Vitreous Silica 800℃ VS
KCB Silica fiber1000℃ SV Inconel 600 wire 600 Silica fiber1000℃ SV
RTD Ceramic fiber1200℃ CF Inconel 625 wire 625 Ceramic fiber1200℃ CF
　 PTFE PT 　 　 PTFE PT
　 ETFE ET 　 　 ETFE ET
　 KAPTON KP 　 　 KAPTON KP
　 Silicone rubber SR 　 　 Silicone rubber SR
　 Rubber RU 　 　 Rubber RU
　 PE PE 　 　 PE PE
