Specifications
Brand Name :
OHMALLOY
Model Number :
Karma wire
Certification :
ISO CE ROSH
Place of Origin :
CHINA
MOQ :
1kg
Payment Terms :
L/C, T/T,
Supply Ability :
10000KG/week
Delivery Time :
10workdays
Packaging Details :
spool
Application :
Industry
Material :
Copper / Copper Alloy
Shape :
wire
Resistance (μω.m) :
Stable
certification :
ISO CE ROSH
model :
Karma wire
Description

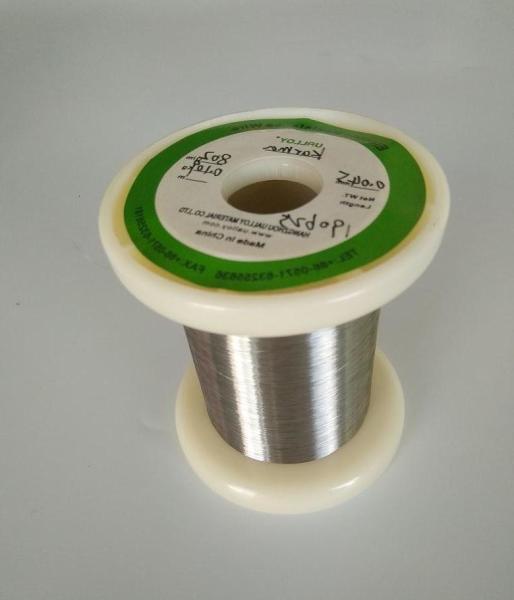

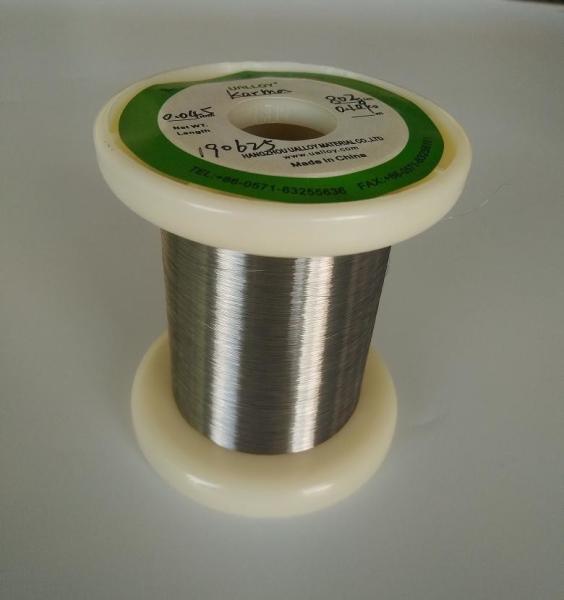

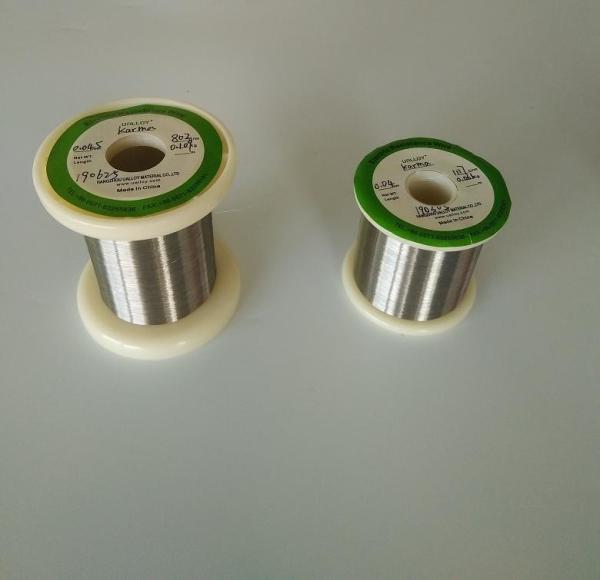

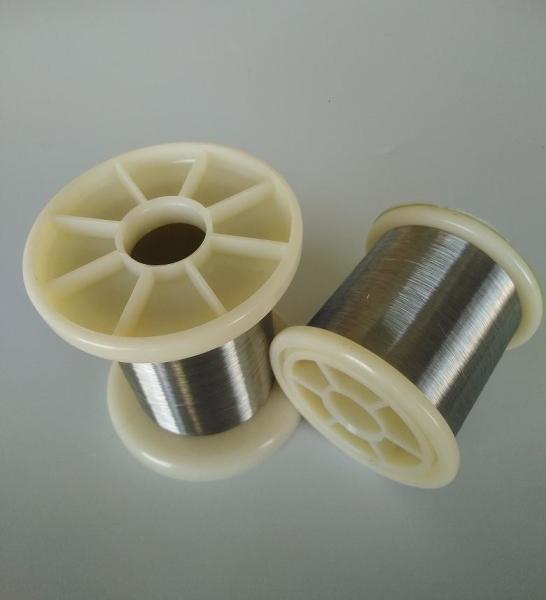

Enameled Karma Wire Copper Based Alloys Stable Resistance For Industry

Enameled Alloy Wire(Karma)
Common Name:(enameled Resistor wire,enameled heating wire,enameled wound wire)

Product Description
These enameled resistance wires have been broadly used for standard resistors, High /Low Voltage Resistor automobile parts, winding resistors, etc.Using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order.Please make use of this production-on-order.

Type of bare alloy wire

Copper-nickel alloy wire, Constantan Wire,CuNi1~CuNi44,pure copper
Ni-Cr Alloy wire NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.
Fe-Cr-Al Alloy wire Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,
Cr21Al6Nb,Cr27Al7Mo2,
Cu-Ni-Mn Alloy wire CuMn12Ni2,CuMn12Ni4,Manganin,
Any copper alloy and nickel alloy is available


Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.


Type of insulation

Insulation-enamelled Name Thermal LevelºC
(working time 2000h)		 Code Name GB Code ANSI.TYPE
Polyurethane enamelled wire 130 UEW QA MW75C
Polyester enamelled wire 155 PEW QZ MW5C
Polyester-imide enamelled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200 EIWH
(DFWF)		 QZY/XY MW35C
Polyamide-imide enamelled wire 220 AIW QXY MW81C




Style of supply

Alloys Name Type Dimension
Enameled-W Wire D=0.018mm~3mm
Enameled-R Ribbon W=0.4~24 T=0.01~0.2mm


Dimension of insulation

D
Mm		 Min thickness of insulation Max OD of Enameled
0.02 0.005 0.009 0.09 0.036
0.022 0.005 0.019 0.032 0.038
0.025 0.006 0.010 0.036 0.042
0.028 0.006 0.010 0.039 0.045
0.030 0.006 0.011 0.042 0.048
0.032 0.006 0.011 0.044 0.050
0.036 0.007 0.012 0.049 0.055
0.040 0.007 0.012 0.053 0.060
0.045 0.008 0.013 0.059 0.066
0.050 0.008 0.014 0.064 0.072
0.056 0.009 0.015 0.071 0.079
0.060 0.009 0.016 0.076 0.084
0.063 0.009 0.016 0.080 0.088
0.071 0.010 0.017 0.089 0.097
0.080 0.011 0.018 0.099 0.108
0.090 0.012 0.019 0.111 0.120
0.100 0.012 0.021 0.122 0.132
0.112 0.012 0.021 0.135 0.146
0.125 0.014 0.023 0.150 0.161
0.140 0.015 0.024 0.166 0.179
0.150 0.016 0.025 0.177 0.191
0.160 0.017 0.028 0.188 0.202
0.180 0.018 0.028 0.210 0.225
0.200 0.019 0.030 0.231 0.248
0.224 0.021 0.032 0.258 0.275
0.250 0.022 0.034 0.285 0.304
0.280 0.024 0.036 0.318 0.338
0.300 0.025 0.037 0.339 0.360
0.315 0.026 0.038 0.356 0.376
0.355 0.027 0.041 0.398 0.420
0.400 0.028 0.043 0.445 0.468
0.450 0.030 0.048 0.498 0.524
0.500 0.031 0.049 0.551 0.578
0.560 0.034 0.052 0.615 0.643
0.600 0.035 0.054 0.657 0.686
0.630 0.038 0.056 0.689 0.718
0.710 0.038 0.059 0.773 0.805
0.00 0.041 0.062 0.869 0.902
0.900 0.043 0.066 0.973 1.010
1.000 0.048 0.070 1.079 1.117
1.120 0.049 0.074 1.205 1.247
1.250 0.053 0.080 1.343 1.387
1.400 0.058 0.085 1.499 1.548
1.500 0.059 0.090 1.605 1.654
