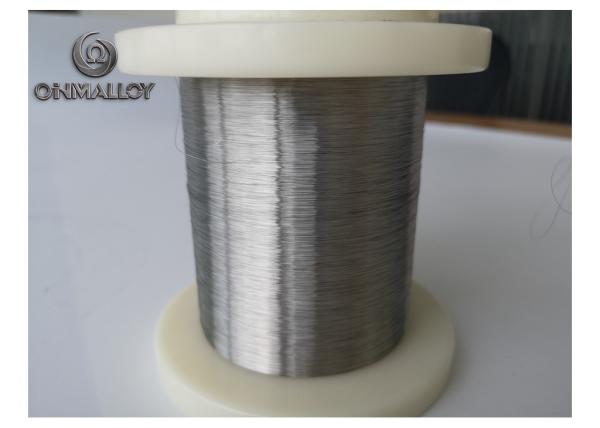

NiCrMo Hastelloy C276 Wire / 0.1mm Alloy Inconel C276 Wire Corrosion Resistance
NiCrMo Hastelloy C276 Wire / 0.1mm Alloy Inconel C276 Wire Corrosion Resistance
NiCrMo Hastelloy C276 Wire / 0.1mm Alloy Inconel C276 Wire Corrosion Resistance
NiCrMo Hastelloy C276 Wire / 0.1mm Alloy Inconel C276 Wire Corrosion Resistance
Specifications
Brand Name :
OHMALLOY
Model Number :
C-276
Certification :
ISO9001:2015
Place of Origin :
China(Shanghai)
MOQ :
50kgs
Price :
negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
50000KG/MONTH
Delivery Time :
7-20 DAYS
Packaging Details :
spool+cartons+cases
Material :
Hastelloy C-Hastelloy C-276
Diameter :
0.1mm
Package :
be packed into cartons,then pallet and case
Application :
Corrosion resistance
Surface :
Bright,soft
Description

0.1mm High quality NiCrMo Hastelloy C-276/INCONEL Alloy C-276 wire

Common name:C-276,INCONEL Alloy C-276,HC-276,Hastelloy C-276,UNS N10276,W.-Nr. 2.4819,ATI C-276,Nicrofer 5716 hMoW-Alloy C-276,NAS NW276

HASTELLOY C276 is a Nickel-chromium-molybdenum wrought alloy,the content of Silicon and Carbon is very less that is considered as the most versatile corrosion resistant alloy.This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in an as welded condition. Alloy C-276 also has excellent resistance to pitting, stress-corrosion cracking and oxidizing atmospheres up to 1038℃. Alloy C-276 has exceptional resistance to a wide variety of chemical environments.

Characteristics

This alloy is one of the few alloys resistant to wet chloride gas, hypochlorite and chlorine dioxide solutions,it has exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides.And it is not prone to grain boundary precipitation in the as welded condition and therefore suitable for many chemical process applications.

Chemical content

Chemical Content(%)
Ni Cr Mn Mo C Si Fe
Max% Bal. 16.5 1.0 17.0 0.01 0.08 7.0
Min% 14.5 15.0 4.0

Mechanical properties

Density ((g/cm3)):8.9

Melting point (℃):1325-1370

Magnetic properties:non-magnetic

Tensile Strength(Mpa):≥690

Yield strength(Mpa):≥275

Elongation(%):≥40%

Hardness(HB):≤100

Applications

Digesters and bleach plants in the paper industry.

Components exposed to sour gas.

Equipment for flue-gas desulfurisation plants.

Evaporators, heat exchangers, filters and mixers used in sulfuric acid environments.

Sulfuric acid reactors.

Organic chloride process equipment.

Equipment for processes utilizing halide or acid catalysts.
