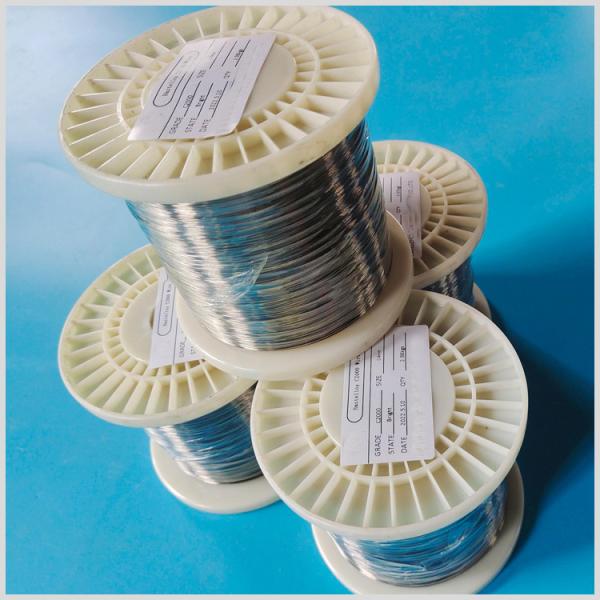

High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
Specifications
Brand Name :
Ohmalloy
Model Number :
C2000
Certification :
ISO,Rohs,Rohs
Place of Origin :
China
Packaging Details :
Sea standard Package
Ageing :
Aging is available
Size :
0.4mm
Surface :
Bright
Property :
With good Corrosion resistance
Application :
catalytic system
Grade :
Hastelloy C2000
Description

High temperature Hastelloy C-2000 N06200 2.4675 wire in 0.4mm

Description

Hastelloy X (UNS NO6002)

Hastelloy X features and application field overview:

The alloy is a nickel base superalloy with high iron content strengthened mainly by solid solution of chromium and molybdenum. It has good oxidation resistance and corrosion resistance. It has medium to durable and creep strength under 900℃. It is suitable for the manufacture of combustion chamber parts and other high-temperature parts of aero-engine. It can be used for a long time below 900℃ and its short-time working temperature can reach 1080℃.

Hastelloy X similar brand:

GH3536 GH536 (China), NC22FeD (France), NiCr22FeMo (Germany), Nimonic PE13 (UK)

Chemical composition

Alloy brand % Ni Cr Fe Mo Co W C Mn S Al Si Ti
Hastelloy
X		 Min Bal 20.5 17.0 8.0 0.5 0.2 0.05
Max 23.0 20.0 10.0 2.5 1.0 0.015 1.0 0.015 0.15 1.0 0.7

Physical properties:

Density

g/cm3

 Melting
℃		 Thermal
conductivity
λ/(W/m·℃)		 Specific heat
capacity
J/kg·℃		 Modulus of
elasticit
Gpa		 Resistivity
μΩ·m

Coefficient of linear

Expansion

a/10-6℃-1
8.28

1295

1381

 13.38(100℃) 372.6 199 1.18 12.1(20~100℃)

Mechanical properties

(minimum value of mechanical properties at 20℃)

Heat treatment

method

Tensile strength

b/Mpa

Yield strength

P0.2/MPa

 Elongationδ/% Hardness HBS

Solution

treatment

 690 275 30 ≥241

Production execution standard

Standard bar forging Plate(strip) wire pipe

USA association

for materials and testing

 ASTM B572 ASTM B435

ASTM B622

ASTM B619

ASTM B626
USA technical specification for aerospace materials AMS 5754 AMS 5754 AMS 5536 AMS 5798 AMS 5587

USA society of mechanical

engineers

 ASME SB572 ASME SB435

ASTM SB622

ASTM SB619

ASTM SB626

High Temperature Hastelloy Wire Precision Alloys N06200 0.4mm
