Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation
Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation
Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation
Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation
Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation
Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation
Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation
Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation
Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation
Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation
Specifications
Brand Name :
OHMALLOY
Model Number :
K type
Certification :
ISO CE ROSH
Place of Origin :
CHINA
MOQ :
100meter
Payment Terms :
L/C, T/T
Supply Ability :
10000m/week
Delivery Time :
3-5workdays
Packaging Details :
coil
Type :
Insulated
Application :
KX Thermocouple
Conductor type :
Solid
Insulation material :
Fiberglass
Temperature range :
-200~1200
Theory :
Temperature Sensor,Thermocouple Sensor
Insulation :
PVC,PFA,Silicon
Jacket :
Fiberglass
Description

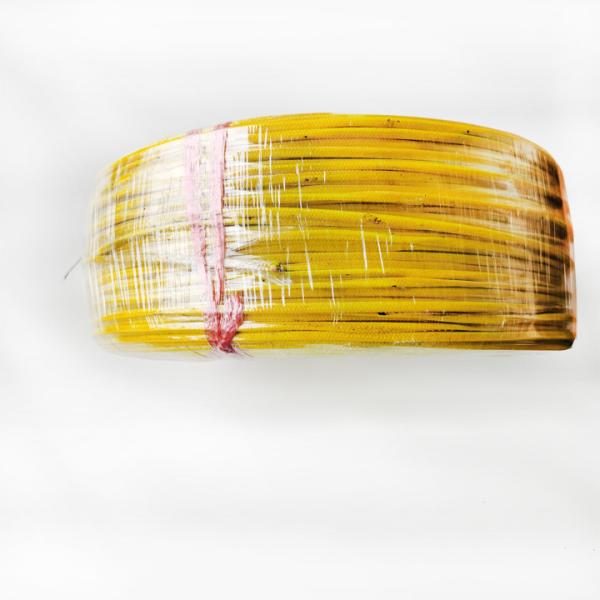

1.29mm*2 K type thermocouple extension cable with yellow fiberglass insulation

Specifications:
1. Style:Compensation Wire
2. Thermocouple J wire
Thermocouple J wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Thermocouple variety and index

Thermocouple Variety and Index
Variety Type Measurement Range(°C)
NiCr-NiSi K -200-1300
NiCr-CuNi E -200-900
Fe-CuNi J -40-750
Cu-CuNi T -200-350
NiCrSi-NiSi N -200-1300
NiCr-AuFe0.07 NiCr-AuFe0.07 -270-0


3 . Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire
Dimensions / Tolerance mm ) : 4.0+/-0.25

Fiberglass Jacket Extension Thermocouple Cable With Yellow Fiberglass Insulation

Color code & initial calibration tolerances for thermocouple wire:

Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor		 Jacket Temperature Range Standard
Limits		 Special
Limits
Iron(+) vs.
Constantan(-)		 J White/Red Brown 0°C to +285°C
285°C to +750°C		 ±2.2°C
± .75%		 ±1.1°C
± .4%
CHROMEL(+) vs.
ALUMEL(-)		 K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C		 ± 2%
±2.2°C
±2.2°C
± .75%		 ±1.1°C
± .4%
Copper(+) vs.
Constantan(-)		 T Blue/Red Brown -200°C to -65°C
-65°C to +130°C
130°C to +350°C		 ± 1.5%
±1°C
± .75%		 ± .8%
± .5°C
± .4%
CHROMEL(+) vs.
Constantan(-)		 E Purple/Red Brown -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C		 ± 1%
±1.7°C
±1.7°C
± .5%		 ±1°C
±1°C
± .4%
± .4%


Color Code & Initial Calibration Tolerance for Extension Wire:

Extension type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor		 Jacket Temperature Range Standard
Limits		 Special
Limits
Iron (+) vs. Constantan(-) JX White/Red Black 0°C to +200°C ±2.2°C ±1.1°C
CHROMEL (+) vs. ALUMEL (-) KX Yellow/Red Yellow 0°C to +200°C ±2.2°C ±1.1°C
Copper(+) vs. Constantan(-) TX Blue/Red Blue -60°C to +100°C ±1.1°C ± .5°C
CHROMEL(+) vs. Constantan(-) EX Purple/Red Purple 0°C to +200°C ±1.7°C ±1.1°C


PVC-PVC Physical Properties:

Characteristics Insulation Jacket
Abrasion Resistance Good Good
Cut Through Resistance Good Good
Moisture Resistance Excellent Excellent
Solder Iron Resistance Poor Poor
Service Temperature 105ºC continuous
150ºC single		 105ºC continuous
150ºC single
Flame Test Self-extinguishing Self-extinguishing

FAQ

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.

Product tags

thermoplastic insulated cable

,

thermosetting insulated cables

,

fluoroplastic insulated cable
Send your message to this supplier
Send Now
