Specifications
Brand Name :
OHMALLOY
Model Number :
Type B/S/K
Certification :
ISO ROHS
Place of Origin :
China(Shanghai)
MOQ :
50kg
Price :
negotiable
Payment Terms :
, L/C, T/T
Supply Ability :
20000T/Year
Delivery Time :
7-20days after your deposit received
Packaging Details :
IN Wooden box
Name :
Thermocouple ceramic tube
Shape :
Tube
Grade :
type B,type S,type K
Measuring range: :
0~1800C
Thermowell diameter: :
16mm, 20mm, 25mm
Customized support: :
OEM, ODM, OBM
Description

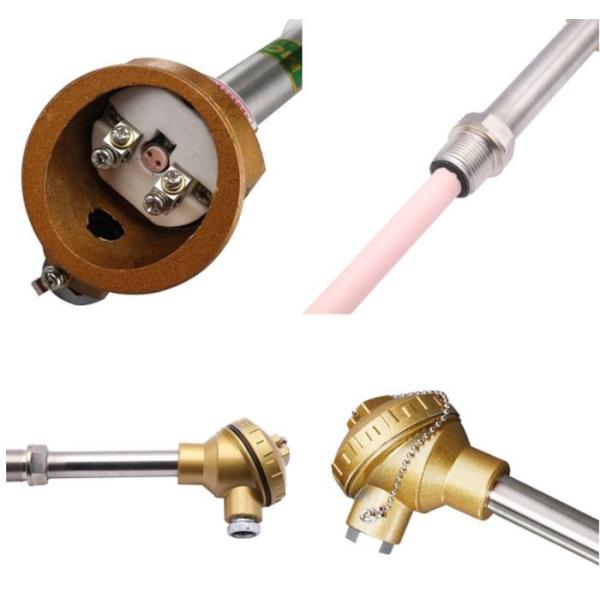

Type B/S/K thermocouple with ceramic tube

Calibration grade

Tolerance: ClassⅠ, Class Ⅱ

Electrical interface:

M20×1.5,M22×1.5,1/2NPT (M30×1.5 and M36×2)

Connector screw

Screw size:M12×1.5,M16×1.5,M27×2,G1/2,G3/4,1/2NPT

(Ceramic protection tube) Thermcouple

Thermocouple grade Model Grade Temperature range ℃ Spec Thermal response time
τ 0.5(s)
OD mm Protection tube material
Simplex type B WRR-130 B 0~1800 φ16 Alundum tube <150
Simplex type B WRR-131 B 0~1800 φ25 Alundum tube <360
Duplex type B WRR2-130 B 0~1800 φ16 Alundum tube <150
Duplex type B WRR2-131 B 0~1800 φ25 Alundum tube <360
Simplex type S WRP-130 S 0~1600 φ16 Ceramic <150
Simplex type S WRP-131 S 0~1600 φ25 Ceramic <360
Duplex type S WRP2-130 S 0~1600 φ16 Ceramic <150
Duplex type S WRP2-131 S 0~1600 φ25 Ceramic <360
Simplex type K WRN-133 K 0~1100 φ20 Ceramic <240
Duplex type K WRN2-133 K 0~1100 φ20 Ceramic <240
Simplex type K WRN-132 K 0~1100 φ16 Ceramic <240


Remarks:
1) Non-insertion tube material: SS304 or SS316 or SS310

2) Dia φ25mm tube is double-layer ceramic

3) We also can make the special tube as per customer’s design
