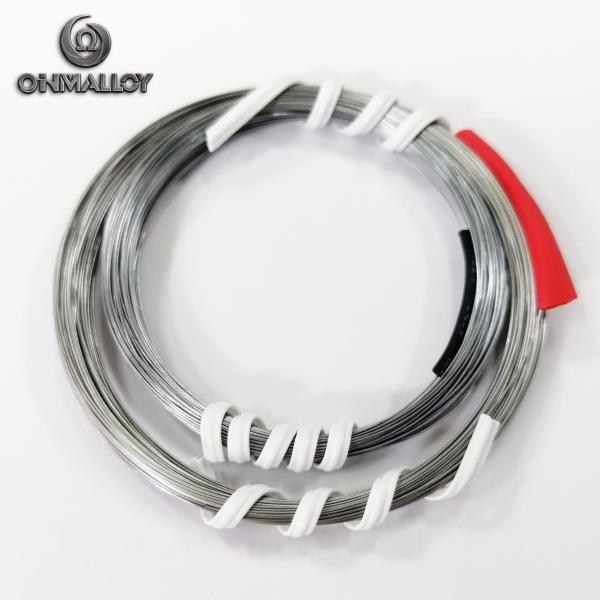

Heating Bare Thermocouple Wire PtRh13 Platinum Rhodium Wire
Heating Bare Thermocouple Wire PtRh13 Platinum Rhodium Wire
Heating Bare Thermocouple Wire PtRh13 Platinum Rhodium Wire
Heating Bare Thermocouple Wire PtRh13 Platinum Rhodium Wire
Heating Bare Thermocouple Wire PtRh13 Platinum Rhodium Wire
Heating Bare Thermocouple Wire PtRh13 Platinum Rhodium Wire
Heating Bare Thermocouple Wire PtRh13 Platinum Rhodium Wire
Heating Bare Thermocouple Wire PtRh13 Platinum Rhodium Wire
Specifications
Brand Name :
OHMALLOY/OEM
Model Number :
SP-PtRh
Certification :
ISO9001:2018
Place of Origin :
China
MOQ :
10 meters
Price :
USD10-20 per meter
Payment Terms :
L/C, T/T, , MoneyGram
Supply Ability :
30KG per Month
Delivery Time :
5-18 working days after payment confirmed
Packaging Details :
Spool+paper case + wooden case/plastic packing+papre case+ wooden box outside(or customized)
Name :
PtRh10 PtRh13 PTRh30/6 Platinum Rhodium Wire
Conductor :
PtRh10 PtRh13 PTRh30/6
Metal Type :
Platinum Rhodium Wire
Application :
Thermocouple Wire/High Temperature Heating wire
Accuracy :
Class I
Melting Point :
1769-1927℃
Package :
PE bag or Spool
Description

Type S B R Thermocouple Wire
Thermocouple Type
Alloy Code
Chemical Composition (%)
Recommend Long Working Temperature
Pt (platinum)
Rh (Rhodium )
Type S
SP(Pt90Rh)
90
10
0-1300℃
SN(Pt)
100
Type B
BP(Pt70Rh)
70
30
0-1600℃
BN(Pt94Rh)
94
6
Type R
RP(Pt87Rh)
87
13
0-1300℃
RN(Pt)
100
Thermocouple Type
Long Working Temperature℃
Max Short Working Temperature℃
Type S
1300
1600
Type R
1300
1600
Type B
1600
1700
Physical parameter
Item
Pt90Rh
Pt
Pt87Rh
Pt70Rh
Pt94Rh
Melting Point℃
1847
1769
1860
1927
1826
Density(g/cm3)
20.00
21.46
19.61
17.60
20.60
Weight per meter/g (Φ0.5mm)
3.93
4.21
3.82
3.45
4.04
Resistivity at 20℃/µΩ∙cm
18.9
10.4
19.6
19.0
17.5
Average temperature coefficient of resistance(0-1200℃)/(10-4/℃)
14
31
13.3
13.3
20.6
Tensile Strength/MPa
314
137
344
483
276
Elongation Rate(L0=100mm)/%
35
40
35
30
35
Temperature Tolerance
Thermocouple Type
Accuracy Grade
Testing
Temperature Range/℃
Allowable Deviation/℃

Type S(Type R)
I
0-1100
+/-1
1100-1600
+/-【1+(t-1100)*0.3%】
II
0-600
+/-1.5
600-1600
+/-0.25%*t
Type B
II
600-1700
+/-0.25%*t
III
600-800
+/-4
800-1700
+/-0. 5%*t
“T”is the measuring terminal temperature
