KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable
KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable
KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable
KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable
KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable
KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable
KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable
KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable
Specifications
Brand Name :
OHMALLOY
Model Number :
KX-FG-FG-SSB
Certification :
ISO9001-2008
Place of Origin :
China(Shanghai)
MOQ :
100meters
Price :
negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
500000meters/month
Delivery Time :
10 days
Packaging Details :
100m/spool, 500m/roll
Conductor :
+Chromel, -Alumel
Conductor dia :
180AWG
Size :
0.5mm2
Jacket material :
PFA
Color :
brown, yellow, red
Package :
100m/roll
Standard :
ANSI96.1 or IEC 584-2
Description

KX-FG-FG-SSB 0.5mm2 round shape thermocouple extension cable

Type K( CHROMEL vs ALUMEL) is used in oxidizing, insert or dry reducing atmospheres.Exposure to Vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres.Reliable and accurate at high temperatures.

1. Style:Extension Wire
2. Thermocouple extension wire


Thermocouple wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration +/-
Conductor 		Jacket Temperature Range Standard
Limits 		Special
Limits
Iron(+) vs.
Constantan(-) 		J White/Red Brown 0°C to +285°C
285°C to +750°C 		±2.2°C
± .75% 		±1.1°C
± .4%
CHROMEL(+) vs.
ALUMEL(-) 		K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C 		± 2%
±2.2°C
±2.2°C
± .75% 		±1.1°C
± .4%
Copper(+) vs.
Constantan(-) 		T Blue/Red Brown -200°C to -65°C
-65°C to +130°C
130°C to +350°C 		± 1.5%
±1°C
± .75% 		± .8%
± .5°C
± .4%
CHROMEL(+) vs.
Constantan(-) 		E Purple/Red Brown -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C+900°C 		± 1%
±1.7°C
±1.7°C
± .5% 		±1°C
±1°C
± .4%
± .4%

Thermocouple variety and index

Thermocouple Variety and Index

Variety
Type
Measurement Range(°C)

NiCr-NiSi
K
-200-1300

NiCr-CuNi
E
-200-900

Fe-CuNi
J
-40-750

Cu-CuNi
T
-200-350

NiCrSi-NiSi
N
-200-1300

NiCr-AuFe0.07
NiCr-AuFe0.07
-270-0

Globle thermocouple color standards:
KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable

Products

KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable

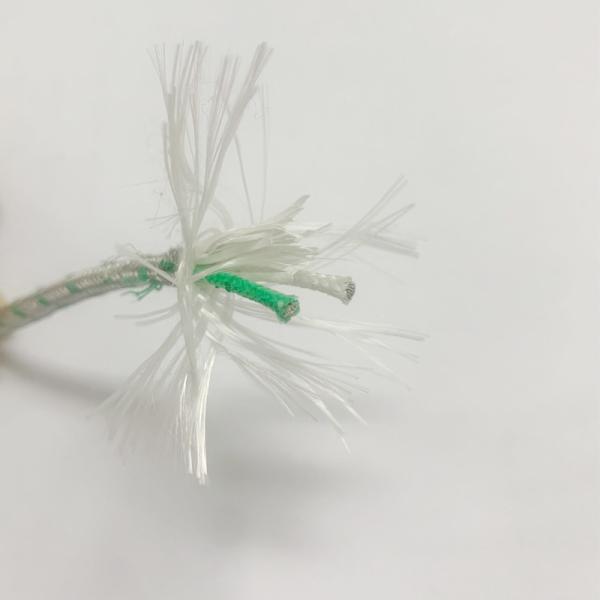

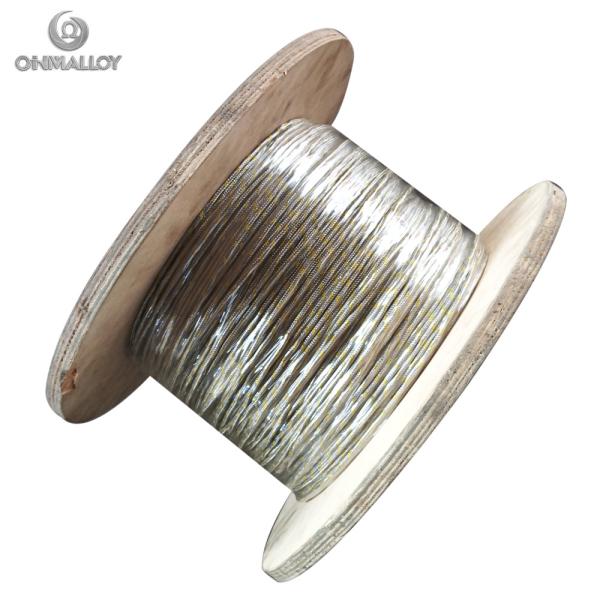

Item No: K-BL-BL-SS-0.5R

Conductor Type:K+:Chromel & k-:Alumel

Diameter:0.3mm*7/2(0.5mm2)

Insulated Material:Fiberglass 400℃(+Yellow;-Red)

Jacket Material:Fiberglass 400℃

Braiding Material:Stainless Steel(Trace:Yellow)

Quantity:500M

KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension CableKX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable

KX-FG-FG-SSB 0.5mm2 Round Shape Thermocouple Extension Cable

FAQ:

1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?

We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
