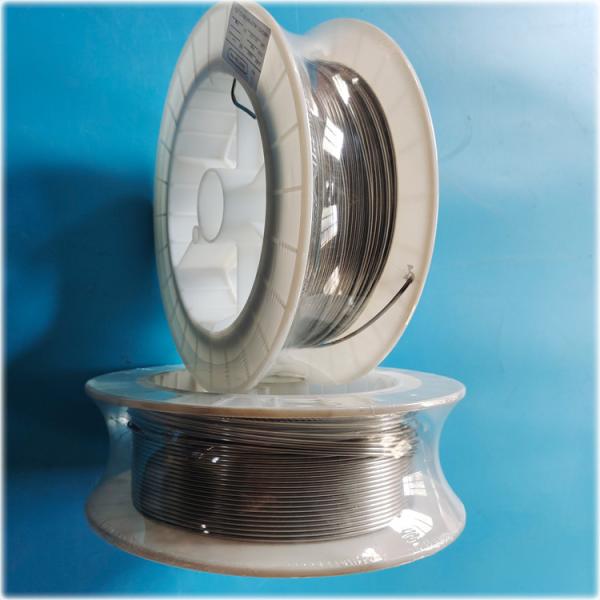

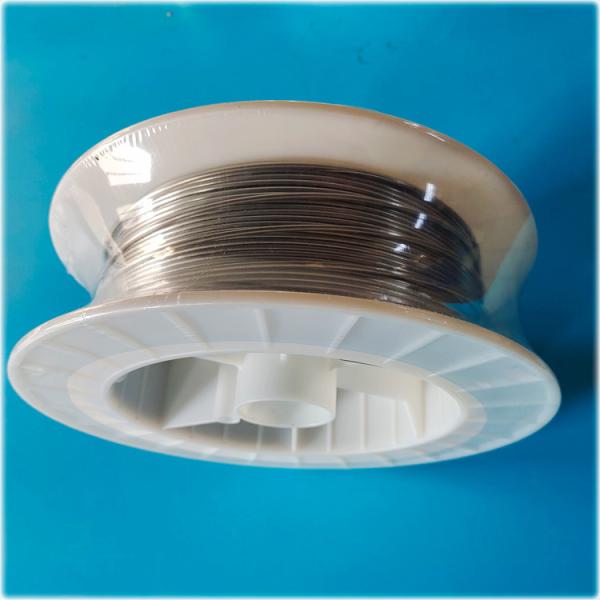

SS420 Stainless Steel Thermal Spray Wire 1.6mm
SS420 Stainless Steel Thermal Spray Wire 1.6mm
SS420 Stainless Steel Thermal Spray Wire 1.6mm
SS420 Stainless Steel Thermal Spray Wire 1.6mm
SS420 Stainless Steel Thermal Spray Wire 1.6mm
SS420 Stainless Steel Thermal Spray Wire 1.6mm
Specifications
Brand Name :
ohmalloy
Model Number :
ohmalloy 109
Certification :
ISO
Place of Origin :
China
MOQ :
5kgs
Price :
negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
5000KG/WEEK
Delivery Time :
5-8 Working days
Packaging Details :
ctn
Shape :
wire
Application :
thermal spray
Chemical composition :
Cr,Ni
Material :
nichrome
Diameter :
1.6mm
Surface :
bright and soft
Condition :
Soft
Product name :
resistance wire
Resistivity :
1.09±0.05μΩ.m
Density :
8.4g/cm3
Description
SS420 Stainless Steel Thermal Spray Wire 1.6mm

PRODUCT OVERVIEW

SS 420 is stainless steel wire, specifically designed for arc spray processes.SS 420 forms a dense, well bonded coating, with excellent wear resistance and good corrosion resistance. It is widely used for machine elements repair, dimensional restoration, and wear resistant application. SS 420 low shrink rate characteristics, allows for increased coating thickness on parts requiring heavier coatings.

Chemical Composition:

Grade Chemical Composition(%)
SS420 Cr Si Mn C Fe
13 1 1 / Balance

Typical Characteristics:

Typical Hardness Bond Strength Deposit Rate Deposit Efficiency Machinability
HRC 40~45 6500 psi 10 lbs/hr/100A 70% Good

Size&Packing:

Diameter Dimension Tolerance Packing Wire Weight
1/16”(1.6mm) +0/-0.05 D 300 Spool 15kgs(33 lbs)/Spool
2.0mm +0/-0.05 D 300 Spool 15kgs(33 lbs)/Spool
1/8”(3.17mm) +0/-0.05 Coil Form

20-400kgs/coil



SS420 Stainless Steel Thermal Spray Wire 1.6mmSS420 Stainless Steel Thermal Spray Wire 1.6mm

Typical Application for 0Cr20Ni80(Tafa 06C) Thermal Spray Wire:
1. Infrastructure such as bridges, trestles, water towers, wind turbines, pipelines
2. Marine and offshore applications, such as bridges, hulls for ships and tankers, offshore wind turbines
3. Corrosion Under Insulation (CUI)
Boilers and Digesters

Product Chemical Composition Available Sizes Comparable Products Hardness and Bond Strength Typical Characteristics and Applications
Name
NiAl95/5 Nickel Aluminum 1.6mm, 2.0mm Tafa 75B Bond Arc® 78 Rb High temperature resistance
Bond Arc® Metco 8400 9746 PSI Oxidation and abrasion resistant
Ni 5Al Metco 450 Dense coatings
NiCr80/20 Nickel Chrome 1.6mm, 2.0mm Tafa 06C 90 Rb Machinable
Ni 80 Cr 20 Praxair 80/20 7324 PSI Heat Oxidation Resistance
Metco Nickel #33 Oxygen barrier under ceramic coatings
Monel 400 Monel 1.6mm, 2.0mm Tafa 70T 80-84 Rb Marine corrosion protection
Ni 27 Cu 2.0Fe 1.5Mg Praxair Monel 4307 PSI Print rolls
Metco Monel
NiAl80/20 Nickel Aluminum 1.6mm, 2.0mm,
3.17mm		 Tafa 79B 55-80 Rb High temperature resistance
Ni 20Al Metco 405-1 Oxidation and abrasion resistant
Metco 405, 405NS 8949 PSI Dense coatings

NiCr80/20 Thermal Spray Wire(Tafa 06C) Chemical Composition:

Ni Cr
80% 20%


Mechanical Properties:

Coating Hardness HRB 92
Bonding Strength 7324 PSI
Deposit Rate 11 lbs/hr/100A
Condition Solid Wire
Diameter 1.6mm(14 ga),3.2mm
Package Size 10kg,15kg,customized as client’s demand

Specification of wire: 1.6mm, 3.2mm, 15kg/spool

Products&Package:
SS420 Stainless Steel Thermal Spray Wire 1.6mm
