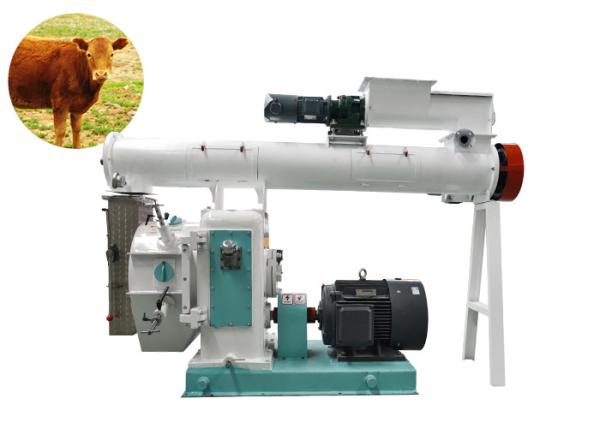

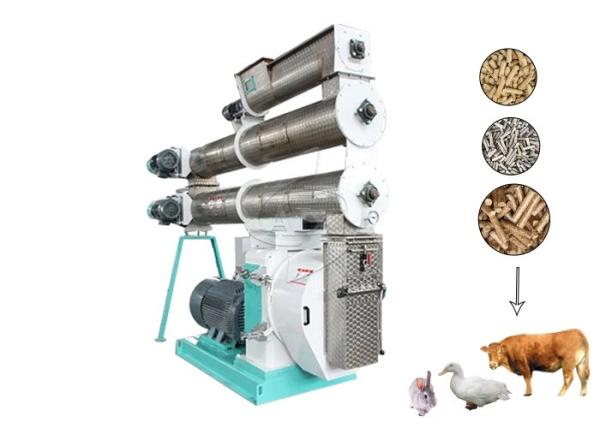

2-5t/H Animal Feed Pellet Machine Compact Structure For Chicken Farm
2-5t/H Animal Feed Pellet Machine Compact Structure For Chicken Farm
2-5t/H Animal Feed Pellet Machine Compact Structure For Chicken Farm
2-5t/H Animal Feed Pellet Machine Compact Structure For Chicken Farm
Specifications
Brand Name :
AIX
Model Number :
SZLH350
Certification :
ce
Place of Origin :
china
MOQ :
1 set
Price :
USD5000-30000/set
Payment Terms :
L/C, , T/T, Western Union
Supply Ability :
300 sets per months
Delivery Time :
15 working day after payment
Packaging Details :
woodencase or container
Name :
poultry feed machinery
Pellet size :
1.5-10mm
Motor :
siemens
Funtion :
Producing Animal Feeds Pellets
Power :
55kw
Inner diameter of die :
350mm
Description

2-5t/h poultry feed machinery for chicken farm making pellet

Poultry feed machinery is for making cattle, geese, pig, duck, chicken, sheep, rabbit, and other animals, livestock and poultry feed. 2-4mm diameter chick feed and pig feed .2-5mm rabbit feed , 4-8mm cattle or sheep feed pellets. pellet length can be adjusted.

Raw material: such as corn, broom corn, wheat, beans, oil seed meal and other materials.

We can do Turnkey projects for you. According to your site and your requirement,we can design the flowchart for you.

Main parameters:

Item Technical parameters and performance index
SZLH250 SZLH320 SZLH350 SZLH400 SZLH420 SZLH508
Capacity (t/h) 0.5-1 2-5 2-7 3-12 3-14 4-20

Power

(Kw)

 Main machine 15 37 55 75/90 90/110 110/132/160
Screw feeder 0.55 0.75 0.75 1.5 1.5 1.5
Conditioner 2.2 2.2 3 5.5 5.5 11
Inner diameter of die (mm) φ250mm φ320mm φ350mm φ400mm φ420mm φ508mm
Effective width of die (mm) 120mm 120mm 120mm 120mm 120mm 150mm

Rotary

(rpm)

 Die 328 328 328 248 248 248
Screw feeder 12-120 12-120 12-120 12-120 12-120 12-120
Conditioner 300 300 300 270 270 270
Pellet size (mm) φ2—φ10mm φ2—φ10mm φ2—φ10mm φ2—φ10mm φ2—φ10mm

φ2—

φ10mm


Features:

1. The feed raw material are ripened and sterilized due to the vapour steam. which can improve the digestibility of the feed, promote the absorption, increase the feed meat ratio and reduce the production cost.the conditioner is made of stainless steel.

2. Stainless steel door cover and feed hopper, manganese steel blade, high-end pellet machine cutter seat, granulator main shaft, hoop hollow shaft are all made of material 40Cr forging parts.

3. Compact structure, beautiful appearance, high yield, less consumption, easy to use, maintenance and quick.

4. Feeding system of the Small Animal Feed Mill Plant adopts electromagnetic speed regulating control, speed control, convenient and full capacity to adapt to the different material requirements.

5. Stainless steel conditioner,304 stainless steel,used for feed ripening,sterilization,improve,water resistance and output.

6. 304 stainless steel paddles,precise angledesign,reasonable blade layout,corrosion resistance.

7. All motors are siemens motor.

2-5t/H Animal Feed Pellet Machine Compact Structure For Chicken Farm

2-5t/H Animal Feed Pellet Machine Compact Structure For Chicken Farm

Turnkey projects:

2-5t/H Animal Feed Pellet Machine Compact Structure For Chicken Farm
