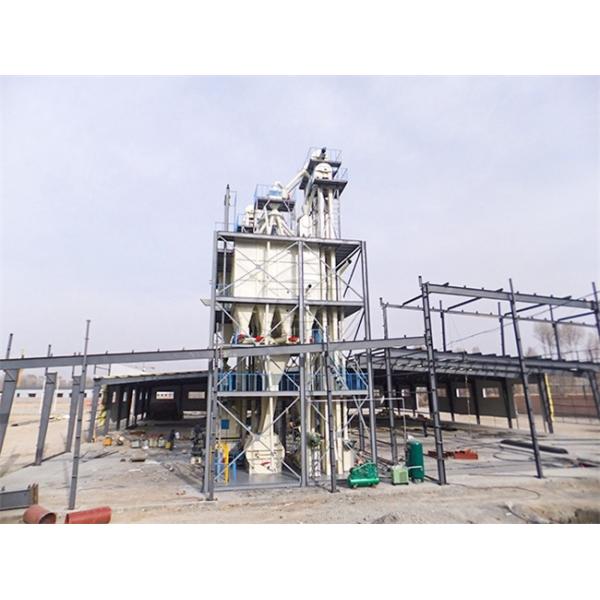

12 ton per hour turnkey automatic chicken cattle poultry animal feed processing plant

The production line is automatically heated by the friction of the machine itself during production and processing, so that the material is gelatinized, matured, granulated and cooled once. The surface of the package can be clean and smooth, the hardness is moderate, and it is easy to seal and store. The particle thickness can be customized according to the needs of the user. It is adjusted within 1.8mm-10mm and is suitable for processing pellets such as pig, cow, sheep, rabbit, chicken, duck and fish. The surface of the particles is smooth and the hardness is moderate, which is convenient for sealing and storage.

Main component machine

1.crusher

Water droplet mill features:
1. It can be used for ordinary crushing or fine crushing. It is widely used in large and medium-sized feed mills, food factories, alcohol plants, citric acid plants, etc., to crush various production materials;
2. The hammer screen gap can be adjusted to achieve coarse crushing or fine crushing, and it can be used in one machine;
3. It can be equipped with speed governor feeder, belt conveyor feeder and variable frequency speed regulation self-cleaning impeller feeder.

2.mixer

Feed mixing system features:
The mixing speed is fast, multi-level cross-mixing, fast, short time, no dead ends. The double-opening device is quick and clean. Mixing time per batch: 0.5-2.5min, quick discharge, convenient, usually 10 to 30 seconds to finish a batch of materials.

3.Bucket lift feeder.
Bucket lift feeder, fast, no blockage.

4.Ring mold granulator

Ring mold granulator features:
The utility model has the advantages of simple structure, wide adaptability, small occupied area and low noise; the particle formation process can denature the pancreatic enzyme resistance factor in grains and beans, reduce the adverse effects on digestion, and can kill various parasite eggs and Other pathogenic microorganisms that reduce various insect and digestive diseases.

5.Counterflow cooler
Counterflow cooler product features:
1. Using the principle of countercurrent cooling, the particles are cooled sufficiently and evenly;
2. Adopting a unique sliding valve type discharging mechanism to discharge materials, smooth discharge, stable and reliable operation;
3. The temperature of the pellet after cooling is not higher than room temperature 3-5 ° C, the precipitation rate is not less than 3-3.5%;
4. Mainly suitable for the cooling of pellets.

6.Grading sieve
Grading sieve product features:
1. The screen surface pressing mechanism adopts fast and reliable pressing device to make the screen surface compact and convenient to replace. The feeding part adopts the pressure door adjusting mechanism to make the material evenly distributed on the screen surface to achieve the best sifting. Effect ;
2. The fully enclosed sieve structure is supported by a rubber shock absorber, so that during use, no dust flies and the body has no vibration;
3. Large output, good grading effect, high degree of automation, low noise and less maintenance.

7.Automatic packaging machine
Automatic metering and packaging machine, fast packaging speed, small packaging error and good packaging effect.

We will provide you with professional services, planning venues, guiding installation, personnel training, process design, and formulation.
