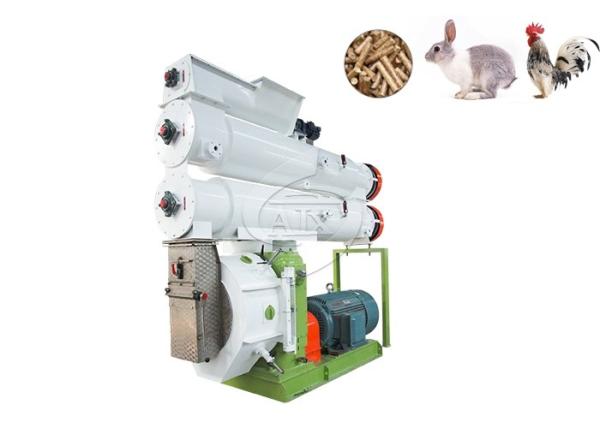

1.5-10mm Animal Feed Pellet Machine Adopt Durable Stainless Steel Material
1.5-10mm Animal Feed Pellet Machine Adopt Durable Stainless Steel Material
1.5-10mm Animal Feed Pellet Machine Adopt Durable Stainless Steel Material
1.5-10mm Animal Feed Pellet Machine Adopt Durable Stainless Steel Material
1.5-10mm Animal Feed Pellet Machine Adopt Durable Stainless Steel Material
1.5-10mm Animal Feed Pellet Machine Adopt Durable Stainless Steel Material
Specifications
Brand Name :
AIX
Model Number :
SZLH420
Certification :
ce
Place of Origin :
china
MOQ :
1 set
Price :
USD5000-30000/set
Payment Terms :
L/C, , T/T, Western Union
Supply Ability :
300 sets per months
Delivery Time :
15 working day after payment
Packaging Details :
woodencase or container
Name :
machines used in feed processing
Pellet size :
1.5-10mm
Motor :
siemens
Funtion :
Producing Animal Feeds Pellets
Inner diameter of die :
420mm
Power(w) :
90kw
Application :
poultry and animal farm
Usage :
animal and poultry farm
Description

1.5-10mm machines used in feed processing for animal and poultry farm

Pellet mill is the mainly machine of production the feed pellet,widely used in feed factory,animal farm,etc. It can make poultry feed,shrimp feed,animal feed,etc.The pellet size from 1.5-10mm.The pellet length can be adjusted.

Animal feed processing with conditioner, so the machine need the steam to soft the material first to kill the bacteria and improve the quality and capacity of final feed pellets.It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material, such as corn, broom corn, wheat, beans, oil seed meal and other materials .

If you need ,we can supply Turnkey project for you.According to your site and requirement ,our engineer will make the flowchart for you.

Main parameters:

Item Technical parameters and performance index
SZLH250 SZLH320 SZLH350 SZLH400 SZLH420 SZLH508
Capacity (t/h) 0.5-1 2-5 2-7 3-12 3-14 4-20

Power

(Kw)

 Main machine 15 37 55 75/90 90/110 110/132/160
Screw feeder 0.55 0.75 0.75 1.5 1.5 1.5
Conditioner 2.2 2.2 3 5.5 5.5 11
Inner diameter of die (mm) φ250mm φ320mm φ350mm φ400mm φ420mm φ508mm
Effective width of die (mm) 120mm 120mm 120mm 120mm 120mm 150mm

Rotary

(rpm)

 Die 328 328 328 248 248 248
Screw feeder 12-120 12-120 12-120 12-120 12-120 12-120
Conditioner 300 300 300 270 270 270
Pellet size (mm) φ2—φ10mm φ2—φ10mm φ2—φ10mm φ2—φ10mm φ2—φ10mm

φ2—

φ10mm


Features:

1. Feeder and conditioning device of the Animal Feed Mill Plant and the feeding chute of the livestock feed pelletizing machine adopt stainless steel material, durable use.

2. Stainless steel conditioner,304 stainless steel,used for feed ripening,sterilization,improve,water resistance and output.

3. 304 stainless steel paddles,precise angledesign,reasonable blade layout,corrosion resistance.All motors are siemens motor.

4. Stainless steel door cover and feed hopper, manganese steel blade, high-end pellet machine cutter seat, granulator main shaft, hoop hollow shaft are all made of material 40Cr forging parts.

5. Main driving adopt imported SKF(NSK) bearing and NAK oil seal.

6. Pellet mill can be equipped with double-layer, three-layer folder conditioner or double shaft track conditioner to meet different needs of producing high grade livestock, poultry feed.

1.5-10mm Animal Feed Pellet Machine Adopt Durable Stainless Steel Material

1.5-10mm Animal Feed Pellet Machine Adopt Durable Stainless Steel Material

Our project:

1.5-10mm Animal Feed Pellet Machine Adopt Durable Stainless Steel Material
