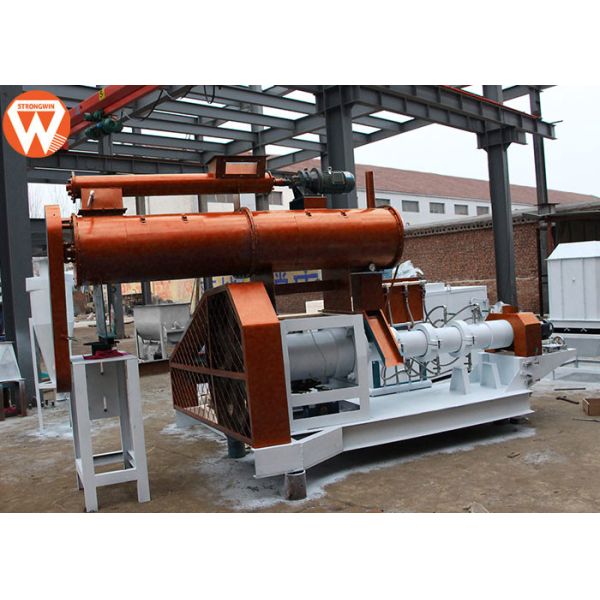

High Capacity Floating Fish Feed Plant 1.8T/H With 0.4-0.8MPa Steam Boiler
High Capacity Floating Fish Feed Plant 1.8T/H With 0.4-0.8MPa Steam Boiler
High Capacity Floating Fish Feed Plant 1.8T/H With 0.4-0.8MPa Steam Boiler
High Capacity Floating Fish Feed Plant 1.8T/H With 0.4-0.8MPa Steam Boiler
Specifications
Brand Name :
Strongwin
Model Number :
DSP160 Fish Feed Pellet Making Plant
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets per year
Delivery Time :
10-30 working days after deposit
Packaging Details :
Wooden Case or In Container
Plant name :
1.8T/H Floating And Sinking Fish Feed Pellet Making Plant For Sale
Product capacity :
1.8-2t/h
Main machine :
crusher,mixer,extruder,dryer,spary,cooler machine
Application :
Aqua fish shrimp feed and pet food
Pellet size :
0.9-15mm
Packing and shipping :
As Customers need
Description

1.8T/H Floating And Sinking Fish Feed Pellet Making Plant For Sale

Detailed Description of Fish Feed Pellet Making Plant

● Raw material: The feed pellets include animal protein and plant protein. Plant protein comes from corn, rice, wheat, soybean, peanut cake powder, etc; Animal protein is from fish meal, shrimp meal, crab meal, sleeve-fish meal and so on you can add other ingredient according to requirements and eating habits of animals.

● Mainly Involved processes: Material grinding, material mixing, pellets extruding, pellets drying, and pellet packing. The whole Fish Feed Production Process can be highly automatically controlled.

Introduction of Fish Feed Pellet Making Plant

The wet type Fish Feed Pellet Making Plant is equipped with a boiler which can continuously providing hot steam. It can produce all kinds of floating or sinking aqua feed for fish,

shrimp, crab, loach, bullfrog, etc, and can produce many kinds of pet feeds for cat, dog, and etc. The pellet size can be from 0.9-15mm to feed different size fishes. High capacity and top quality products, our fish feed pellet machine is a preferred choice for medium or large size feed processing factory and aquaculture farm.

Technical Parameters of Fish Feed Pellet Making Plant

Main Technical Parameters of Main equipments of DSP160-B Fish Feed Pellet Making Plant
Name Power(kw) Capacity(kg/h)
Screw conveyor 3 2000-2500
Hammer mill 45 2000-2500
Level ground dragon 1.5 2000-2500
Pulse dust collector 2.2 2000
Bucket elevator 3 2000-2500
Buffer hopper 1.5-1.8 m³
Pneumatic gate 2000-3000
Ribbon mixer 15 1000kg/batch
Vertical mixing machine 2.2 1.3m³
Feed extruder Main motor power:90 Feeding power:1.5 Conditioner power:4 Cutting power: 3 1800-2000
Pneumatic conveying device Fan power: 4 Discharger power:1.1 2000-2500
Dryer Mesh belt motor power:
5.5 kw
Feeding motor power:
0.75 kw
Exhaust fan power: 1.5 kw The circulation fan power:
0.55 kw The required steam:0.5MPa		 2000
Rotary spray oil seasoning cylinder Main motor power:2.2 Oil pump power:0.55 Heating power: 1.5 2000-2500
Counter flow cooler Fan power: 4.0kw 1000
Automatic packer 1.1 ≤300 bag/h 1-50kg/bag
Steam boiler 0.4-0.8MPa 1t/h
Electric control system
Air compressor 2.2
