Specifications
Brand Name :
Strongwin
Model Number :
SZLH420
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 sets per Year
Delivery Time :
6-10 working days
Packaging Details :
In Container
Product name :
Two-Layer Conditioner Broiler Feed Pellet Machine
Motor :
Siemens Motor
Bearing :
SKF Bearing
Voltage :
220v,380v, or Customized
Raw Materials :
wheat, maize, soybean, grass etc
Can make feed for :
pig,cow, sheep etc
Pellet Size :
1.5-12mm
Capacity :
10t/h
Description

High Capacity Low Consumption Chicken Pellet Machine With Siemens Motor SKF Bearing

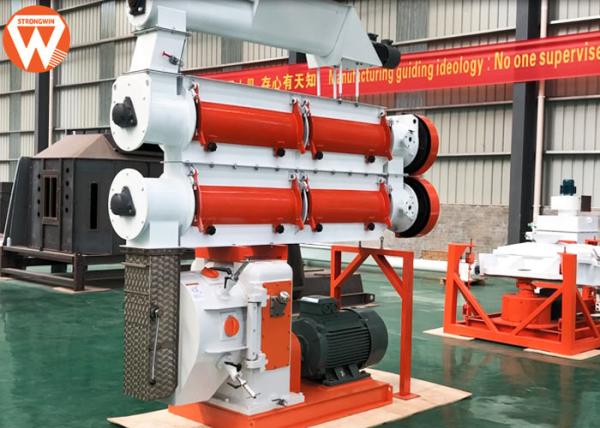

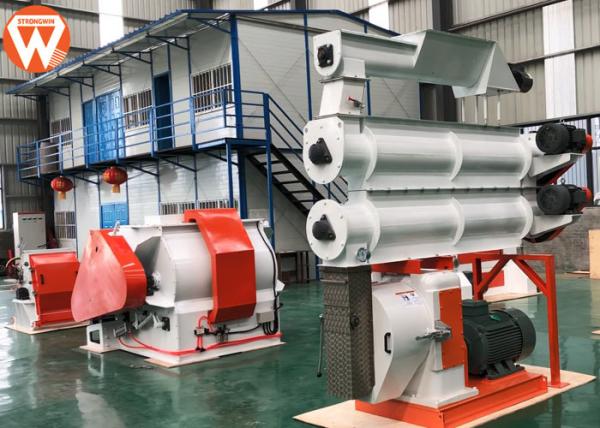

Introduction of chicken pellet machine

SZLH series Pellet Mil takes both advantages of belt and gear machines, improve the weakness, and meanwhile make the pellet production more efficient, faster and save more energy, which has made great contribution to pellet mill.

Currently it has been formed pelletizing series including livestock and poultry feed, ruminant feed and aquatic feed.

Advantage of SZLH chicken pellet machine

1).Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production;

2). The interlock device, outer machine discharging device and over-load protection device work together to ensure the safety and reliability;

3).Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation chamber.

4). The cooking time and result are highly improved by the extended stainless steel feeding conditioner with the axial inlet steam.

5). The circulating lubrication oil system is specially designed to ensure the bearings in good condition.

6). The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner are options according to your requirements.

Technical Parameters of chicken pellet machine

Items SZLH400
Production Capacity 3-8t/h
Power of Main Motor 90kw
Power of Feeding Screw Motor 1.5kw
Power of conditioner Motor 3kw
Diameter of ring die Φ400mm
Speed of feeding screw 12-120rpm
Speed of stirrer 350r/min
Pellet specification φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm
Amount of roller 2
Diameter of roller Φ190mm
Shaping rate of pellet ≥ 95%
Pulverization rate of pellet ≤12%
Stability of pellet in the water ≥20min
Noise (dB(A)) ≤90dB(A)
Working temperature of ring die ≤85℃
Working pressure of steam 0.1-0.4Mpa
Steam consumption(t/h) ≥0.3
Temperature of steam(℃) 130-150℃
Voltage 3phase 380V,50Hz Can be customized)
Control cabinet Included

High Capacity feed pellet making machine / Chicken Pellet Machine With Siemens Motor SKF Bearing
