200kw Livestock Poultry Feed Production Line 10T/H Yield 0.9-10mm Pellet Size
200kw Livestock Poultry Feed Production Line 10T/H Yield 0.9-10mm Pellet Size
Specifications
Brand Name :
Strongwin
Model Number :
10t/h feed line
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per year
Delivery Time :
16-30 working days after deposit
Packaging Details :
Wooden Case or In Container
Machine name :
Turn Key Project Solution Poultry Livestock Feed Pellet Production Line
Yield :
10T/H
Motor :
Siemens
Bearing :
SKF
Pellet size :
0.9-10mm
Total Power :
200kw
Main machine :
crusher,mixer,pellet,crumbler,cooler,screener machine
Application :
Poultry animal livestock feed
Description

Turn Key Project Solution Poultry Livestock Feed Pellet Production Line

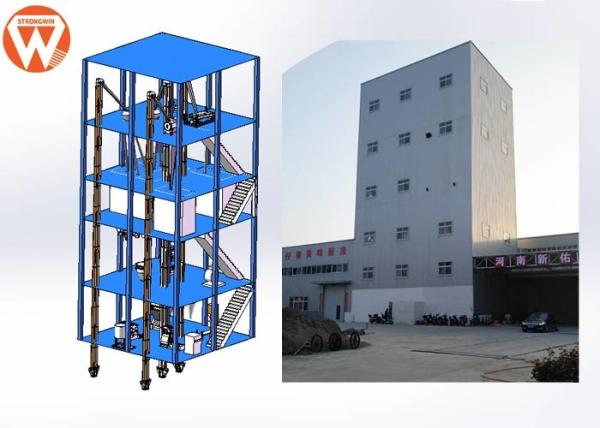

Brief Introduction of Poultry Livestock Feed Pellet Production Line

The full line including: Raw materials of receiving,cleaning,grinding system, System of batching&mixing, System of pelleting & cooling, System of packing, System of Auxiliary(Air compressor, Steam supply system, Liquid adding machine, Electricity Hoist)

Raw materials: corn and corn gluten, wheat bran, soybean hull, grass and alfalfa etc. Grass, hay, wheat straw

Application: The final pellet can apply to Poultry feed, livestock cattle sheep pig feed.(According Customers need, the plan will different)

Technical Parameters of Poultry Livestock Feed Pellet Production Line

10 T/H Automatic Feed Pellet Production Line
No. Product name Model Power(kw)
1. material receiving section
102 pulse dust collector TBLFa.18
105 granule material clean sieve SCY80 0.75
106 permanent magnetic TXCT25
108 powder cleaner SCQZ80 11
109 permanent magnetic TXCT25
2. material grinding section
206 Impeller feeder SYLW3 1.5
207 series tear-circle hammer mill SDH-ZW50C 132
210 seal screw conveyor SWLL25 6
3. batching and mixing section
313 double shaft high efficient mixer SSHJ.2 18.5
314 scrapper conveyor TGSU25 3
315 Bucket elevator TDTG48.28 5.5
316 powder material clean sieve SCQZ75×65×1 40 7.5
317 permanent magnetic drum TXCT30
4. pelleting section
408 Pellet machine SZLH420 110
410 counter-current cooler SKLN6 1.5
410-1 crusher SSLG20×170 15
415 classic sieve SFJH125 3
5. packing section
501 Finished product bin
506 automatic packing scale SDBY-P
507 seal conveyor machine TFKB40 3
509 pulse dust collector TBLFa.24
510 seal machinery 0.75
6.auxiliary system
601 Air compressor 22
603 liquid adding machine SYTV32 3
604 liquid adding pipeline
606 boiler system

200kw Livestock Poultry Feed Production Line 10T/H Yield 0.9-10mm Pellet Size
