Prefab Two Story Steel Structure Warehouse For Feed Mill Industry
Prefab Two Story Steel Structure Warehouse For Feed Mill Industry
Specifications
Brand Name :
Strongwin
Model Number :
Steel Structure
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
one
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50tons per day
Delivery Time :
15 working days after deposit
Packaging Details :
40 feet container
Characteristic :
Prefab Two Story Steel Structure Warehouse In Feed Mill Industry
Grade :
Q235 Q355
Type :
Light
Application :
Feed Mill Industry
Pillar & Beams :
H type steel
Purlin :
C type steel
Surface Treatment :
Painted & Hot dip galvanized
Window :
Aluminiumn Alloy, PVC, Sandwich Panel etc
Description

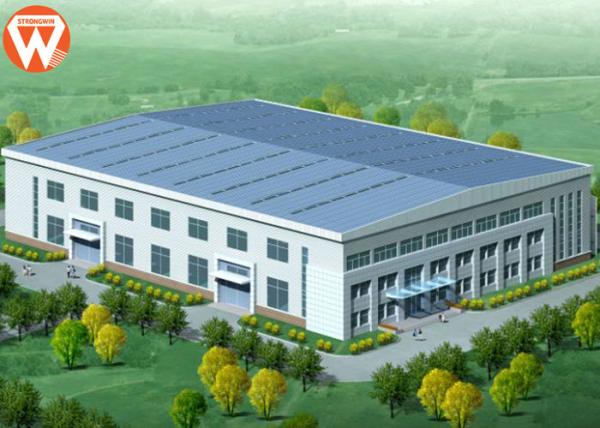

Prefab Two Story Steel Structure Warehouse In Feed Mill Industry

Description of Steel Structure Warehouse

Our prefabricated steel structure workshop are pre-cut, pre-drilled, and ready for quick and efficient assembly. Steel buildings work for virtually any building application:Agricultural/ Barns/ Aircraft Hangars/ Welding Shops/ Commercial center/ Garages/ Storage/ Suburban Buildings/ Warehouses/ Workshops etc.

Steel structure building ware-house/workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.

Advantages of Steel Structure Warehouse

1. Light-weightness and more resistance to earthquakes and strong winds.
2.Sustainability and less lifecycle cost thanks to low maintenance costs and highest quality materials, such as galvanized steel.
3.Shorter construction period with the help of modularity and error-free prefabrication of building elements.
4.Environment-friendly thanks to reusable steel members and minimized wastes by efficient usage of materials in the factory.
5.Functionality, provided by relocatable, replaceable and load carrying walls and efficient usage of the space.

Technical parameters of Steel Structure Warehouse

Main Steel Frame H section steel Q235/Q355 steel
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20,Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
Horizontal brace Φ25, Steel Q235, processed and painted
Column brance Φ25, Steel Q235, processed and painted
Tie rod Φ114*4, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C180*75*20*2.5,Steel Q235, galvanized and painted
Roof panel Sandwich panel or corrugated steel sheet
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.5mm steel sheet profile trimming
Gutter 0.5mm thick sheet steel profile or galvanized sheet
Down pie Φ150PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
Wall Sandwich panel or corrugated steel plate
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Ventilation Ventilation ball
Doors & windows Rolling door/sliding door PVC/alu/steel/window

Prefab Two Story Steel Structure Warehouse For Feed Mill Industry
