Customized Animal Livestock Feed Pellet Machine 2T/H 1.5 - 12mm Pellet Size
Customized Animal Livestock Feed Pellet Machine 2T/H 1.5 - 12mm Pellet Size
Customized Animal Livestock Feed Pellet Machine 2T/H 1.5 - 12mm Pellet Size
Customized Animal Livestock Feed Pellet Machine 2T/H 1.5 - 12mm Pellet Size
Customized Animal Livestock Feed Pellet Machine 2T/H 1.5 - 12mm Pellet Size
Customized Animal Livestock Feed Pellet Machine 2T/H 1.5 - 12mm Pellet Size
Specifications
Brand Name :
Strongwin
Model Number :
SZLH250
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets per Months
Delivery Time :
3-7 Working days
Packaging Details :
Wooden Case
Machine name :
2T/H Customized Animal Livestock Pullet Feed Pellet Production Machine
Capacity :
1.5-2.5t/h
Raw materials :
soybean,maize,corn, grain,sorghum
Application :
For Making Animal Livestock Pullet Feed
Pellet Size :
1.5-12mm
Voltage :
220v,380v,or Customized
Diameter of ring die :
Φ250mm
Speed of ring die(r/min) :
300rpm
Motor :
Siemens Motor
Bearing :
SKF Bearing
Description

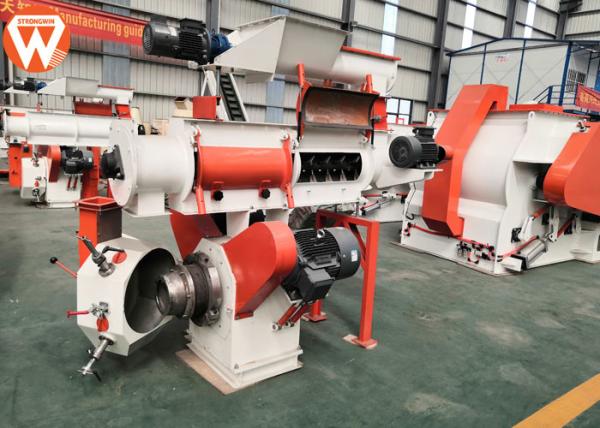

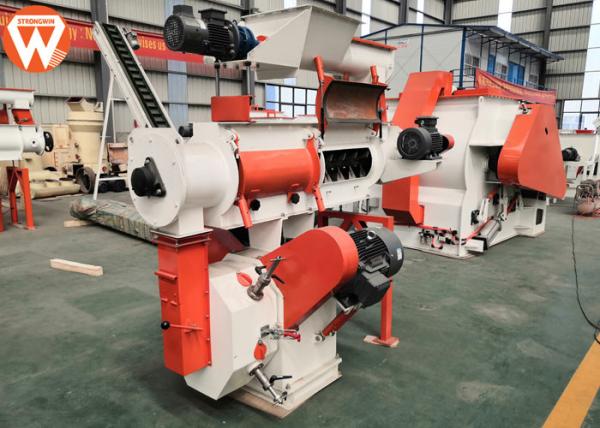

2T/H Customized Animal Livestock Pullet Feed Pellet Production Machine

Brief Introduction of Feed Pellet Production Machine

1. Belt Transmission type szlh250 feed pellet production machine

2. Die roller fixed with stainless steel knife pelletizing device

3. This pellet machine die roller is suitable for making high quality livestock and poultry, pig,

dog, chicken feeds and other materials in feed pelleting.

4.Capacity is 1.5-2.5t/h

SZLH250 Feed Pellet Production Machine Advantages

1. Low maintenance cost, safety and stability of transmission, flexible transmission, little vibration, smooth granular, suitable for ordinary livestock and poultry feed production;
2. Granulating machine base by the national standard steel plate welding, surface sandblasting anti-corrosion treatment, long life;
3. The spindle is equipped with overload protection device, feeding the safe and stable;
4. Equipped with two sets of knife components ; equipped with safety interlock device of the machine back for protect the pellet mill;
5.With the standard Siemens motor and selectable force feeding equipment

Technical Parameters

Items SZLH250
Production Capacity 1.5-2.5t/h
Power of Main Motor 22kw
Power of Feeding Screw Motor 0.75 KW
Power of conditioner Motor 1.5 KW
Diameter of ring die Φ250mm
Speed of ring die(r/min) 300rpm
Speed of feeding screw 12-120rpm
Speed of stirrer
Pellet specification φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm
Amount of roller 2
Diameter of roller Φ110mm
Shaping rate of pellet ≥ 95%
Pulverization rate of pellet ≤12%
Stability of pellet in the water ≥20min
Noise (dB(A)) ≤85dB(A)
Working temperature of ring die ≤85℃
Working pressure of steam 0.3Mpa
Steam consumption(t/h) 0.05
Temperature of steam(℃) 130-150℃
Shape dimension 2250*1430*2040mm
Machine weight
Voltage 3phase 380V,50Hz Can be customized)
Control cabinet Included
