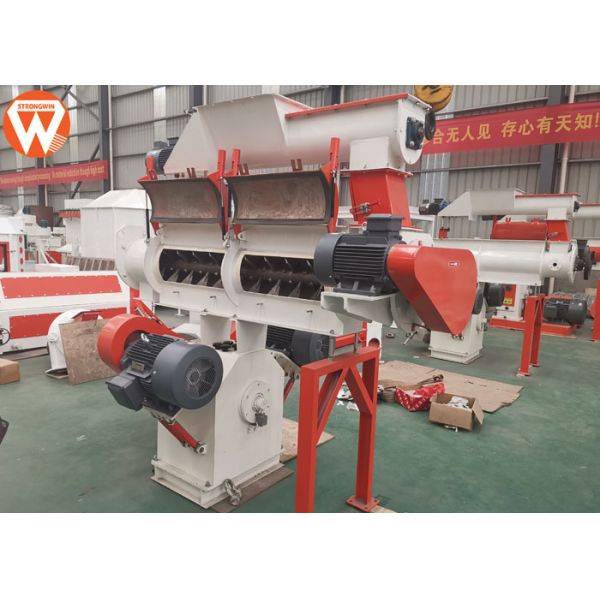

SZLH250 Small Poultry Feed Mill Machinery Animal Feed Pellet Mill Equipment
SZLH250 Small Poultry Feed Mill Machinery Animal Feed Pellet Mill Equipment
SZLH250 Small Poultry Feed Mill Machinery Animal Feed Pellet Mill Equipment
SZLH250 Small Poultry Feed Mill Machinery Animal Feed Pellet Mill Equipment
SZLH250 Small Poultry Feed Mill Machinery Animal Feed Pellet Mill Equipment
SZLH250 Small Poultry Feed Mill Machinery Animal Feed Pellet Mill Equipment
Specifications
Brand Name :
Strongwin
Model Number :
SZLH250
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000sets per Year
Delivery Time :
3-7 Working days
Packaging Details :
Wooden Case
Machine type :
Ring die feed pellet machine
Name :
Poultry Feed Processing Machines
Capacity :
1.5-2.5t/h
Pellet mould :
250mm
Pellet size :
0.7-12mm
Application :
Kinds of poultry animals
Description

SZLH250 Poultry Feed Processing Machines Animal Feed Pellet Mill Equipment

Advantages of Poultry Feed Processing Machines

1.America Elliot Erwitt belt pulley, America Jason efficiency wide V-belt.
2.The feeder is full stainless steel, the gap of spiral blade should be controled at about 5mm, to ensure the feeding no residue
3.The conditioner is stainless steel, 304 stainless steel main shaft, 304 stainless steel cast-type blade, convenient disassembly and assembly, long life, black bearing cover design, big door with handle door cover, easy cleaning, practical. Paddle are screwed on not welded, so the angle is adjustable, to ensure no residue.
4.With safety guard iron remover between the variable frequency feeder and conditioner, which can effectively remove the iron to protect the conditoner, ring die and roller.
5.Assembly:special workers team to assemble, experienced and zero error.
6.Capacity: Through testing, with corn as material, without steam, with alloy steel ring die the capacity can up to 1.5t/h, with stainless steel ring die the capacity can up to 2-3t/h, with steam,the effect is much better.

Technical parameters of Poultry Feed Processing Machines

Items Technical Parameter (SZLH250)
Production Capacity 1.5-2.5t/h
Power of Main Motor 380V 50Hz 3 Phase 22 KW (Can be customized)
Power of Feeding Screw Motor 0.75 KW
Power of Conditioner 1.5 KW
Inner Diameter of ring die Φ250mm
Efficient width of ring die 80mm
Speed of ring die 300rpm
Speed of feeding screw 12-120rpm
Speed of Conditioner 350rpm
Pellet specification φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm
Amount of roller 2
Diameter of Roller Φ110mm
Pellet Ratio of Briquetting ≥ 95%
Percentage of powdered Pellet ≤12%
Stability of pellet in the water ≥20min
Noise ≤85dB(A)
Working temperature of ring die ≤85℃
Working pressure of steam 0.3Mpa
Steam consumption 50kg/H
Temperature of steam 130-150℃
Packing Size (length×width×height) 2450*1550*2200mm
Machine Size 2250*1430*2040mm
Net/Gross Weight 1150KG/1445kg

SZLH250 Small Poultry Feed Mill Machinery Animal Feed Pellet Mill Equipment
