300kw 5T/H Livestock Pig Pellet Production Plant 10mm Screening
300kw 5T/H Livestock Pig Pellet Production Plant 10mm Screening
300kw 5T/H Livestock Pig Pellet Production Plant 10mm Screening
300kw 5T/H Livestock Pig Pellet Production Plant 10mm Screening
300kw 5T/H Livestock Pig Pellet Production Plant 10mm Screening
300kw 5T/H Livestock Pig Pellet Production Plant 10mm Screening
Specifications
Brand Name :
Strongwin
Model Number :
5t/h PIG FEED LINE
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per year
Delivery Time :
15-30 working days after deposit
Packaging Details :
Wooden Case or In Container
Name :
Livestock Pig Feed Pellet Line Installation In Dominica
Capacity :
5T/H
Final pellet :
2-10mm
Main machine Power :
300kw
Main machine :
crusher,mixer,pellet,cooler,screener machine
Motor :
Siemens
Description

5 T/H Livestock Pig Feed Pellet Line Installation In Dominica

Turnkey projects for Customers( Engineers design and Installation, Steel structure workshop and silos)

Livestock Pig Feed Pellet Line processing craft( this is brief craft)


Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing

The Animal pig feed line has the difference formula according to the growth of stages . All the formula has the full nutrition and the suitable proportion . It is good for animal growth and intensive animal husbandry industry.

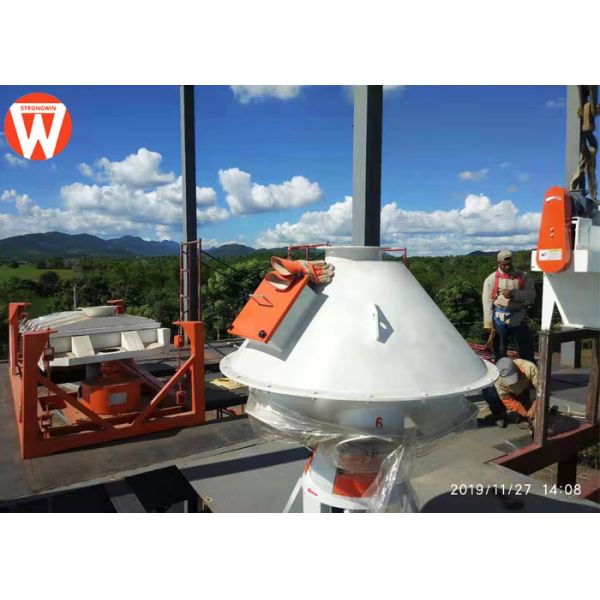

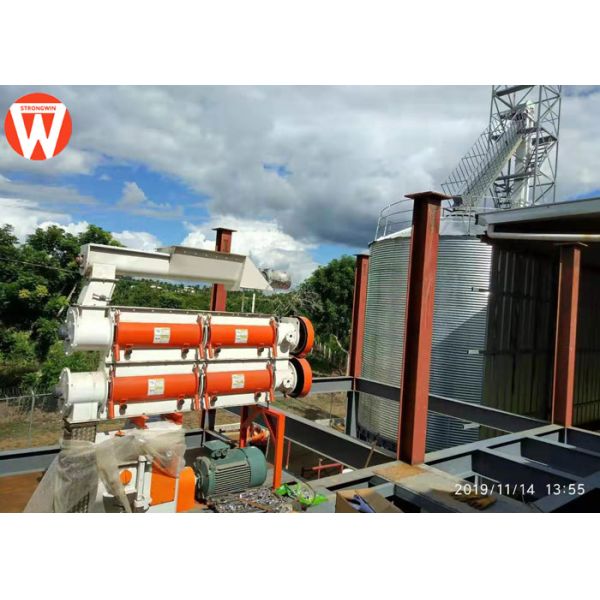

This is Strongwin manufacture feed pellet line installation in South America.

300kw 5T/H Livestock Pig Pellet Production Plant 10mm Screening

Technical Parameters of livestock pig feed line

Item Name Type Qty Power (KW)
Part 1. Raw material receiving& crushing system
1 Grass crusher FSP500B-22 1 22
1-103 Impulse Filter TBGM20 1
1-105 Bucket Elevator TDTG36/23 1 4
1-106 Cylinder Filtering Sieve TCQY63 1 0.75
1-107 Additive Blender TCXT20 1
1-110 Impeller speed regulating Feeder SWLY60 1 1.1
1-111 Crusher SFSP66*60 1 55
1-114 Impulse Filter TBLMa24 1
1-116 Wind-shielding Screw conveyor TLSB20 1 2.2
Part 2. Mixing System
2-202 Bucket Elevator TDTG36/23 1 4
2-203 Powder Screener SCQZ60 1 5.5
2-207 Feeder for additive 1
2-208 Mixer SLHS1.0 1 11
2-210 Scraper Conveyor TGSU20 1 3
Part 3. pelleting system
3-308 Pellet Mill SZLH350 1 57.95
3-310 Cooler SKLN3 1 1.5
Part 4. Packing system
4-401 Bucket elevator TDTG36/18 1 3
4-402 Rotary Screener SFJH80*2d 1 2.2
4-409 Auto Packing Scale 10-50KG 1 1.5
4-410 Stitch conveyor 1 1.5
Part 5. Auxiliary Equipment System
5-506 Steam Supplying System 1
5-507 Oil adding System 1 2.2
5-508 Oil Adding Tube 1
5-509 Calabash Crane 1 3

300kw 5T/H Livestock Pig Pellet Production Plant 10mm Screening
