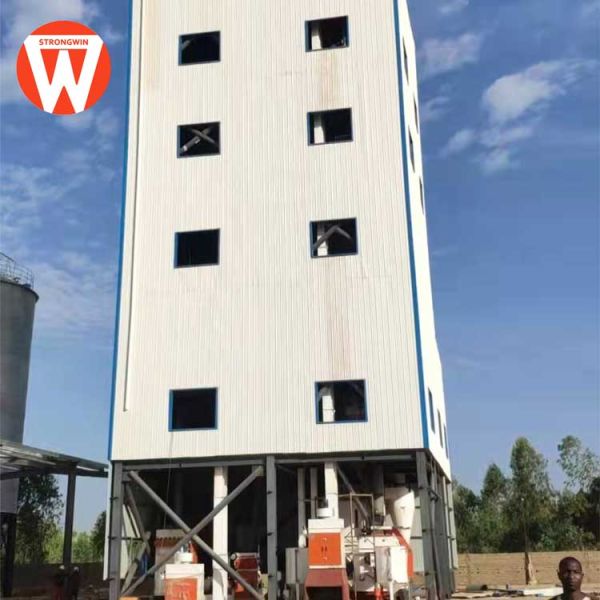

SZLH420 Livestock Feed Pellet Production Line 10T/H With Steel Structure
SZLH420 Livestock Feed Pellet Production Line 10T/H With Steel Structure
Specifications
Brand Name :
Strongwin
Model Number :
10t/h feed mill line
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per year
Delivery Time :
16-30 working days after deposit
Packaging Details :
Wooden Case or In Container
Machine name :
Livestock Feed Mill Production Line With Steel Structure
Yield :
10T/H
Bearing :
SKF
Motor :
Siemens
Total Power :
550kw
Pellet size :
0.9-10mm
Main machine :
crusher,mixer,pellet,crumbler,cooler,screener machine
Service :
Factory, With Engineers design
Description

SZLH420 Livestock Feed Mill Production Line With Steel Structure

Description of Livestock Feed Mill Production Line

Strongwin manufacture livestock feed mill production line, can according to Customers' need, The capacity from 1t per hour to 30t per hour. This type is SZLH420 10t/h automatic feed production line, with steel structure and silos.

Process of Livestock Feed Mill Production Line


Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing

This feed production line Can make feed pellets for kinds of animals.

Technical Parameters of Livestock Feed Mill Production Line

10 T/H Automatic Feed Pellet Production Line
No. Product name Model Power(kw)
1. material receiving section
102 pulse dust collector TBLFa.18
105 granule material clean sieve SCY80 0.75
106 permanent magnetic TXCT25
108 powder cleaner SCQZ80 11
109 permanent magnetic TXCT25
2. material grinding section
206 Impeller feeder SYLW3 1.5
207 series tear-circle hammer mill SDH-ZW50C 132
210 seal screw conveyor SWLL25 6
3. batching and mixing section
313 double shaft high efficient mixer SSHJ.2 18.5
314 scrapper conveyor TGSU25 3
315 Bucket elevator TDTG48.28 5.5
316 powder material clean sieve SCQZ75×65×1 40 7.5
317 permanent magnetic drum TXCT30
4. pelleting section
408 Pellet machine SZLH420 110
410 counter-current cooler SKLN6 1.5
410-1 crusher SSLG20×170 15
415 classic sieve SFJH125 3
5. packing section
501 Finished product bin
506 automatic packing scale SDBY-P
507 seal conveyor machine TFKB40 3
509 pulse dust collector TBLFa.24
510 seal machinery 0.75
6.auxiliary system
601 Air compressor 22
603 liquid adding machine SYTV32 3
604 liquid adding pipeline
606 boiler system

SZLH420 Livestock Feed Pellet Production Line 10T/H With Steel Structure
