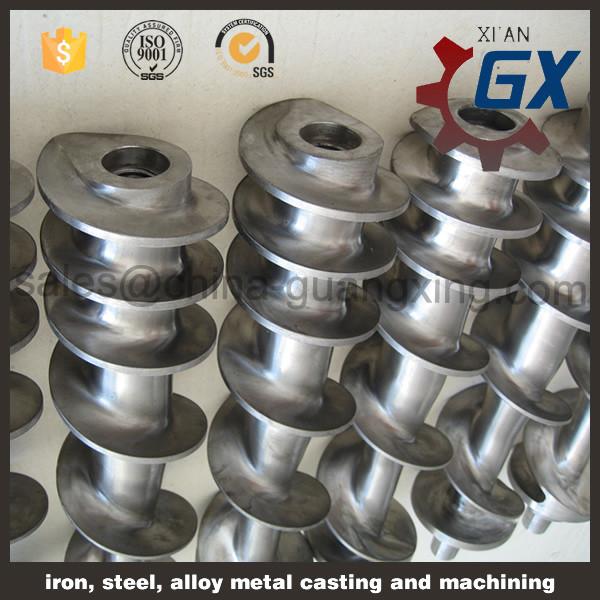

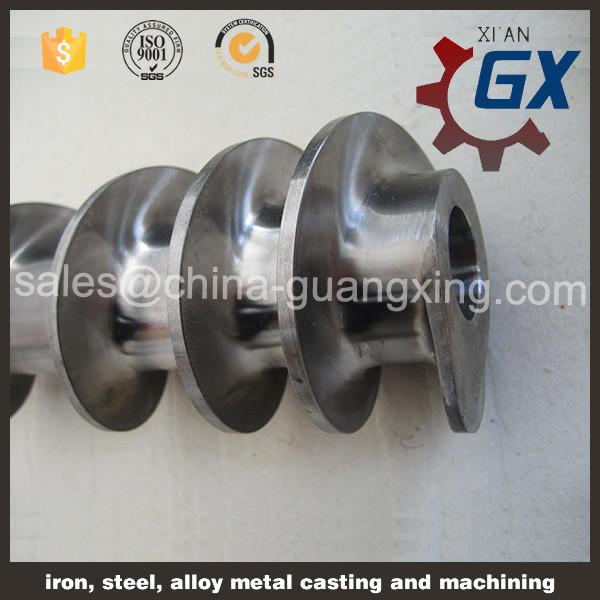

single screw and barrel for plastic blowing machine/plastic screw barrel extrusion
single screw and barrel for plastic blowing machine/plastic screw barrel extrusion
single screw and barrel for plastic blowing machine/plastic screw barrel extrusion
single screw and barrel for plastic blowing machine/plastic screw barrel extrusion
single screw and barrel for plastic blowing machine/plastic screw barrel extrusion
single screw and barrel for plastic blowing machine/plastic screw barrel extrusion
Specifications
Place of Origin :
China,shannxi
Brand Name :
plastic screw barrel extrusion
Certification :
ISO9001
Model Number :
plastic screw barrel extrusion
Product name :
plastic screw barrel extrusion
MOQ :
100mm
Price :
1-10
Packaging Details :
plastic screw barrel extrusion packing in Wooden Pallet,Plywood Pallet ,Steel P
Delivery Time :
Withi the 20 days receiving the order of plastic screw barrel extrusion
Payment Terms :
T/T
Supply Ability :
1000 piece every week
Plastic Processed :
PVC
Base material :
38CrMoAlA or 40Cr
Depth of Nitrated Layer :
0.5-0.8mm
Bimetallic Screw Process :
Spray Welding
Maximum screw length :
10000mm
Screw type :
Planet screw/Planetary screw
Description

single screw and barrel for plastic blowing machine/plastic screw barrel extrusion

Planetary screw extruder is composed of central shaft, planetary shaft, rolling stuff barrel, case, heating and cooling parts, rozzel, and so on.

The structure uses model system, and has good flexibility.

GX series of planetary screw extruder mainly are used for manufacturing thermal sesitivity materials hard and soft PVC and also for ABS, TPO, TPU, and the mixture of filler polyalkene and bond.

The product specification


single screw and barrel for plastic blowing machine/plastic screw barrel extrusion

Diameter

Φ70mm-Φ190mm

Design

Screw structure and compression

ratio can be designed according to

different products & different

clamping force requirement. We

can select&design the matching

screw barrel to meet your requires.

Materials

38CrMoAlA

(JIS SACM645)

SKD61

GH113

Application

All kinds plastic & rubber and All

kinds of glass fiber,the PPA, PPS,

PA6T, LCP, electric wood powder,

magnetic powder ,iron powder

and other special engineering

plastics .

Nitride Case Depth

0.5mm-0.8mm

Technology

1.Longer time Gas Nitriding

treatment

2.special anti-wear & abrasion

alloy(bimetallic)

3.tungsten carbide

4.cobalt base alloy

5.stainless steel

6.Gh113 nickel based alloy

Nitride Hardness

960-1060HV

Packing

Wrapped up by film in wooden

Nitride Brittleness

≤Grade One

Payment Term

T/T , L/C

Surface Roughness

Ra0.4um

Delivery Term

25 working days

Screw Straightness

0.015mm

Port Departure

Shanghai/Ningbo

Alloy Hardness

HRC58-70

Min. Order

1 set

Alloy Depth

1.5mm-3.5mm

Guarantee

Common Nitrided:2.5-4years

Bimetallic: much longer lifetime.

Advantages of single screw and barrel for plastic blowing machine/plastic screw barrel extrusion :

1.Advanced Nitriding Technology
2.Anti-corrosion and Wear-resisting Duplex Alloy Spraying Technoloy

3.We use special alloy powders being sprayed and welded on the screw's ridge,

and use different alloy and welding methods for the screw of different functions.

Advantages of single screw and barrel for plastic blowing machine/plastic screw barrel extrusion :

Our bimetallic planet screw barrel for extrusion machine can ensure the well performance and low energy consumption of extruder machine. We insist

on the principle of "quality first, honest to customers, the quickest service for

customers” to improving us, our goal is to satisfy our customers.

Especially application:

Rubber,various high glass fiber
