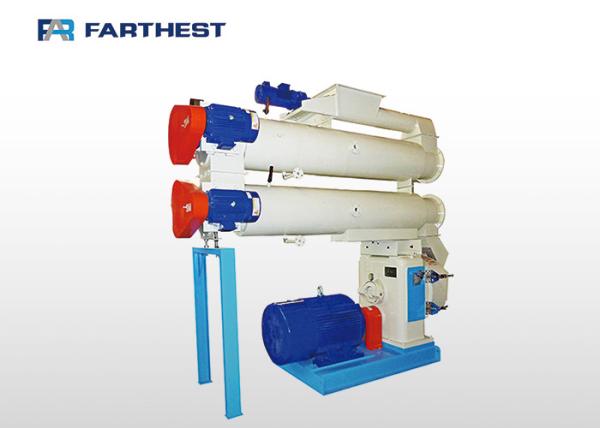

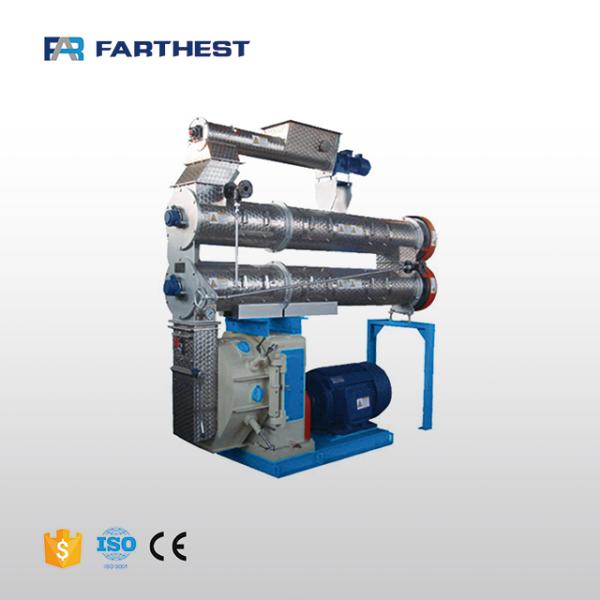

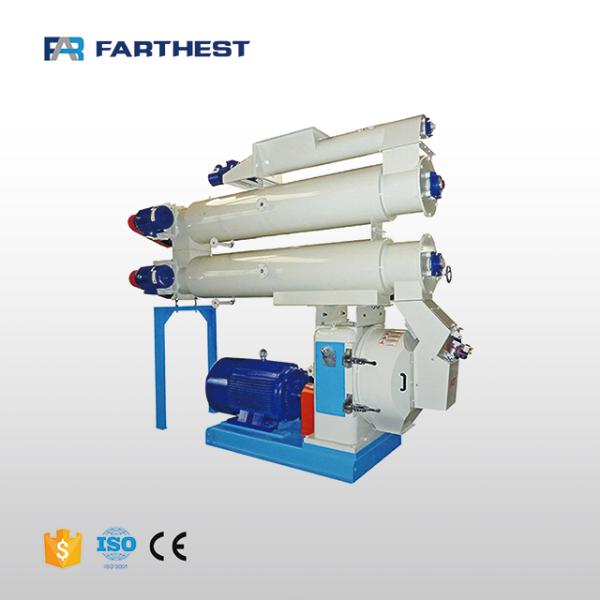

Tilapia And Koi Fish Farming 14ton per Hour Feed Granulation Machine
Tilapia And Koi Fish Farming 14ton per Hour Feed Granulation Machine
Tilapia And Koi Fish Farming 14ton per Hour Feed Granulation Machine
Tilapia And Koi Fish Farming 14ton per Hour Feed Granulation Machine
Tilapia And Koi Fish Farming 14ton per Hour Feed Granulation Machine
Tilapia And Koi Fish Farming 14ton per Hour Feed Granulation Machine
Specifications
Brand Name :
FAR
Model Number :
SZLH400(420)b2 pellet making machine
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
iron pallet
Production Name :
pellet making machine
Motor :
Siemens
Output :
3-14tph
Pellet Size :
2-18mm
Warranty :
1 year
Material :
Steel
Weight :
1500kg
Bearing :
SKF
Description

Product Description

Features of Fish Feed Pellet Making Machine


1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC;
6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;
7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use.

Main Technical Parameters of Pellet Making Machine

Parameters
Model

Output
(t/h)

Main Power
(kw)

Power Of
Conditioner(kw)

Power Of Feeder
(kw)

ID Of Die
(mm)

Pellet Size
(mm)

SZLH400b2

3-12

75/90

5.5×2

1.5

Φ400

Φ2-18

SZLH420b2

3-14

90/110

5.5×2

1.5

Φ420

Φ2-18

We are manufacturing various pellet mill and complete project, such as high quality fish feed pellet mill, aqua feed pellet machine, shrimp pellet machine, chicken feed pellet machine, cattle feed pellet machine, crab feed pellet mill and so on.

Details

Tilapia And Koi Fish Farming 14ton per Hour Feed Granulation Machine
Tilapia And Koi Fish Farming 14ton per Hour Feed Granulation Machine
