160 Kw CPM Model Animal Feed Pellet Production Line 415V Processing Machine
160 Kw CPM Model Animal Feed Pellet Production Line 415V Processing Machine
160 Kw CPM Model Animal Feed Pellet Production Line 415V Processing Machine
160 Kw CPM Model Animal Feed Pellet Production Line 415V Processing Machine
Specifications
Brand Name :
Shenghong
Model Number :
SZLH508
Certification :
BV, SGS, ISO9001, CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
USD 6999-19999
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
within 20 days
Packaging Details :
20GP, 40GP, 40HQ
Product name :
Animal feed production machine
Voltage :
400V/380V/415V/600V
Feature :
High Efficiency Low Cost
Usage :
animal feed pellet machine
Color :
Clients' Requirement
Dimension(l*w*h) :
Actual
Power :
132/160 kw
Capacity :
10-18t/h
Description

Manufacturing Animal Feed Production Line Animal Feed Processing Machine

Feature:

Establishing a complete feed pellet production line can improve work efficiency, reduce feed costs, and increase profits for users. It can not only suppress cattle and sheep feed, but also process feed pellets such as pigs, chickens and ducks. When making feed pellets by yourself, different materials can be added according to the different needs of animals to ensure the safety of the feed and the overall nutrition of the animals. Feeding pelleted feed can increase animal feed intake, avoid animals being picky eaters, and facilitate digestion and absorption. It can shorten the growth period of animals, facilitate transportation, and can be stored for half a year.

Parameter:

Pellet Mill Model
Main power
Capacity t/h
Ring die inner Diameter
Pellet size mm
SZLH250
22KW
0.8-1.5
250mm
2-8
SZLH320
37KW
1-4
320mm
2-8
SZLH350
55KW
2-8
350mm
2-18
SZLH420
110KW
3-12
420mm
2-10
SZLH508
160KW
4-20
508mm
6-12

160 Kw CPM Model Animal Feed Pellet Production Line 415V Processing Machine

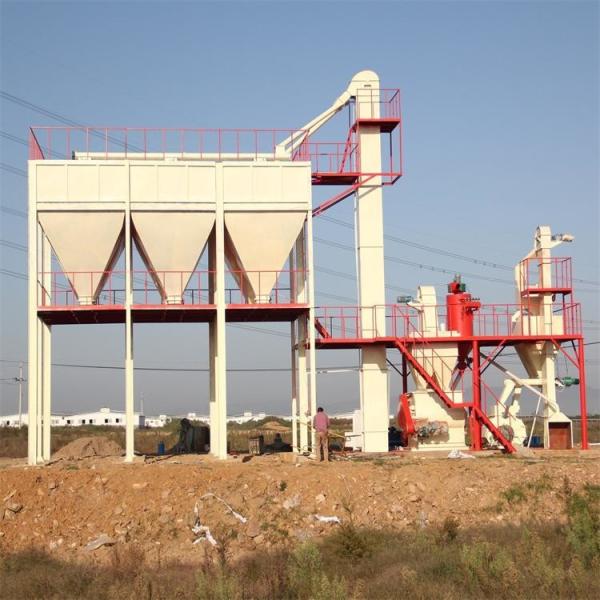

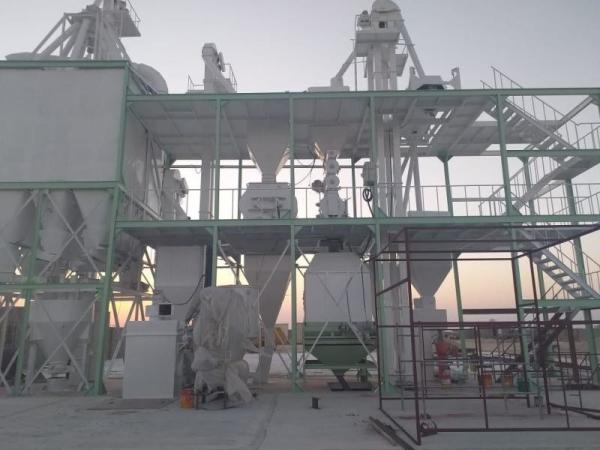

Feed production line process:

1. Pulverizer - Pulverizer is an important equipment for raw material crushing and processing. The shredder can grind the raw material to the desired size. If you manage a large feed pelleting plant, a drop mill is ideal.

2. Mixer - Mixing is one of the processing methods in the animal feed pellet production line. Proper mixing will increase the uniformity of the diet and improve feed quality. We offer two types of mixers: twin shaft mixers for granular materials and spiral ribbon mixers for powder materials. They are all equipped with an atomizing spray system that adds the required liquid to improve the quality of the feed pellets.

3. Pellet machine - Feed pellet machine is the key equipment of feed pellet production line. CPM model, gear drive, ring die design, widely used in large-volume feed pellet production

4. Cooler - After the pellets come out of the pellet machine, the temperature is high and the moisture is large, and a cooler is required for cooling.

5. Pelletizers - Because different animals such as poultry, cattle and pigs require different feed pellet sizes. So some large feed pellets need to be crushed into small pellets. Feed pellet crusher is a suitable equipment for feed pellet crushing.

6. Rotary grading screen is used for sieving and grading feed particles. After this process, you can obtain qualified feed pellets without powder.

7. Packing - For packing storage, transportation and sale, the automatic packing machine can weigh and pack feed pellets with high precision.

160 Kw CPM Model Animal Feed Pellet Production Line 415V Processing Machine
